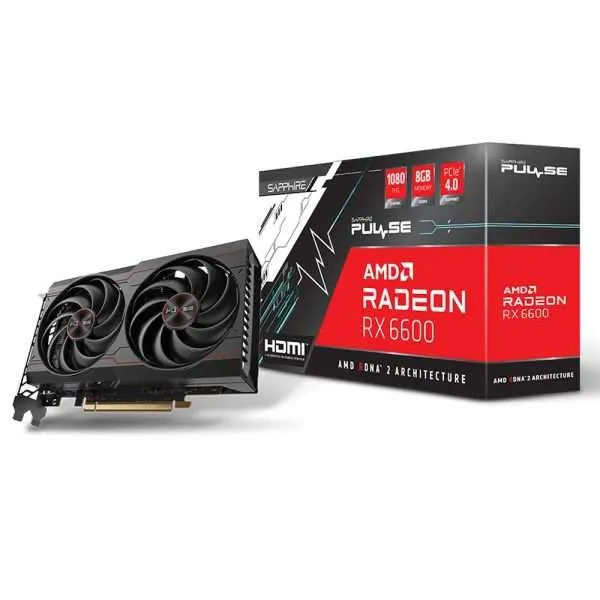

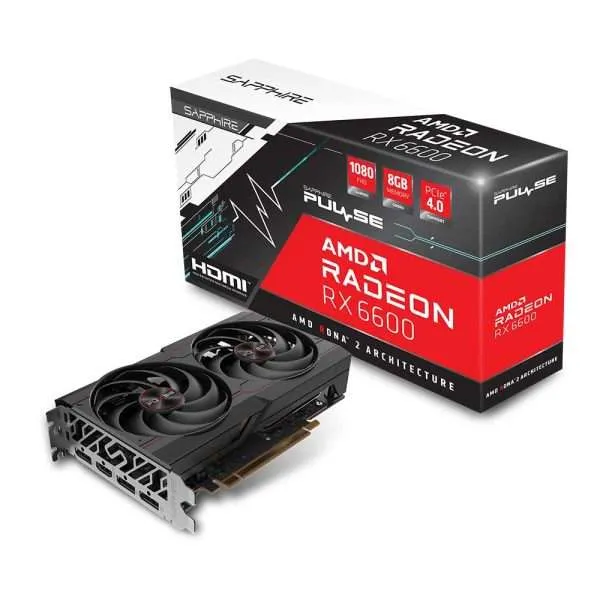

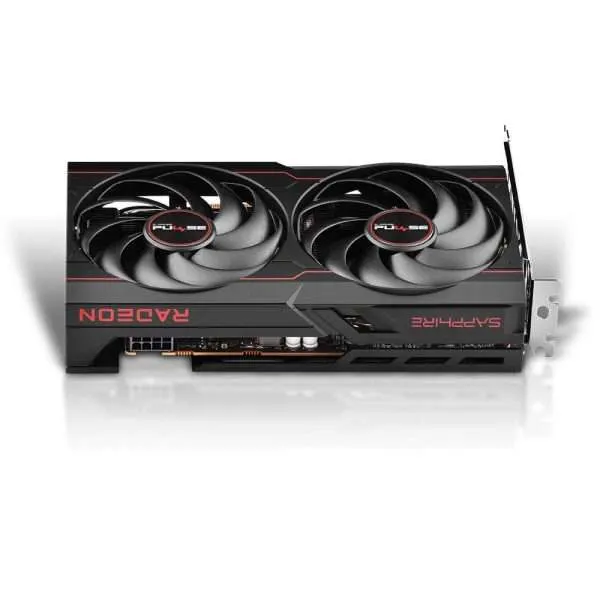

Sapphire Pulse AMD Radeon RX 6600 Graphics Card | 8GB GDDR6 Video Memory
8GB GDDR6 GPU Memory
1792 Stream Processors
Maximum 4 Displays Support
1 x HDMI, 3 x DisplayPort
PCI-Express 4.0 x 8 GPU Interface
Highlights: Sapphire Pulse AMD Radeon RX 6600
GPU Memory Size 8GB GDDR6
GPU Memory Type GDDR6
GPU Interface PCI-Express 4.0 x 8
Stream Processors 1792
Maximum Display Support 4
About Sapphire Pulse AMD Radeon RX 6600
The Sapphire Pulse AMD Radeon RX 6600 runs on powerful Dual-X cooling technology with Intelligent Fan Control to keep temperatures low and fan noise low. Refined PCB design provides stable, reliable, and stable performance, which efficiently reduces PCB temperature and component signal noise.
FEATURES:
Fuse Safety
To protect your card, fuse protection is built into the external PCI-E power connector circuit to protect SAPPHIRE card components.
Dual-X Cooling
SAPPHIRE۪s acclaimed Dual-X cooling is powered by two large but silent fans and a sophisticated radiator design. The new form of hybrid fan blades means more airflow and higher heatsink coverage with less noise than standard cooling designs.
Wise fan control
Fan speed is intelligently controlled to keep the GPU, memory, PWM IC, and other components at temperatures as low as possible to balance performance and fan noise.
Precise Fan Control
Standard industrial fans can vary up to 10% in the fan rotation cycle (RPM). Fan IC Control on SAPPHIRE graphics cards reduces the differential to about 3%. This ensures up to 70% accuracy improvement while ensuring the cooling and noise performance of each graphics card is up to scratch.
Engine Clock
Sapphire Pulse AMD Radeon RX 6600 features up to 2491 MHz Boost clock and 2044 MHz Game clock.
The boost clock is the maximum frequency that the GPU can achieve while running bursty workloads. Boost clock attainability, frequency, and stability will vary based on a variety of factors, including but not limited to thermal conditions and application and workload variations.
Game Clock is the expected GPU clock when running typical gaming applications, with a typical TGP(Total Graphics Power) set. Actual individual game clock results may vary.
TECHNICAL SPECIFICATIONS
GPU_ AMD Radeon RX 6600 Graphics Card
Chipset_ AMD
Architecture_ AMD RDNA 2
Memory Size_ 8GB GDDR6
Memory Type_ GDDR6
Memory Clock_ 14 Gbps Effective
Stream Processors_ 1792
Vega_ 7nm GPU
Engine Clock_ Boost Clock: Up to 2491 MHz, Game Clock: Up to 2044 MHz
Infinity Cache_ 32MB
Ray Accelerators_ 28
Displays_ Maximum 4 Displays
Output_ 1x HDMI, 3x DisplayPort
Resolution_ HDMI: 7680 4320, DisplayPort1.4: 7680 4320
Interface_ PCI-Express 4.0 x 8
BIOS Support_ UEFI
Game Index_ 1080P
Sapphire Features_ -Premium Digital Power Design
-Fuse Protection
-Dual-X Cooling Technology
-Intelligent Fan Control
-Precision Fan Control
-Metal Backplate
-Two-Ball Bearing Fans
-TriXX Supported
-TriXX Boost
AMD Features_ -AMD RDNA 2 Gaming Architecture
-DirectX 12 Ultimate
-Hardware Raytracing
-Smart Access Memory
-Infinity Cache
-7nm GPU
-PCI Express 4.0 Support
-AMD FreeSync Technology
-DisplayPort 1.4 with DSC
-HDMI
-Video Streaming up to 8K
-Radeon VR Ready Premium
-AMD FidelityFX
-Radeon Image Sharpening
-Radeon Anti-Lag
-Radeon Software
-Game Driver Optimizations
Cooling_ Dual Fans
Form Factor_ 2 slot, ATX
Power Consumption_ 140W (Board Power)
OS_ Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement_ -Minimum 500 Watt Power Supply
-1 x 8-pin Power Connector.
-PCI Express-based PC is required with one X16 lane graphics slot available on the motherboard.
-Minimum 8GB of system memory. 16GB is recommended.
Dimension (L x W x H)_ 193 x 120.05 x 40.05 mm
Specification: Sapphire Pulse AMD Radeon RX 6600 Graphics Card | 8GB GDDR6 Video Memory
Product Type_
Graphics Card
FORM FACTOR_
ATX , E-ATX , MICRO-ATX
FANS_
2
Brand_
Sapphire
COLOR_
BLACK
CHIPSET_
AMD
PROCESSOR SERIES_
RX
CAPACITY_
8 GB
BIT RATE_
128
MEMORY TYPE_
GDDR6
LIGHTING_
NONE
WARRANTY_
2 Years Warranty
