SAPPHIRE PULSE RADEON RX 6700 XT GAMING 12GB GDDR6 GRAPHICS CARD 11306-02-20G

GPU: Boost Clock: Up to 2581MHz
Memory: 12GB/192 bit DDR6. 16 Gbps Effective
Stream Processors: 2560
RDNA 2 Architecture
Ray Accelerator: 40
Specification
GPU : AMD Radeon RX 6700 XT Graphics Card
7nm GPU
AMD RDNA 2 Architecture
Engine Clock : Boost Clock: Up to 2581 MHz
Game Clock: Up to 2424 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors : 2560
Infinity Cache : 96MB
Ray Accelerators : 40
Memory Size/Bus : 12GB GDDR6
Memory Clock : 16 Gbps Effective
Displays : Maximum 4 Displays
Resolution : HDMI : 7680ÌÑ4320
DisplayPort1.4: 7680ÌÑ4320

Interface : PCI-Express 4.0
Output : 1x HDMI
3x DisplayPort

BIOS Support : Dual UEFI
Game Index : 4K

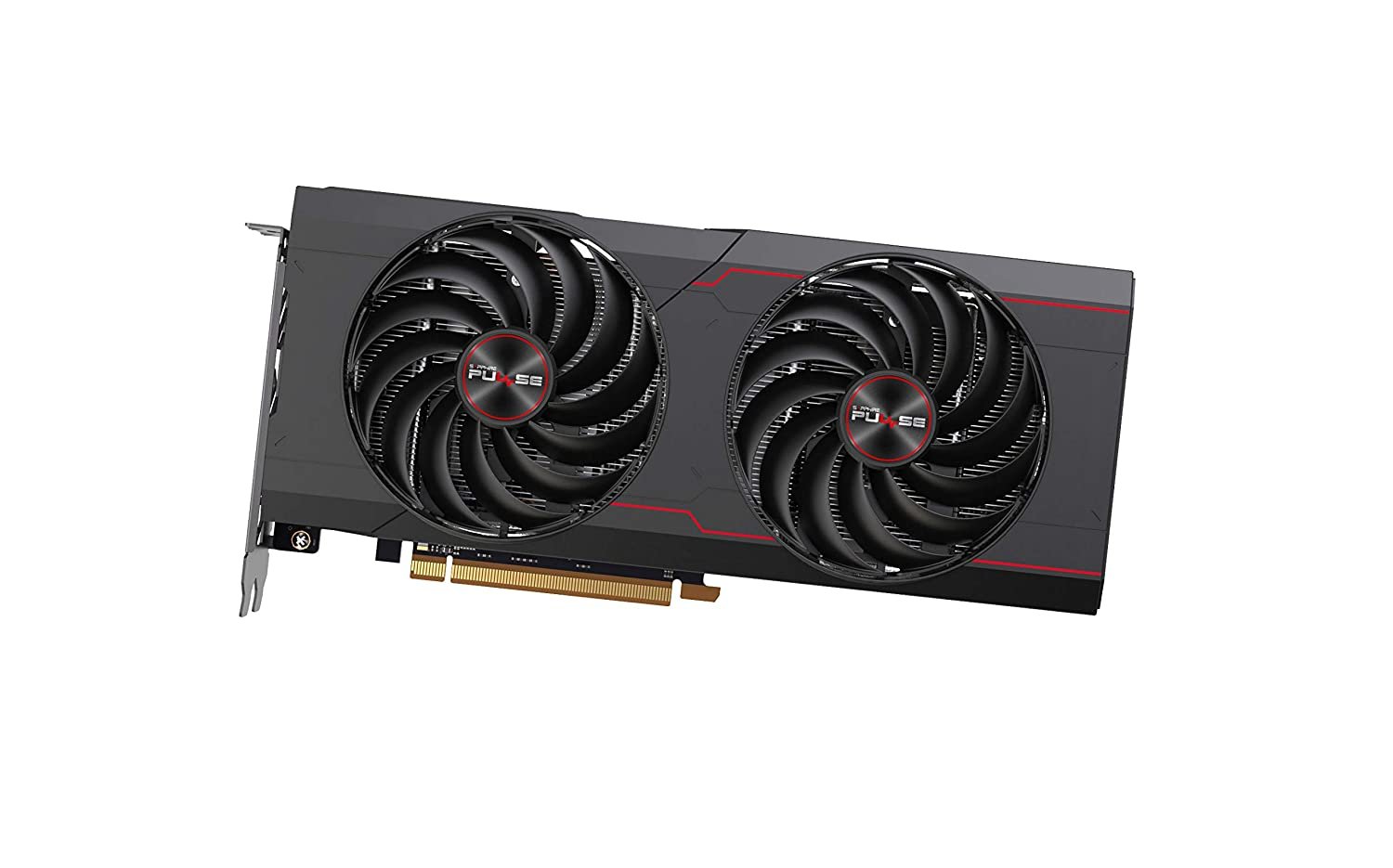

Cooling : Dual Fans
Form Factor : 2.2 slot, ATX
Dimension: 260(L)X 119.85(W)X 49(H)mm
Power Consumption : 230W (Board Power)
OS : Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing

Recommended reading:Sapphire NITRO+ AMD Radeon RX 6750 XT 12GB GDDR6 Graphic Card 11318-01-20G

System Requirement : Minimum 650 Watt Power Supply
1 x 8-pin + 1 x 6-pin Power Connector.

PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.

Sapphire Features : Premium Digital Power Design
Fuse Protection

Dual-X Cooling Technology

Recommended reading:SAPPHIRE PULSE RX 5600 XT BE 6GB Graphics Card

Intelligent Fan Control

Precision Fan Control

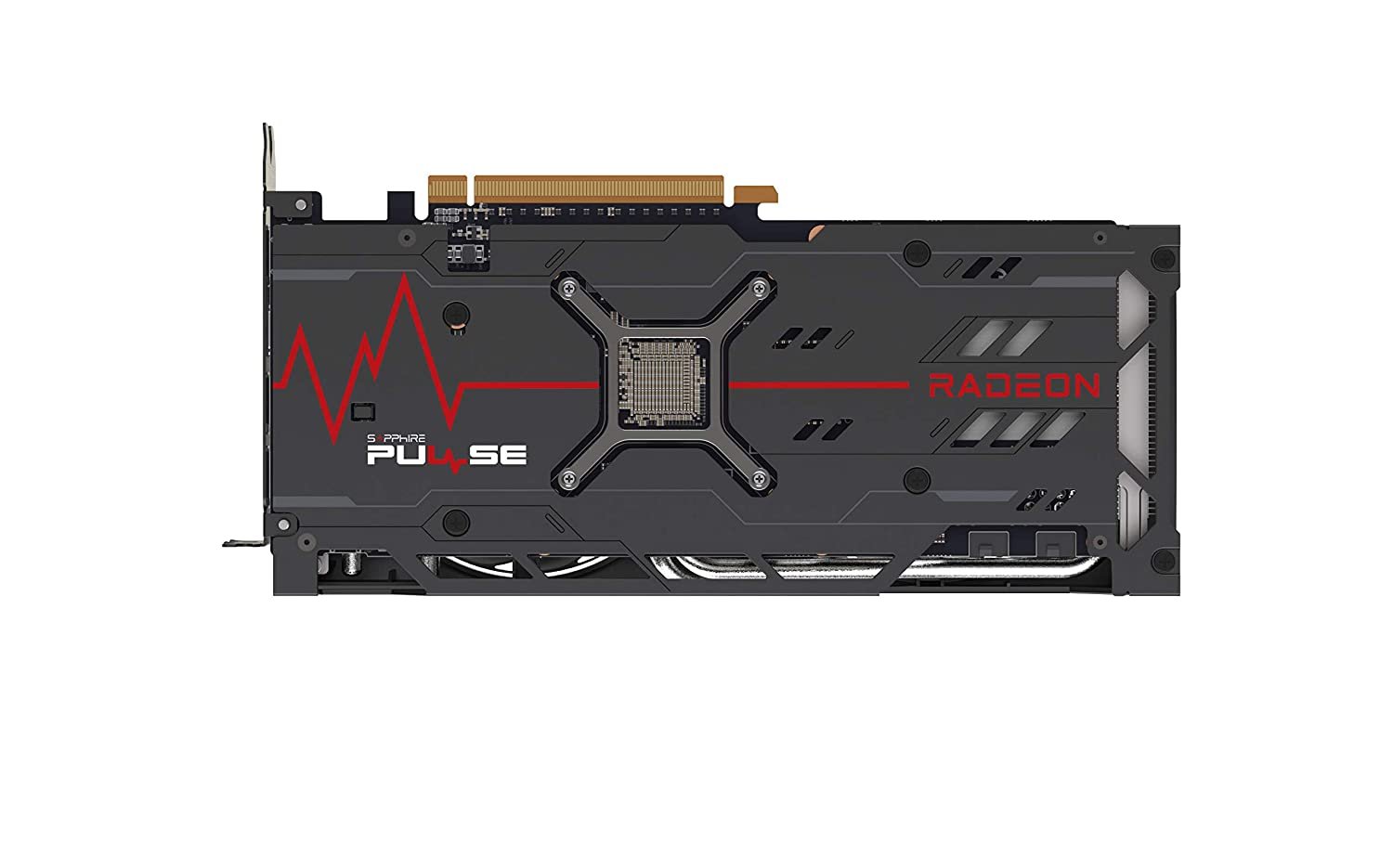

Metal Backplate

Two-Ball Bearing Fans

Integrated Cooling Module

Recommended reading:Sapphire Rx 580 Pulse OC Radeon 8GB Graphics Card

TriXX Supported

TriXX Boost

AMD Features : AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate

Hardware Raytracing

Smart Access Memory

Recommended reading:Sapphire Graphics Card Pulse Radeon RX 580 8GB GDDR5 (11265-05)

Infinity Cache

7nm GPU

PCI Express 4.0 Support

AMD FreeSync Technology

DisplayPort 1.4 with DSC

Recommended reading:Sapphire Pulse AMD Radeon RX 5500 XT 8GB GDDR6 Graphics Card

HDMI 2.1 VRR

Video Streaming up to 8K

Radeon VR Ready Premium

AMD FidelityFX

Radeon Image Sharpening

Radeon Anti-Lag

Radeon Software

Game Driver Optimizations

Memory size : 12 GB
Memory Type : GDDR6
Series : Radeon RX 6700 XT
Chipset : AMD Radeon
