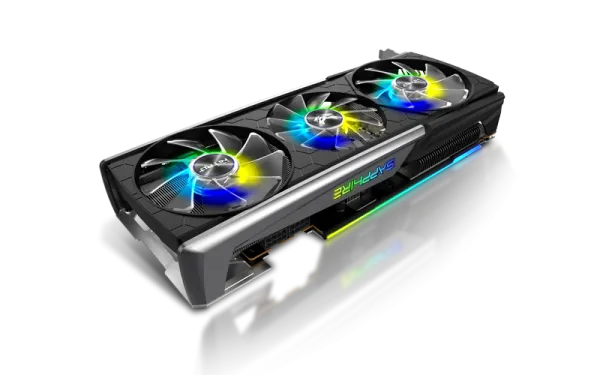

Sapphire Nitro+ Radeon RX 5700 XT 8GB Graphics Card

In stock

Brand
Sapphire

CHIPSET
AMD

BIT RATE
256

CAPACITY
8 GB

FANS
3

MEMORY TYPE
GDDR6

PROCESSOR SERIES
RX

WARRANTY
3 Years Warranty

Product Type
Graphics Card

FORM FACTOR
ATX , E-ATX

Compare
SKU: IGO-30102022-1064 Category:

Sapphire Nitro+ Radeon RX 5700 XT 8GB, GDDR6 Dual HDMI / Dual DP OC (UEFI) Special Edition Graphics Card (11293-05-40G)
PRODUCT DESCRIPTION
The SAPPHIRE NITRO+ RX 5700 XT Special Edition graphics card delivers a maximized 4K gaming experience for the PC Gamer alongside the incredible beauty of three ARGB fans addressable to deliver 16.8 million-colour RGB illumination. Packed with SAPPHIRE̢‰s renowned high-end quality components, including our award̢‰winning Tri-X cooling solution, Black Diamond Chokes and Shroud enhancements to strengthen the PCB; the NITRO + RX 5700 XT Special Edition delivers the stunning performance boost of approximately 6% with an overclocked memory of 14.4Gbps, and robust stability every gamer demands. Features including Intelligent Fan Control and advanced Tri-X Fan Cooling create supreme heat dissipation, minimum noise and maximum reliability. AMP up the aesthetic design of your rig with elegant styling and complete ARGB Lighting which can be customized with SAPPHIRE̢‰s TriXX software. Boost the performance of your favorite games to get a winning advantage over your friends with the new TriXX Boost feature. Get NITRO Charged with the SAPPHIRE NITRO+ RX 5700 XT Special Edition!

FEATURES
Explore all the incredible features that come with the SAPPHIRE NITRO+ RX 5700 XT Special Edition Graphics Card.

COOLTECH
Our superior cooling technology to keep your temperatures low at a high framerate
Intelligent Fan Control
Precision Fan Control
Robust VRM Cooling
Robust Memory Cooling
Tri-X Cooling Technology

DNA
Our core parts that elevate the life of our products through quality, robustness & reliability
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Black Diamond Choke
Dual BIOS

PLUS
All of the extra features that make our SAPPHIRE Boards so special and unique
TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
Fan Glow ARGB support
NITRO Glow
ARGB Audio Visualization
Fan Check
Free Flow
VR Friendly

TECHNICAL SPECIFICATION
GPU
Radeon̢_RX 5700 Graphics
2nd Gen 7nm GPU
RDNA Architecture

Engine Clock
Boost Clock: Up to 2035MHz
Game Clock: Up to 1965 MHz
Base Clock: 1840 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
2560

Memory Size/Bus
8GB/256 bit GDDR6

Memory Clock
14.4 Gbps Effective

Displays
Maximum 4 Displays

Resolution

HDMI̢_: 4096ĉ2160@60Hz
DisplayPort1.4: 5120ĉ2880@60Hz
Interface
PCI-Express 4.0

Output

2x HDMI
2x DisplayPort
BIOS Support
Dual UEFI

API

Vulkan
OpenGL4.6
OpenCL 2.0
DirectX12
Shader Model 6.4
Game Index
Extreme 1440P

Sapphire Features

TriXX Supported
TriXX Boost
Software BIOS Switch
Max Boost
Power Design
Optional Fan Glow ARGB support
NITRO Glow
ARGB Audio Visualization
Fan Check
Free Flow
VR Friendly
Intelligent Fan Control
Precision fan control
Robust VRM Cooling
Robust Memory Cooling
Tri-X Cooling Technology
Backplate (Tough Metal Backplate)
Two-Ball Bearing
Fan Quick Connect
Fuse Protection
Black Diamond Choke
Dual BIOS
AMD Features

RDNA Architecture
2nd Gen 7nm GPU
GDDR6 Memory
Power Efficiency
PCI Express 4.0 Support
Video Streaming up to 8K
Display Port 1.4 (HBR3) / DSC
Radeon̢_Software
Radeon̢_Boost
Radeon̢_Image Sharpening
Radeon̢_Anti-Lag
AMD FidelityFx
Async Compute
Radeon̢_Rays Audio + True Audio Next
Radeon̢_FreeSync̢_2 HDR
Radeon̢_VR Ready Premium
Cooling

Tri-X Cooling
Triple Fan
Two-Ball Bearing
Form Factor
2.5 slot, ATX
Dimension: 306x 135 x 49 (mm)

Power Consumption
285W

OS

Linux, Windows10, Windows7
64bit operating system required
System Requirement

Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
2 x 8-pin Power Connector.
PCI Expressbased PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
WARRANTY
2 YEARS
