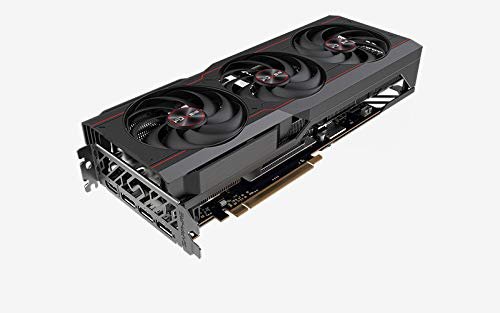

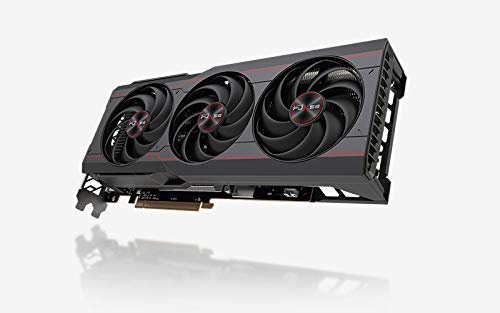

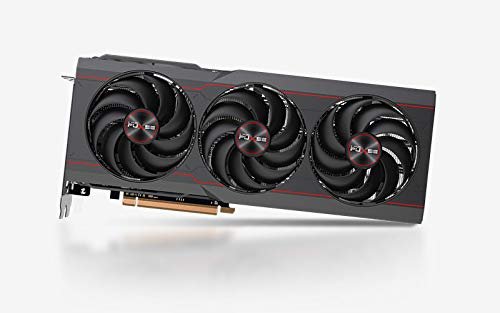

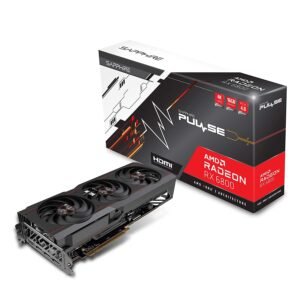

SAPPHIRE PULSE AMD RADEON RX 6800 16GB GDDR6 GRAPHICS CARD 11305-02-20G
16GB 256-Bit GDDR6
Boost Clock 2105 MHz
1 x HDMI 2.1 2 x DisplayPort 1.4
3840 Stream Processors
PCI Express 4.0 x16
SAPPHIRE PULSE AMD RADEON RX 6800 16GB GDDR6 GRAPHICS CARD 11305-02-20G
PERFORMANCE TO RULE YOUR GAME
Cyberpunk 2077
Star Wars: Squadrons
Watch Dogs: Legion
Assassin Creed Valhalla
DIRT 5
Marvel Avengers
4K PERFORMANCE
SAPPHIRE PULSE AMD Radeon RX 6800
The SAPPHIRE PULSE AMD Radeon RX 6800 yields robust 4K gaming performance at the optimal budget. Push your limits with high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD visionary RDNA2 architecture. SAPPHIRE renowned components like the dual ball bearing fans, fuse protection and dual BIOS ensure a quality and reliability. The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost builds a mix of incredible performance and stability with the PULSE AMD Radeon RX 6800. Take your gaming to the next level with the PULSE AMD Radeon RX 6800 as the beating heart of your PC!
THE ULTIMATE GAME CHANGER
Powerhouse Performance for 4K Gaming
Every game.
Every frame.
16GB 256-Bit GDDR6
Boost Clock 2105 MHz
1 x HDMI 2.1 2 x DisplayPort 1.4
3840 Stream Processors
PCI Express 4.0 x16
4K Visuals
4K gaming is now possible at smooth framerates and ultra-high settings, powered by up to 72 enhanced compute units, all new AMD Infinity Cache, and 16GB of GDDR6 memory. With a powerful blend of raytracing and rasterized effects, your 4K gaming experience is elevated to new levels of visual fidelity.
High Refresh Rate Gaming
Get competitive with ultra-high refresh rate gaming, with breakthrough AMD RDNA 2 architecture delivering the raw performance needed to display every frame.
AMD FidelityFX
Get pulled into the action with the latest AMD FidelityFX1 feature set, enabling ultimate visual quality and new levels of rich detail, with minimal performance overhead, freeing up your graphics card to power intense and visually stunning gaming experiences.
DirectX 12 Ultimate
DirectX 12 Ultimate takes games to a new level of realism with support for features such as real-time lighting, shadow, reflection realism with DXR raytracing, and variable rate shading.
Compute Units: 60
Game Clock: 1815 MHz
Boost Clock (up to): 2105 MHz
Infinity Cache: 128 MB
GDDR6 Memory: 16GB
Total Board Power: 250W
Specification :
GPU Radeon RX 6800 Graphics
7nm GPU
RDNA 2 Architecture
Engine Clock Boost Clock: Up to 2170 MHz
Game Clock: Up to 1950 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors 3840
Infinity Cache 128MB
Ray Accelerators 60
Memory Size/Bus 16GB GDDR6
Memory Clock 16 Gbps Effective
Displays Maximum 4 Displays
Resolution HDMI : 7680ÌÑ4320
DisplayPort1.4: 7680ÌÑ4320
Interface PCI-Express 4.0
Output 1x HDMI
3x DisplayPort
BIOS Support Dual UEFI
Game Index
4K
Sapphire Features Dual BIOS
Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

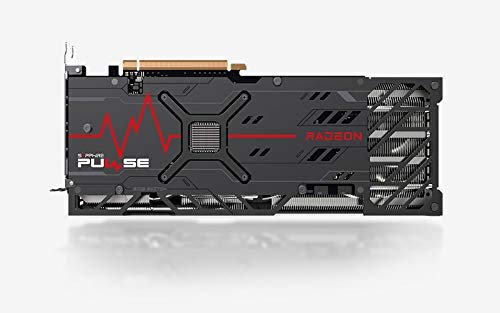

Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI 2.1 VRR
Video Streaming up to 8K
Radeon VR Ready Premium
AMD FidelityFX
Radeon Image Sharpening
Radeon Anti-Lag
Radeon Software
Game Driver Optimizations
High Performance 4K Gaming
Cooling 3 Fans
Form Factor 2.5 slot, ATX
Dimension: 303(L)X 127.3(W)X 53.8 (H)mm
Power Consumption 280W
OS Linux, Windows 7*, Windows 10, and Windows 8.1. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement Minimum 650 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
