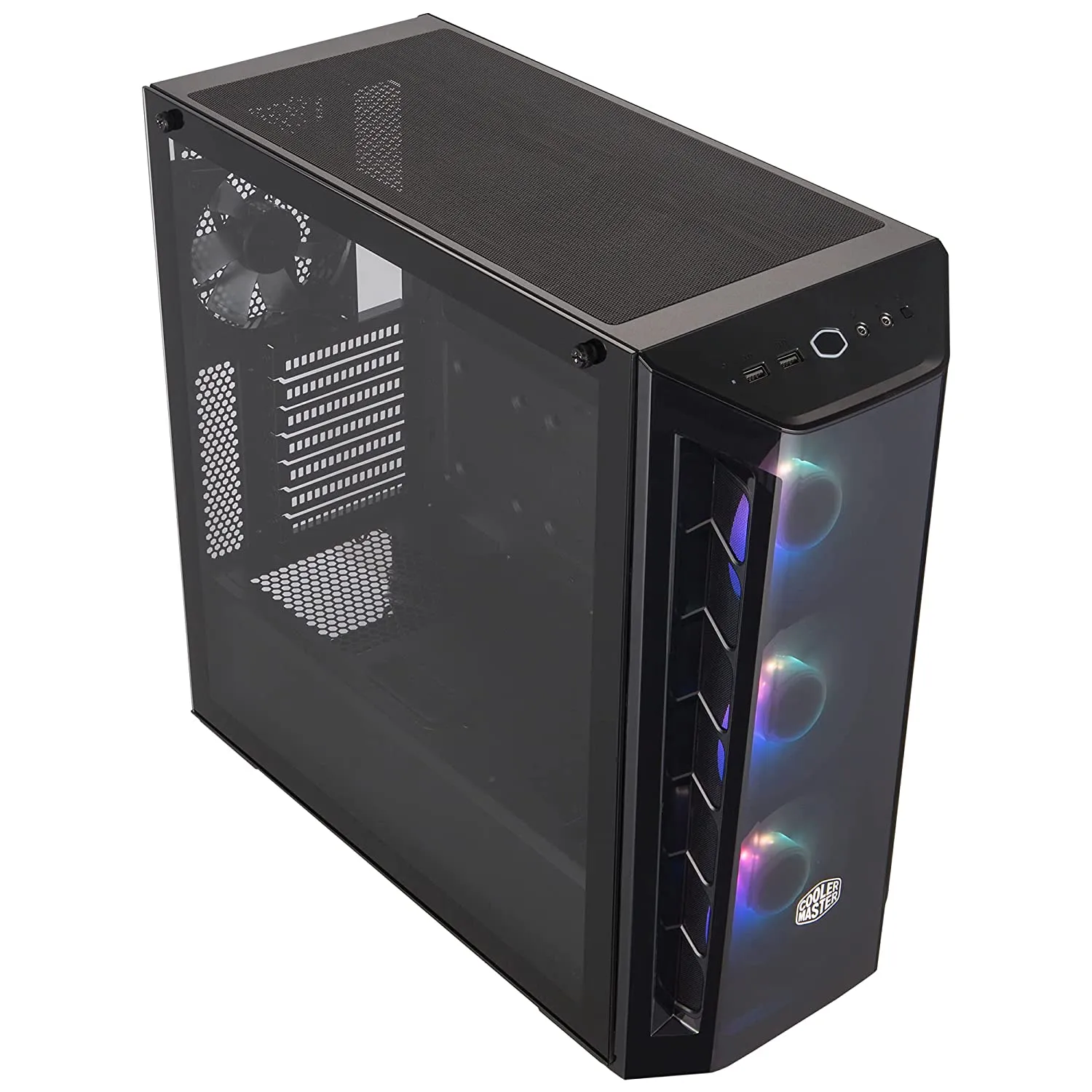

Cooler Master MasterBox MB520 RGB (ATX) Mid Tower Cabinet MCB-B520-KGNN-RGB
DarkMirror Front Panel
RGB LED Fans and Lighting Control
Performance Intakes
Edge-To-Edge Tempered Glass Side Panel
Support for a Total of 6 Fans and Water Cooling
Graphics Card Support Up to 410mm
Storage Trays and Full-Length PSU Shroud
Product Name MasterBox MB520 RGB
Model number MCB-B520-KGNN-RGB
Available Color Black
Materials Steel, Plastic, Tempered glass
Dimensions 496(L) x 218(W) x 468(H)mm
Motherboard Support ATX, Micro-ATX, Mini-ITX
Expansion Slots 7
5.25‰Û_ Drive Bays No
Combo 3.5‰Û_/2.5‰Û_ Drive Bays 2 (Max. 2)
SSD Drive Bays 4 (Max. 6)
I/O Panel USB 3.0 x 2, Audio In / Out
RGB Control RGB controller included
1 to3 RGB splitter cable included
Pre-installed Fan(s) Front: 120mm RGB LED fan x 3
Rear: 120mm black fan x 1
Fan Support Top: 120mm x 2 / 140mm x 2
Front: 120mm x 3 / 140mm x 2 (can only mount behind the front plate)
Rear: 120mm x 1
Radiator Support Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm
Rear: 120mm
Clearances CPU Cooler: 165mm / 6.49‰Û_
PSU: 180mm / 7.08‰Û_
Graphics card: 410mm / 16.10‰Û_
Cable Routing Behind MB Tray: 19-27mm / 0.74‰Û_-1.06‰Û_
Dust Filters Front, Bottom, Top
Power Supply Support Bottom Mount, ATX
