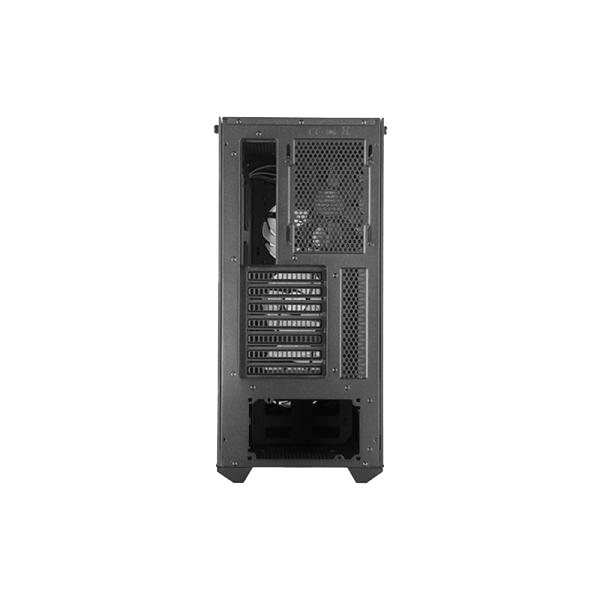

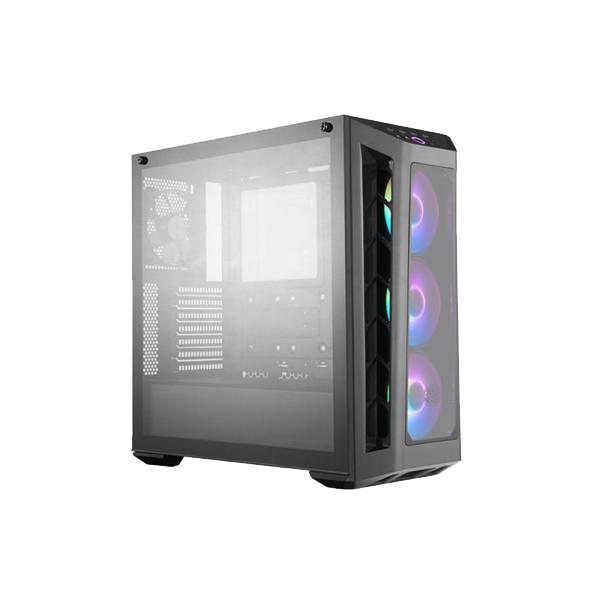

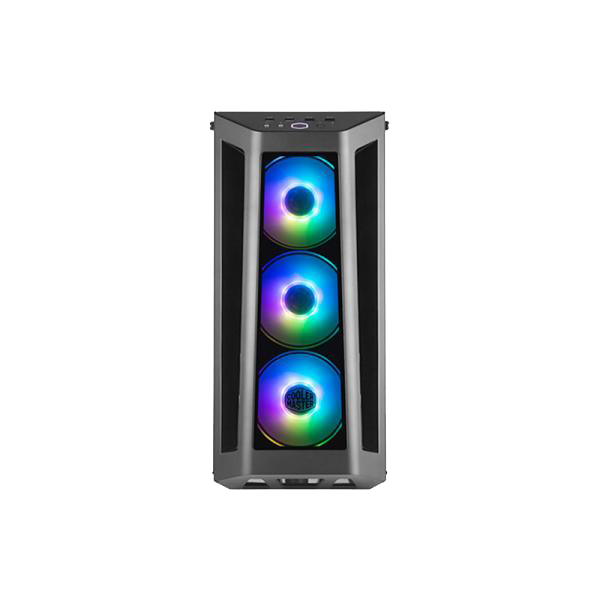

Cooler Master MasterBox MB530P ATX Mid Tower Cabinet MCB-B530P-KHNN-S01
Roll over image to zoom in
Click to open expanded view
3 Tempered Glass Panels
Addressable RGB Fans with Lighting Control
Support for a Total of 6 Fans and Water Cooling
Graphics Card Support Up to 410mm
Cable Cover and Routing Space
3 TEMPERED GLASS PANELS
The front and side panel offer a clear view of the front fans and system configuration, while the panel behind the motherboard is patterned tempered glass to hide the open side of the PSU.
Large intakes on each side of the front panel feed air to cool the interior.
ADDRESSABLE RGB LIGHTING
Sync the addressable RGB lighting on the power button and fans by connecting the ARGB cable from the I/O panel to the included 2 to 3 ARGB splitter. Certified compatible with: ASUS, Gigabyte, MSI, and ASRock motherboards for a comprehensive lighting system.
AN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don‰Ûªt have to compromise on performance.
CABLE COVER AND ROUTING SPACE
A PSU shroud, cable cover, and 18~25mm width of spac3 behind the motherboard provides options to keep systems clean; GFX cables can also be routed directly through the PSU shroud rubber grommet
MAIN COMPONENTS CLEARANCE
The MasterBox MB530P case supports CPU coolers up to a height of 165mm, graphics cards up to a length of 410mm, and power supplies up to a length of 180mm.
Product Name MasterBox MB530P
Model number MCB-B530P-KHNN-S01
Available Color Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 489 x 229 x 469mm
Motherboard Support ATX, Micro-ATX, Mini-ITX
Expansion Slots 7
5.25‰Û_ Drive Bays N/A
3.5‰Û_ Drive Bays 2
2.5‰Û_ Drive Bays 4
I/O Panel USB 3.0 x 2, USB2.0 x2,Audio In / Out, ARGB control button
ARGB Controller ARGB Controller included
ARGB Cable 2 to 3 ARGB Splitter cable included
Pre-installed Fan(s) Front: 120mm ARGB AB fans x 3 (9 blades fan 1200rpm)
Rear: 120mm Non-Led fan x 1 (7 blades fan 1200rpm)
Fan Support Front: 120mm x 3 / 140mm x 2
Top: 120mm x 2 / 140mm x 2
Rear: 120mm x 1
Radiator Support Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 240mm
Clearances CPU Cooler: 165mm / 6.49‰Û_
PSU: 180mm / 7.08‰Û_
Graphics card: 410mm / 16.14‰Û_
Cable Routing Behind M/B Tray space: 18-25mm
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
