Cooler Master MasterBox K501L ARGB Tempered Glass Side Panel MCB-K501L-KGNN-SR3
Angled Ventilation
Illuminated ARGB Fan & Power Button
Edge-to-Edge Tempered Glass Side Panel
Dual 360mm Radiator Support
Versatile Cooling Options
Versatile Component Support
ROOM FOR UPGRADES
Gaming is in the core of the new MasterBox K501L ARGB. Donning an illuminated fan against the angled front panel ventilation speaks to its competitive character. Support of gaming hardware like long graphics cards, plenty of storage, and liquid cooling take priority in the K501L ARGB while still leaving room for future upgrades.
Compatibility for high-performance hardware makes the K501L ARGB the essential start in building a monster rig, competitively priced to point the focus toward upgrades.
ANGLED VENTILATION
The aggressive, angled front panel ventilation dons sharp design elements and striking lines, signifying the K501L ARGB competitive character.
ILLUMINATED FAN & POWER BUTTON
Paired with lighting on the power button, an illuminated ARGB fan glows through the angled ventilation; a testament to its gamer core.
EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build through the 4mm tempered glass side panel.
DUAL 360MM RADIATOR SUPPORT
For enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

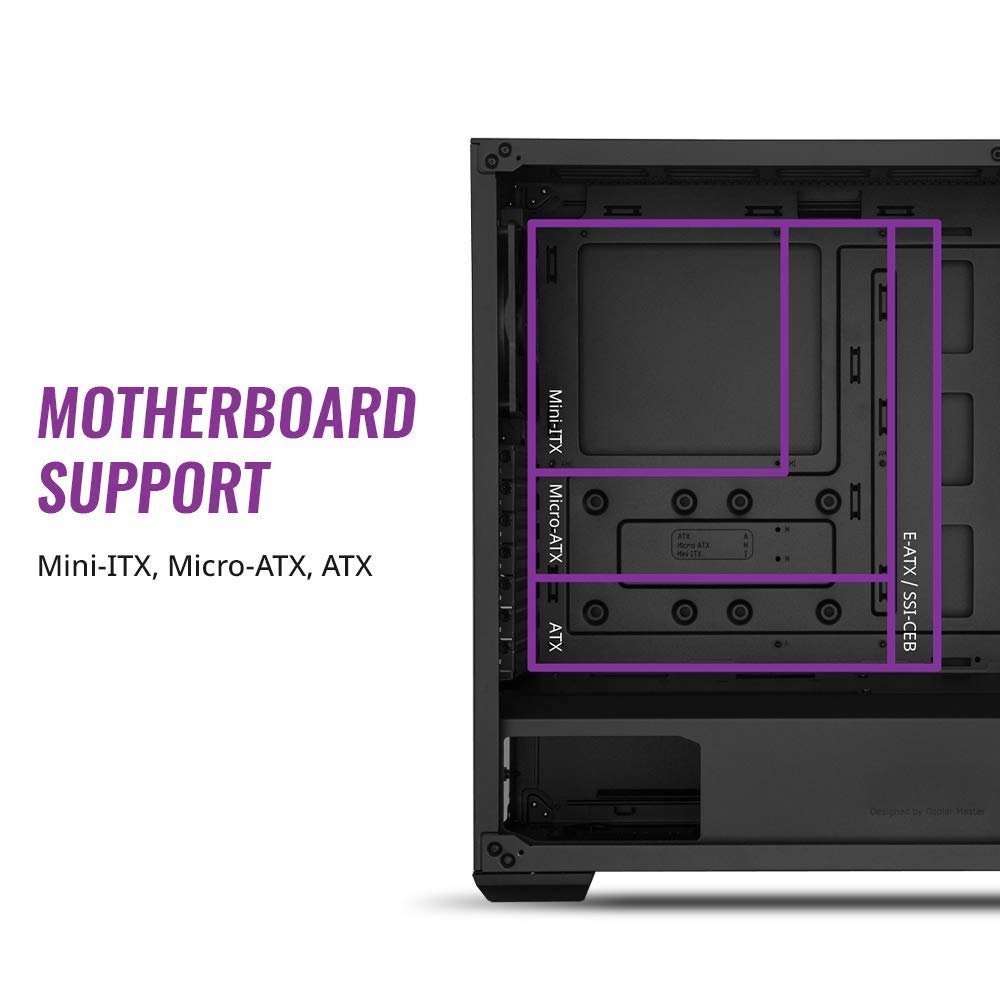

MOTHERBOARD SUPPORT
Mini-ITX, Micro-ATX, ATX
VERSATILE COMPONENT SUPPORT
Clearances of 410mm for the graphics card, 165mm for CPU coolers, and 180mm for PSUs offer room for powerful builds and future upgrades.
Specification :
MODEL NUMBER MCB-K501L-KGNN-SR3
AVAILABLE COLOR(S) Black
MATERIALS Steel, Plastic, Tempered Glass
DIMENSIONS (L X W X H) 496mm x 217mm x 469mm (incl. Protrusions), 428.7mm x 205mm x 458.5mm (excl. Protrusions)
VOLUME (EXLC. PROTRUSIONS) 40.3L
MOTHERBOARD SUPPORT Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12‰Û� x 10.7‰Û� motherboards)
EXPANSION SLOTS 7
5.25‰Û_ DRIVE BAYS 0
2.5‰Û_ / 3.5‰Û_ DRIVE BAYS (COMBO) 2
2.5‰Û_ DRIVE BAYS 4 (2+2 combo)
I/O PANEL 1x USB 3.0 Type-A, 1x USB 2.0, 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack
PRE-INSTALLED FANS TOP N/A
PRE-INSTALLED FANS FRONT 2x 120mm ARGB Fan
PRE-INSTALLED FANS REAR 1x 120mm
PRE-INSTALLED FANS BOTTOM N/A
FAN SUPPORT TOP 3x 120mm, 2x 140mm
FAN SUPPORT FRONT 3x 120mm, 2x 140mm
FAN SUPPORT REAR 1x 120mm
FAN SUPPORT BOTTOM N/A
RADIATOR SUPPORT TOP 120mm, 240mm, 360mm, (44mm max motherboard component height)
RADIATOR SUPPORT FRONT 120mm, 140mm, 240mm, 280mm, 360mm
RADIATOR SUPPORT REAR 120mm
RADIATOR SUPPORT BOTTOM N/A
CLEARANCE CPU COOLER 165mm
CLEARANCE PSU 180mm/7.08‰Û_, 295mm/11.61‰Û_ (w/ HDD cage removed)
CLEARANCE GFX 410mm/16.1‰Û_
CABLE ROUTING 19mm
DUST FILTERS Top, Front, Bottom
POWER SUPPLY SUPPORT Bottom mount, ATX
WARRANTY 2 years
SERIES MasterBox Series
SIZE Mid Tower
