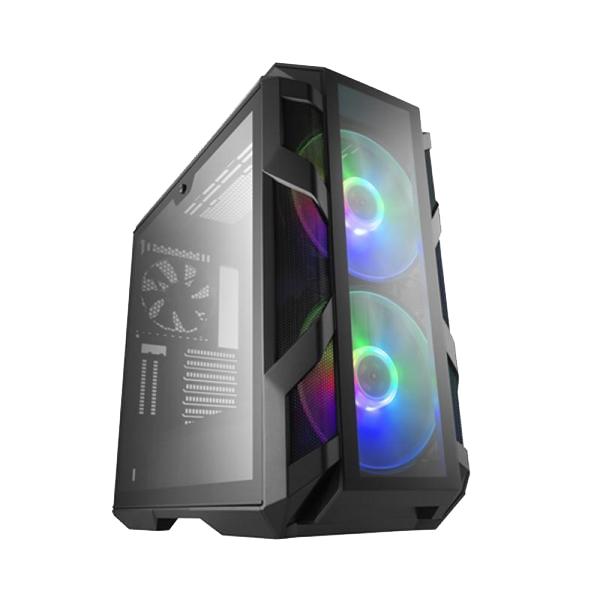

Cooler Master MasterCase H500M Mid Tower Case MCM-H500M-IHNN-S00

In stock

1. Interchangeable Front Panels
2. Addressable RGB Fans & Controller
3. Four Tempered Glass Panels
4. Adjustable Graphics Card Support Arm
5. Watercooling Support
6. Covers for Clean Building
7. Rich Connectivity

Compare
SKU: IGO-20221010-1639 Category:

Interchangeable Front Panels
Choose between the mesh front panel for optimized airflow or the glass option for a balance of aesthetics and performance with the included accessory.

Addressable RGB Fans
Move air stylishly and quietly with two 200mm Addressable RGB fans controlled by an included Addressable RGB controller.

Four Tempered Glass Panels
Edge-to-edge glass side panels on both sides, a glass top panel, and a glass front panel offer a clear and comprehensive system view.

Graphics Card Support Arm
Relieve the stress of weight and reinforce larger, longer graphics cards with an included adjustable graphics card support arm.

Watercooling Support
The front panel is compatible with up to 360mm radiators, including support for 200mm sized radiators.
The top bracket supports up to 360mm radiators along with 200mm fans.
A dedicated water pump bracket offers mounting options directly atop the PSU shroud.

Covers For Clean Building
A total of 9 covers take clean building to the next level with a PSU cut out cover that provides the option of showing off your PSU or leaving it out of sight.

1. Cable Management Cover
2. CPU Cut Out Cover
3. PSU Cable Cover
4. PSU Cut Out Cover
5. PSU Shroud with SSD Mounting Support
6. PSU Shroud with Waterpump Bracket
7. Cable Cover with SSD- and Reservoir Mounting Support
8. Clearance Cover for 200mm Radiator Support
9. Radiator Lid to Accommodate Thicker & Longer Radiators

Rich Connectivity
The I/O panel comes with a USB 3.1 (Gen 2) Type-C port, and four additional USB 3.0 ports. Audio-in and out with support for HD Audio.
The included addressable RGB controller manages the lighting of the system and can be connected to the reset switch.

1. USB 3.0 Port
2. USB 3.1 (Gen 2) Type-C Port
3. Audio In & Out
4. Reset Switch & Optional Addressable RGB Controller

Specification :

Product Name MasterCase H500M
Model Number MCM-H500M-IHNN-S00
Available Color Iron Grey
Materials Outlook: Steel Mesh, Glass
Body: Steel
Side panel: Tempered Glass
Dimensions (LxWxH) 544 x 248 x 546mm / 21.4 x 9.8 x 21.5 inch
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (support upto 12‰Û_ x 10.7‰Û_)
Expansion Slots 7 2 (Support vertical graphics card installation)
5.25‰Û_ Drive Bays 0
2.5‰Û_ / 3.5‰Û_ Drive Bays 2
2.5‰Û_ SSD Drive Bays 6
I/O Port USB 3.1 Type-C x 1
USB 3.0 Type-A x 4
Audio In & Out (supports HD Audio)
Pre-installed Fan(s) Front 200mm ARGB Fan x 2 (Speed: 800RPM / Connector: 3Pin ARGB 3pin)
Pre-installed Fan(s) Rear 140mm fan x 1 (Speed: 1200RPM / Connector: 3Pin)
Fan Support Top 120 fan x 3 or 140mm/200mm fan x 2
Fan Support Front 120/140mm fan x 3 or 200mm fan x 2
Fan Support Rear 120/140mm fan x 1
Liquid Cooling Support Top 120mm, 140mm, 240mm, 280mm, 360mm (maximum thickness clearance 43mm)
Liquid Cooling Support Front 120mm, 140mm, 200mm, 240mm, 280mm, 360mm (70mm clearance w/radiator lid & M.portremoved)
Liquid Cooling Support Rear 120mm, 140mm
Clearance CPU Cooler 190mm
Clearance Graphics Card 412mm
Clearance Power Supply 200mm
Power Supply Support Bottom Mount, ATX PS2
