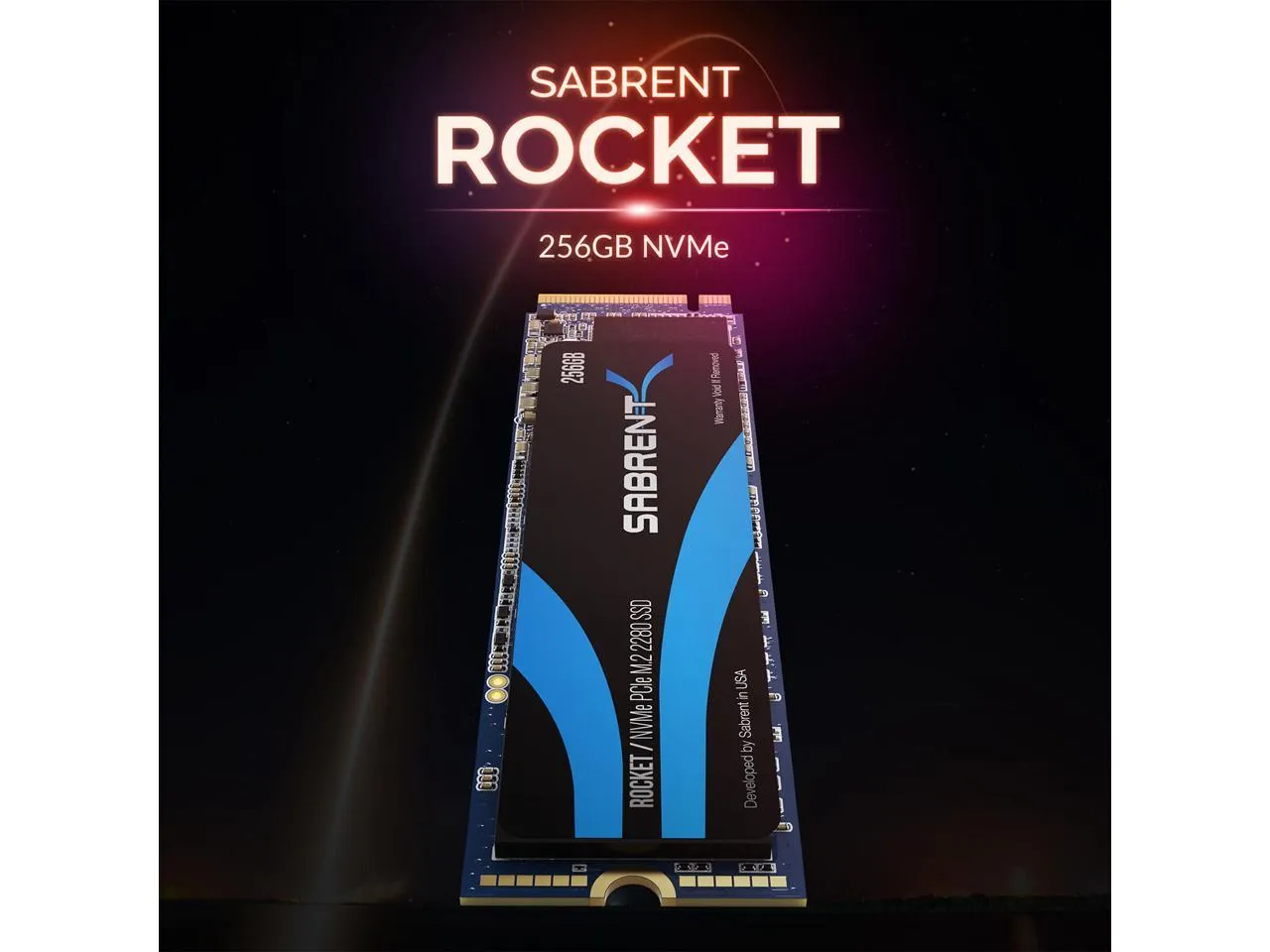

Sabrent 256GB ROCKET NVMe PCIe Gen3 x 4 M.2 2280 Internal SSD Solid State Drive SB-ROCKET-256

The Sabrent 256GB ROCKET NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-256) delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

Based on 3D TLC NAND Flash memory, its performance speeds can reach up to 3100 MB/s (read) and 1050 MB/s (write). Power consumption is much lower than traditional hard drives, making it the best embedded solution for new systems.

Features:

‰Û¢ M.2 PCIe Gen3 x 4 Interface.
‰Û¢ PCIe 3.1 Compliant / NVMe 1.3 Compliant.
‰Û¢ Power Management Support for APST / ASPM / L1.2.
‰Û¢ Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
‰Û¢ Advanced Wear Leveling, Bad Block Management, and Over-Provision.

Package contents:

Recommended reading:Sabrent 4TB Rocket Q4 NVMe PCIe Gen4 x 4 M.2 2280 Internal SSD with Heatsink SB-RKTQ4-HTSS-4TB

‰Û¢ 256GB NVMe PCIe M.2 2280 SSD.

Specification :

Model DB-ROCKET-256
Capacity 256GB
Interface PCIe Gen3x4
NAND BiCS3/BiCS4/B16
CTL E12/E12S
Certifications CE,FCC,BSMI,RoHS
Max Sequential Read 3100(MB/s)
Max Sequential Write 1050(MB/s)
Rndm4K QD32(IOPS)Read 167K
Rndm4K QD32(IOPS)Write 256K
Power Consumption R/W 5.1/3.1
Power Supply 3.3V
Form Factor M.2 2280
Height 2.35mm
Width 22mm
Length 80mm
Operating Temperature 0-70C
Storage Temperature -40-85C
MTBF 18,00,000
Shock Resistant 1500G
Data Correction LDPC
Warranty 5 Years
