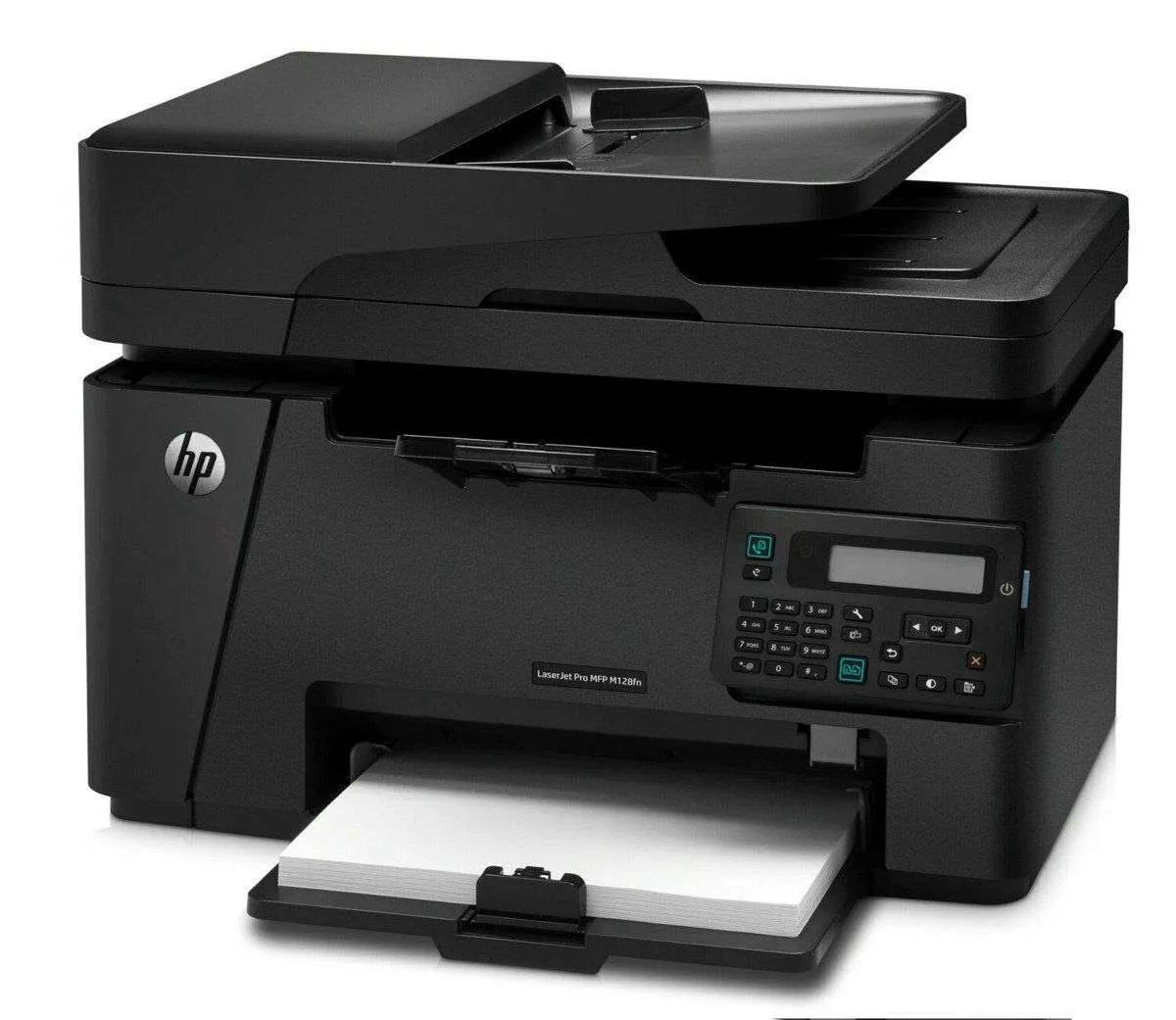

HP LaserJet Pro MFP M128fn/fw

Sku
Sku
CZ184A
Print
Print Speed, Black
21 – 30

Color Output
Black and white
Category

Product Type
Laser printers

Family Brand
LaserJet
Usage

Perfect For
Home
Features

Recommended reading:HP LaserJet Pro P1108

Functions
Print scan copy and fax
Connectivity And Communications
HP EPrint Capability
Yes
Ports
1 Hi-Speed USB 2.0; 1 Fast Ethernet 10/100Base-TX
Network Ready
Standard (built-in Ethernet)
Modem
33.6 kbps
Connectivity, Standard
Hi-Speed USB 2.0 port; built-in Fast Ethernet 10/100Base-TX network port
Network Capabilities
Yes, via built-in Ethernet
Wireless Capability
No
Mobile Printing Capability
No
Network Protocols, Supported
Via built-in networking solution: TCP/IP, IPv4, IPv6; Print: LPD (raw queue support only); Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6 (Stateless Link-Local and via Router, Statefull via DHCPv6); Management: SNMPv1, HTTP; HP ePrint
Printing Media Handling
Finished Output Handling
Sheetfed
Envelope Input Capacity
Up to 10 envelopes
Output Capacity
Up to 100 sheets
Maximum Output Capacity (Sheets)
Up to 100 sheets
Standard Output Capacity (Transparencies)
Up to 75 sheets
Media Type And Capacity, Tray 1
Sheets: 150; envelopes: 10
Paper Handling Input, Standard
150-sheet input tray
Input Capacity
Up to 150 sheets
Paper Handling Output, Standard
100-sheet face-down bin
Standard Output Capacity (Envelopes)
Up to 10 envelopes
Maximum Input Capacity (Sheets)
Up to 150 sheets
Display Specifications
Display HP
2-line LCD (text)
Environmental
Acoustic Power Note
Acoustic values are subject to change. For current information see hp.com/support. Configuration tested: LaserJet Pro MFP M127fw, simplex printing with A4 paper. LaserJet Pro MFP M127fw, ADF copy and print simplex using A4 paper.
Acoustic Pressure Emissions Bystander (Active, Printing)
49 dB(A)
Acoustic Pressure Emissions Bystander (Active Copy)
52 dB(A)
Non-Operating Humidity Range
10 to 90% RH
Operating Humidity Range
10 to 80% RH
Storage Temperature Range
-20 to 60ºC
Operating Temperature Range
15 to 32.5ºC
Acoustic Power Emissions
6.0 B(A)
Recommended Operating Temperature Range
17.5 to 25ºC
Acoustic Power Emissions (Ready)
Inaudible
Acoustic Pressure Emissions Bystander (Ready)
Inaudible
Scan Speed
Scan Speed (Normal, Letter)
Up to 7 ppm (b&w), up to 5 ppm (color)
Scan Speed (Normal, A4)
Up to 7 ppm (b&w), up to 5 ppm (color)
Cartridges And Printheads
Technology
Laser
Number Of Print Cartridges
1 (black)
Replacement Cartridges
HP 88A Black LaserJet Toner Cartridge (~1500 yield) CC388A
Copy Speed
Copy Speed (Black, Normal Quality, A4)
Up to 20 cpm
Copy Speed Black (Normal, Letter)
Up to 21 cpm
Copy Speed Note
First Copy Out and Copy Speed measured using ISO/IEC 29183, excludes first set of test documents. For more information see http://www.hp.com/products1/ISO/digital_copy/index.html. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Battery And Power
Power
Input voltage: 110 to 127 VAC (+/- 12%), 60 Hz (+/- 3 Hz); Input voltage: 220 to 240 VAC (+/- 12%), 50/60 Hz (+/- 3 Hz) (Not dual voltage, power supply varies by part number with # Option code identifier)
Power Consumption
480 watts (Printing), 186 watts (Copying from ADF), 4.5 watts (Ready), 1.1 watts (Sleep/Auto-Off), 0.2 watts (Manual Off)
Power Supply Type
Built-in power supply
Digital Sender Specifications
Digital Sending Standard Features
Scan to E-mail by HP Software; Scan to application by HP Software; Scan to file by HP Software
File Formats, Supported
PDF; TIF; BMP; PNG; JPG
Print Time
First Page Out Black (Letter, Ready)
As fast as 9.5 sec
First Page Out Black (A4, Ready)
As fast as 9.5 sec
First Page Out Black (Letter, Sleep)
As fast as 9.5 sec
Printer Specifications
Storage Device And Direct Print Support
Storage devices not supported
Multitasking Supported
Yes
Duty Cycle (Monthly, Letter)
Up to 8000 pages
Duty Cycle Note
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
Envelope Feeder
Yes, 10 (in Tray 1)
Recommended Monthly Page Volume Note
HP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
Functions
Print, copy, scan, fax
Print Languages
PCLm/PCLmS
Paper Trays, Maximum
1
Duty Cycle (Monthly, A4)
Up to 8000 pages
Paper Trays, Standard
1
Recommended Monthly Page Volume
250 to 2000
Print Technology
Laser
Duplex Printing
Manual (driver support provided)
Fonts And Typefaces
Depend on OS fonts and typefaces
Automatic Paper Sensor
No
Printer Management
HP Device Toolbox, Status Alerts (default install)
Print Colours
No
Top Key Features
35-sheet ADF
Target User And Print Volume
For teams up to 5 users; Prints up to 2,000 pages/month
Scanner Specifications
Scan Size (ADF), Maximum
216 x 356 mm
Scan File Format
Windows Scan Software supports file format: JPG, RAW(BMP), PDF, TIFF, PNG; Mac Scan Software supports file format: TIFF, PNG, JPEG, JPEG-2000, PDF, PDF-Searchable, RTF, TXT
Color Scanning
Yes
Auto Document Feeder Capacity
Standard, 35 sheets
Scanner Type
Flatbed, ADF
Scan Size, Maximum
216 x 297 mm
Levels Of Grayscale
256
Scan Input Modes
Scanning via HP LaserJet scan application or TWAIN—or WIA-compliant application software
Scan Size ADF (Minimum)
152 x 114 mm
Bit Depth
24-bit
Twain Version
Version 1.9
Duplex ADF Scanning
No
Scan Technology
Contact Image Sensor (CIS)
Certification And Compliance
ENERGY STAR Certified
Yes
Energy Efficiency Compliance
ENERGY STAR qualified, CECP
Electromagnetic Emission Standard
CISPR 22:2008/EN 55022:2010 – Class B, EN 61000-3-2:2006 +A1:2009 +A2:2009, EN 61000-3-3:2008, EN 55024:2010, FCC Title 47 CFR, Part 15 Class B / ICES-003, Issue 5, GB9254-2008, GB17625.1-2003, EMC Directive 2004/108/EC (Europe), other EMC approvals as required by individual countries.
Safety Approvals And Requirements
IEC 60950-1:2005 +A1 (International), EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 (EU), IEC 60825-1:2007, UL/cUL Listed (US/Canada), GS License (Europe), EN 60825-1:2007 (Class 1 Laser/LED Device), Low Voltage Directive 2006/95/EC with CE Marking (Europe), other safety approvals as required by individual countries.
Telecom Compliance (Fax Capability)
Fax Telecom: ES 203 021; R&TTE Directive 1999/5/EC (Annex II) with CE Marking (Europe); FCC Part 68; Industry Canada CS03; NOM-151-SCTI-1999 (Mexico); PTC-200 (New Zealand); other Telecom approvals as required by individual countries
Environmental
Mercury free
Eco Label
ENERGY STAR qualified
Box Contents
What’s In The Box
HP LaserJet Pro MFP M128fn; Preinstalled introductory HP LaserJet Black Cartridge (~700 pages); Installation guide; Getting Started guide; User’s Guide; Support flyer; Warranty guide; Printer software and documentation on CD; Power cord; USB cable; Phone cord
Cable Included
Yes, 1 USB
Warranty
Warranty
1 +2 Year Next Business Day Exchange Support
Dimensions
Dimensions (W X D X H)
420 x 365 x 309 mm
Maximum Dimensions (W X D X H)
420 x 438 x 309 mm
Weights
Weight
9.1 kg
Geographic
Country Of Origin
Made in China
Fax Specifications
Auto Redial
Yes
Speed Dials, Maximum Number
Up to 100 numbers
Fax Memory
Up to 500 pages
Polling
Yes
Fax Forwarding
Yes
Broadcast Locations
100 locations
Fax Delayed Sending
Yes
Faxing
Yes
Junk Fax Barrier
Yes
Remote Retrieval
Yes
Auto Fax Reduction Supported
Yes
PC Interface Supported
Yes, only for sending
Telephone Handset Supported
No
Distinctive Ring Detection Supported
Yes
Fax Telephone Mode Supported
Yes
Fax Memory
Up to 500 pages
System Components
Control Panel
2-line LCD; buttons (Up, Down, OK, Cancel, Back, Setup, Number of Copy, Dark/Light, Mono copy, Copy Menu, ePrint, Start Fax, Fax Setup, Number Key 0- 9, “*-@”, “#,”, Power ); 3 LED indicator lights (Attention, Ready, Power )
Processors
Processor Speed
600 MHz
Scan Resolution
Scan Resolution, Hardware
Up to 1200 x 1200 dpi
Enhanced Scanning Resolution
Up to 1200 dpi
Scan Resolution, Optical
Up to 1200 dpi
Memory
Memory
128 MB
Memory, Maximum
128 MB
Fax Speed
Fax Transmission Speed
33.6 kbps
Fax Note
Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory.
Fax Transmission Speed
3 sec per page
Supported Printing Media
Media Sizes Supported
A4; A5; B5-Japanese; envelopes (ISO DL, C5, B5, Com #10, Monarch #7 3/4); 16K; post cards (Standard #10, JIS single and double)
Media Size, Tray 1
Letter; Legal; Executive; A4; A5; B5-Japanese; envelopes (ISO DL, C5, B5, Com #10, Monarch #7 3/4); 16K; post cards (Standard #10, JIS single and double)
Media Weight, Supported
60 to 163 g/m²
Media Types
Paper (plain, LaserJet), envelopes, transparencies, labels, postcards
Media Weight (Tray 1)
60 to 163 g/m²
Media Weights, Supported, ADF
60 to 90 g/m²
Media Sizes, Custom
76 x 127 to 216 x 356 mm
Media Sizes Supported, Key
Letter; Legal; Envelopes
Media Sizes Supported, Key
A4; Envelopes
Media Size (ADF)
Letter; A4
System Requirements
Minimum System Requirements For Macintosh
Mac OS X v 10.6; PowerPC G4, G5, or Intel Core™ Processor; 500 MB available hard disk space; CD-ROM/DVD-ROM or Internet; USB or Network port
Minimum System Requirements
Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher); 200 MB hard disk space required (CD and Web Package); 400 MB hard disk space required; 512 MB RAM installed; CD-ROM/DVD or Internet; USB or Network port
Fax Resolution
Fax Resolution
Up to 300 x 300 dpi
Resolution (Black And White, Standard Mode)
203 x 98 dpi
Fax Resolution Black
203 x 196 dpi, 256 levels of gray
Resolution (Black And White, Superfine Mode)
300 x 300 dpi or 203 x 392 dpi, 256 levels of gray
Resolution (Black Photo Grayscale)
300 x 300 dpi (halftone)
Software And Applications
Driver Updates
Latest drivers available from HP support Web site at hp.com/go/ljMFPM128series_software
Downloadable Software
Windows Full Software Solution, HP EcoPrint Console, Mac Software Solution; Linux Software Solution
Mac Compatible
Yes
Software Included
Windows: HP Installer/Uninstaller, HP PCLmS print driver, HP WIA Scan Driver, HP TWAIN Scan Driver, HP Scan, HP Fax Setup Wizard, HP Send Fax, Status Alerts, HP Update, DXP; Mac: HP Installer/Uninstaller, HP PCLmS driver, HP Scan, HP Setup Assistant, HP Fax Print Driver, HP Utility, HP Alerts, HP Firmware Updater
Supported Operating Systems
Compatible Operating Systems
Full software installs supported on: Windows 10 (32-bit/64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher); Driver only installs supported on: Windows Server 2012; Windows Server 2008 (32-bit), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit) (SP1 or higher); Mac OS X v 10.6.8 or higher; Linux: Please check Linux on-line support: http://www.hplipopensource.com/hplip-web/install.html
Compatible Network Operating Systems
Full software installs supported on: Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows Vista (32-bit/64-bit), Windows XP (32-bit) (SP2 or higher); Driver only installs supported on: Windows Server 2012; Windows Server 2008 (32-bit), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit) (SP1 or higher); Mac OS X v 10.6.8 or higher; Linux: Please check Linux on-line support: hplipopensource.com/hplip-web/install.html
Operating System (Supported Note)
Driver only installs supported on: Windows Server 2012; Windows Server 2008 (32-bit), Windows Server 2008 (Standard Edition), Windows Server 2008 (Enterprise Edition), Windows Server 2003 (32-bit) (SP1 or higher)
Print Resolution
Print Quality Black (Normal)
Up to 600 x 400 dpi
Print Quality Black (Best)
Up to 600 x 600 dpi
Rack And Power Specifications
Typical Electricity Consumption (TEC) Number
0.633 kWh/Week
Number Of Users
1-5 Users
Print Area
Maximum Print Area
209 x 349 mm
Right Margin (A4)
4 mm
Top Margin (A4)
2 mm
Bottom Margin (A4)
5 mm
Left Margin (A4)
3 mm
Advanced Features
Copier Smart Software Features
Up to 99 multiple copies; Reduce/Enlarge from 25 to 400%; Contrast (lighter/darker); Resolution (copy quality), ID Copy
Printer Smart Software Features
HP Auto-On/Auto-Off, HP ePrint, Apple AirPrint™, Embedded Web Server, Mopria-certified
Fax Smart Software Features
Fax address book; LAN/Internet fax; Speed-dial; TAM interface
Energy Savings Feature Technology
HP Auto-On/Auto-Off Technology
Copier Specifications
Copies, Maximum
Up to 99 copies
Copy Reduce / Enlarge Settings
25 to 400%
Copier Scaling (ADF)
25 to 400%
Copier Settings
Number of copies; Lighter/Darker; Reduce/Enlarge; Optimize (draft, text, mixed, picture); Paper Size, Collation
Security Management
Security Management
Password-protected network embedded Web server; SNMPv1 community password change
Compatibility
Accessories
HP 1200w NFC/Wireless Mobile Print Accessory E5K46A
Orderable Supplies
HP Black Contract Original LaserJet Toner Cartridge CC388A
Multimedia And Input Devices
Fax Phone TAM Interface Supported
Yes
Resolution
1200 x 1200 dpi
Product Names
Sub-Brand Name
LaserJet
Appearance

Colour
Black
