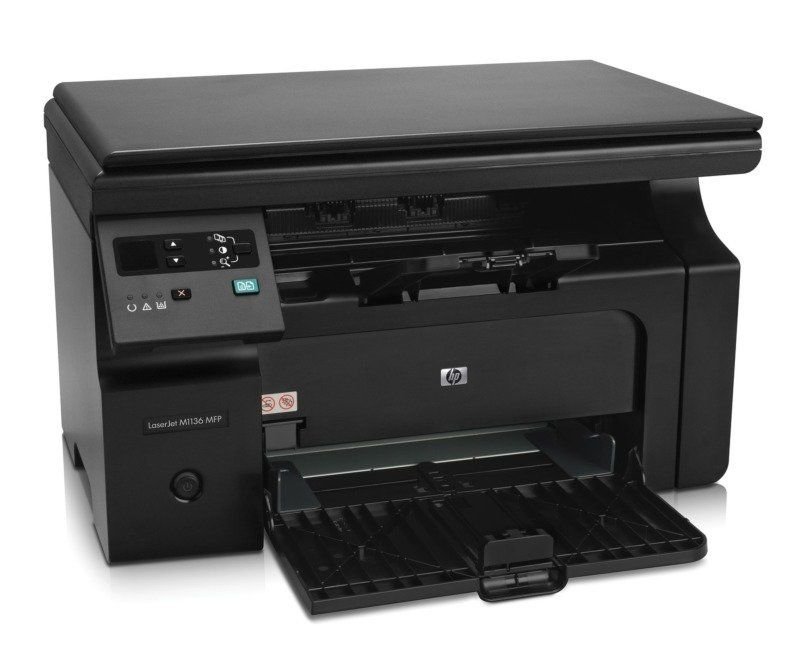

HP LaserJet Pro M1136 Multifunction of Printer

Specifications

More Information

HP LaserJet Pro M1136 Multifunction of Printer

SKU
SkuCE849A
PRINT
Print speed, black11 – 20
Color outputBlack and white
CATEGORY HP LaserJet Pro M1136  the Multifunction Printer
Product typeLaser Printers
Family brandLaserJet
USAGE HP LaserJet Pro M1136 Multifunction of Printer
Perfect ForHome and home office
FEATURES HP LaserJet Pro M1136 Multifunction  Printer

FunctionsPrint scan and copy
CONNECTIVITY AND COMMUNICATIONS HP LaserJet Pro M1136 Multifunction Printer

Connectivity, optionalNone
HP ePrint capabilityNo
Ports1 Hi-Speed 2.0
Network readyNo
Connectivity, standardHi-Speed USB 2.0 port
Network capabilitiesNone
Wireless capabilityNo
Mobile printing capabilityMobile Print Capability not supported
PRINTING MEDIA HANDLING HP LaserJet Pro M1136 Multifunction Printer

Finished output handlingSheetfed
Envelope input capacityUp to 10 envelopes
Output capacityUp to 100 sheets
Maximum output capacity (sheets)Up to 100 sheets
Standard output capacity (transparencies)Up to 75 sheets
Media type and capacity, tray 1Sheets: 150; envelopes: 10
Paper handling input, standard150-sheet input tray
Input capacityUp to 150 sheets
Paper handling output, standard100-sheet face-down bin
Standard output capacity (envelopes)Up to 10 envelopes
Maximum input capacity (sheets)Up to 150 sheets
DISPLAY SPECIFICATIONS
DisplayDual digit numeric LED
ENVIRONMENTAL
Acoustic power noteMeasured according to ISO 7779 and declared in accordance with ISO 9296; values are subject to change. For current information, see http://www.hp.com/support. Configuration tested: LaserJet Pro M1132 MFP printing simplex on A4 paper.
Acoustic pressure emissions bystander (active, printing)50 dB(A)
Non-Operating Humidity Range10 to 80% RH
Operating humidity range10 to 80% RH
Storage temperature range0 to 35ºC
Operating temperature range10 to 32.5ºC
Acoustic power emissions6.2 B(A)
Recommended operating temperature range10 to 32.5ºC
Acoustic power emissions (ready)Inaudible
Acoustic pressure emissions bystander (ready)Inaudible
SCAN SPEED
Scan speed (normal, letter)Up to 6 ppm (b&w), up to 3 ppm (color)
Scan speed black (normal)Up to 6 ppm
Scan speed color (normal)Up to 3 ppm
Task speed4 x 6 in (10 x 15 cm) colour photo to file: less than 7 sec for single
CARTRIDGES AND PRINTHEADS
TechnologyLaser
Number of print cartridges1 (black)
Replacement cartridgesHP LaserJet Black Print Cartridge CC388A
PRINT SPEED
Print speed black (normal, letter)Up to 19 ppm
Print speed black (normal, A4)Up to 18 ppm
Print speedPrint speed up to 19 ppm (black)
COPY SPEED
Copy speed black (best, A4)Up to 18 cpm
Copy speed (black, normal quality, A4)Up to 18 cpm
Copy speed black (best, letter)Up to 19 cpm
BATTERY AND POWER
PowerInput voltage 110 to 127 VAC (+/- 10%), 60 Hz (+/- 2 Hz); 220 to 240 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz)
Power consumption (standby)3.2 watts
Power consumption (active)375 watts
Power consumption (manual-off)0.3 watts
Power Consumption Description375 watts (printing), 265 watts (copying), 3.2 watts (ready), 1 watt (auto-Off), 0.3 watts (manual-Off)
Power consumption (active copy)265 watts
Power supply typeBuilt-in power supply
Power consumption (auto-off)1 watt
DIGITAL SENDER SPECIFICATIONS
Digital sending standard featuresScan to E-mail; scan to application; scan to file
File formats, supportedPDF; TIF; BMP; GIF; JPG
PRINT TIME
First page out black (letter, ready)As fast as 8.5 sec
First page out black (A4, ready)As fast as 8.5 sec
PRINTER SPECIFICATIONS
Storage device and direct print supportStorage devices not supported
Multitasking supportedYes
Duty cycle (monthly, letter)Up to 8000 pages
Duty cycle noteDuty cycle is defined as the maximum number of pages per month of imaged output.
Envelope feederNo
Recommended monthly page volume noteHP recommends that the number of pages per month of imaged output be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
FunctionsPrint, copy, scan
Print languagesHost-based
Paper trays, maximum1
Duty cycle (monthly, A4)Up to 8000 pages
Paper trays, standard1
Recommended monthly page volume250 to 2000
Print technologyLaser
Duplex printingManual (driver support provided)
Warm-up time10 sec
Fonts and typefacesNone (Host-based)
Automatic paper sensorNo
Printer managementHP Toolbox
Memory card compatibilityNo
Print coloursNo
Top key featuresScan to email/PDF
Target user and print volumeFor teams up to 3 users; Prints up to 2,000 pages/month
One-touch keys5
CERTIFICATION AND COMPLIANCE
ENERGY STAR® certifiedYes
Energy Efficiency ComplianceENERGY STAR® qualified, CECP
Electromagnetic Emission StandardCISPR 22: 2005 +A1/EN 55022: 2006 +A1-Class B, EN 61000-3-2: 2006 +A1 +A2 (Harmonic emissions, Class A), EN 61000-3-3: 2008 (Flicker emissions), EN 55024: 1998 +A1+A2 immunity standards which includes compliance with the following: EN 61000-4-2: 1995 (ESD immunity, performance criterion B), EN 61000-4-3: 1996 (radiated immunity, performance criterion A), EN 61000-4-4: 1995 (EFT immunity, performance criterion B), EN 61000-4-5: 1995 (surge immunity, performance criterion B), EN 61000-4-6: 1996 (conducted immunity, performance criterion A), EN 61000-4-11: 1994 (voltage fluctuations, performance criterion B & C)
Safety Approvals and RequirementsUL 60950-1; CAN/CSA-C22.2 No.60950-1-03; IEC 60950-1: 2005 and EN 60950-1: 2006 +A11: 2009. 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser; Notice No. 50, Dated June 24 , 2007; IEC 60825-1: 2007 and EN 60825-1: 2007 (Class 1 Laser/LED Product); IEC 62479: 2010/EN 62479: 2010
Eco labelENERGY STAR® qualified Product
GEOGRAPHIC
Country of originProduct of China; Brazil
WARRANTY
Warranty1 Year Next Business Day Exchange Support
MEMORY
Memory slotsNo
Memory upgradeNot expandable
Memory8 MB
Memory, maximum8 MB
DIMENSIONS
Dimensions with stand (W x D x H)415 x 265 x 250 mm
Package dimensions (W x D x H)497 x 330 x 351 mm
Maximum dimensions (W x D x H)415 x 365 x 250 mm
WEIGHTS
Weight7.0 kg
Package weight9.4 kg
FAX SPECIFICATIONS
FaxingNo
SYSTEM COMPONENTS
Control panelDual digit numeric LED display; 5 buttons (Up, Down, Cancel, Switch, Start copy); 6 LED indicator lights (Attention, Ready, Toner low, Number of pages, Dark/light, Reduce/enlarge)
PROCESSOR
ProcessorMarvell processor
Processor speed400 MHz
SCAN RESOLUTION
Scan Resolution, HardwareUp to 1200 x 1200 dpi
Enhanced scanning resolutionUp to 19,200 dpi
Scan Resolution, OpticalUp to 1200 dpi
BOX CONTENTS
Cable includedYes, 1 USB cable.
SUPPORTED PRINTING MEDIA
Media sizes supportedA4; A5; ISO B5; ISO C5; ISO C5/6; ISO C6; ISO DL; 16K; European postcard; J postcard (Hagaki); J double postcard (Oufuku Hagaki)
Media size, tray 1A4; A5; ISO B5; ISO C5; ISO C5/6; ISO C6; ISO DL; 16K; European postcard; J postcard (Hagaki); J double postcard (Oufuku Hagaki)
Media weight, supported60 to 163 g/m²
Media typesPaper (plain, laser), envelopes, transparencies, labels, cardstock, postcards
Media weight (tray 1)16 to 43 lb
Media sizes, custom76 x 127 to 216 x 356 mm
Media sizes supported, keyLetter; Legal; Envelopes
Media sizes supported, keyA4; Envelopes
Media weight, tray 160 to 163 g/m²
Media size, tray 1Letter, legal, envelopes (No. 5 1/2 Baronial through No. 11), index cards, postcards
SYSTEM REQUIREMENTS
Minimum System Requirements for MacintoshMac OS X v 10.4, v 10.5, v 10.6; PowerPC G3, G4, G5, or Intel processors; 1 GB RAM; 200 MB available hard disk space; CD-ROM drive; USB or network port
Minimum System RequirementsMicrosoft® Windows® 7, Windows Vista®, Windows® XP, Windows® Server 2003: 1 GHz processor, 1 GB RAM, 700 MB free hard disk space, SVGA 800 x 600 with 16-bit colour display, Internet Explorer 5.5 or higher, USB or Ethernet port
SOFTWARE AND APPLICATIONS
Driver updatesLatest drivers available from HP support Web site at http://www.hp.com/go/ljm1130series_software, http://www.hp.com/support/ljm1130series
Downloadable softwareWindows CD image; Mac CD Image; Smart Web Printing In-House Marketing; Linux driver
Mac compatibleYes
Software includedHost-based print drivers, TWAIN, WIA, Scan-To application, XPS driver, Mac driver.
SUPPORTED OPERATING SYSTEMS
Compatible Operating SystemsWindows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2003, Windows Server 2008; Mac OS X v10.4, v10.5, v10.6; Linux (see hplip.net)
Operating system (supported note)For Windows® Server 2003 and Windows® Server 2008, add print and scan drivers only
PRINT RESOLUTION
Print quality black (normal)Up to 600 x 600 dpi (1200 dpi effective)
Print quality black (best)Up to 600 x 600 dpi (1200 dpi effective)
RACK AND POWER SPECIFICATIONS
Typical electricity consumption (TEC) number0.589 kWh/Week
Number of users1-3 Users
PRINT AREA
Maximum print area206 x 344 mm
Right margin (A4)4 mm
Top margin (A4)4 mm
Bottom margin (A4)4 mm
Left margin (A4)4 mm
SERVICES
Services (Care Pack)UH755E HP 1-year Next Business Day exchange consumer LaserJet-Entry Service; UH771E HP 1-year Onsite exchange consumer LaserJet -Entry Service; UH767E HP 1-year Post Warranty Pickup & Return exchange consumer LaserJet -Entry Service; UH772E HP 2-year Onsite exchange consumer LaserJet -Entry Service; UH763E HP 2-year Return to Bench exchange consumer LaserJet -Entry Service (Increase printer uptime, keep operating costs predictably low, and enjoy better business outcomes with HP Care Pack services. For more information on HP Care Pack services, please visit www.hp.com/go/printservices.)
ADVANCED FEATURES
Scanner advanced featuresIntelligent scanning recognising the difference of text
Copier smart software featuresUp to 99 multiple copies; Reduce/Enlarge from 30 to 400%; Contrast (lighter/darker); Resolution (copy quality)
Printer smart software featuresSimplified control panel, HP Auto-On/Auto-Off, Compact design, Clear and sharp Chinese and India fonts (China/India only)
SCANNER SPECIFICATIONS
Scan file formatJPEG, TIF (compressed and uncompressed), PDF, GIF, BMP
Color scanningYes
Scan size, minimum25.4 x 25.4 mm
Auto document feeder capacityNone
Scanner typeFlatbed
Scan size, maximum216 x 297 mm
Levels of grayscale256
Scan input modesScanning via HP LaserJet scan application or TWAIN—or WIA-compliant application software
Bit Depth24-bit
Twain versionVersion 1.9
Duplex ADF scanningNo
COPIER SPECIFICATIONS
Copies, maximumUp to 99 copies
Copy reduce / enlarge settings30 to 400%
Copier settingsNumber of copies; Lighter/Darker; Reduce/Enlarge; Copy quality (draft, text, mixed, picture)
COMPATIBILITY
AccessoriesHi-Speed USB Cable (6 ft./1.8 m) Q6264A
PRODUCT NAMES
Sub-brand nameLaserJet Pro
