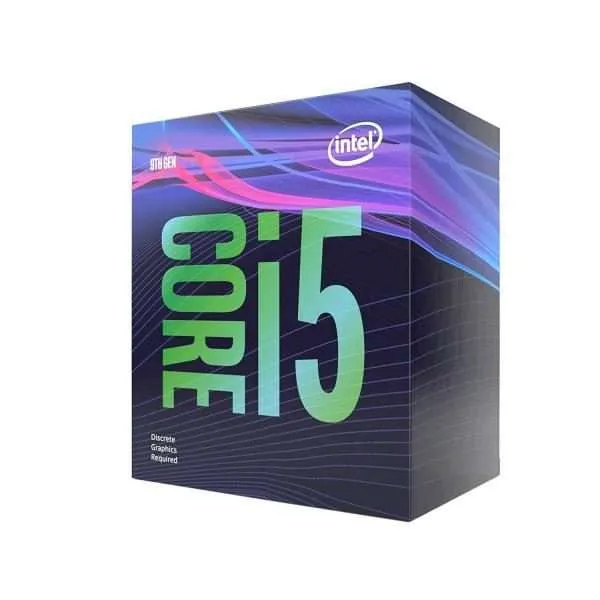

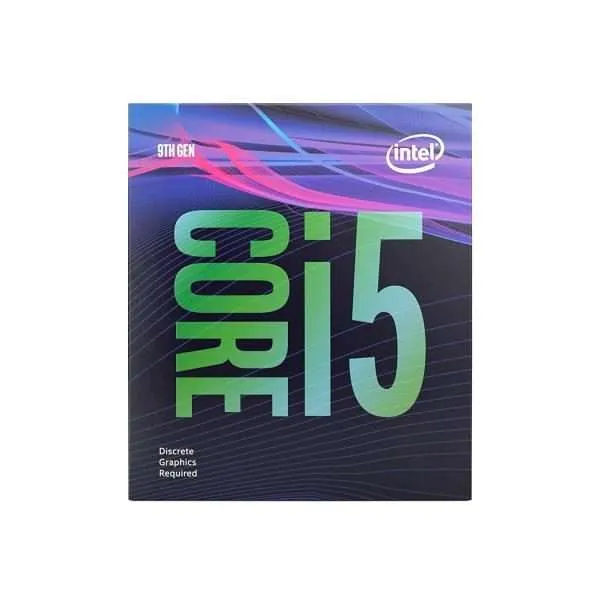

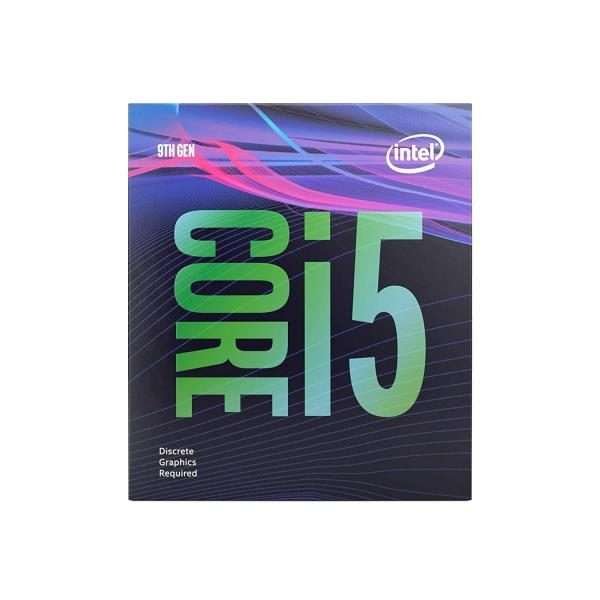

Intel Core i5-9400F 9th Generation Desktop Processor BX80684I59400F 6 Cores, 4.1 GHz Turbo Frequency

In stock

Intel Core i5-9400F 9th Gen Processor
4.10 GHz Max Turbo Frequency
6 Cores 6 Threads
9 MB Smart Cache
Discrete Graphics Required

Compare
SKU: IGO-30102022-775 Category:

Processor Generation Core i5 9th Generation

Processor Model Number i5-9400F

Cores & Threads 6 Cores & 6 Threads

CPU Clock Speed 2.90 GHz Base & 4.10 GHz Turbo

CPU Socket LGA1151

Cache Memory 9 MB Intel Smart Cache

OVERVIEW
The intel core i5 9th generation Desktop Processor allows you to have a PC experience like never before. From the first moment you turn it on, you۪ll notice faster start-up times and better performance. The 9th generation Intel Core processors not only deliver great performance but they۪re also designed to use less power and are packed with innovations that make your computing experience more fluid and productive.

The Intel Core i5-9400F is designed to handle all of your everyday tasks with ease, and even have enough power left over for watching videos or playing games.

The 9th generation Intel processor gives you the power to handle most computing tasks without sacrificing performance. This 6-core processor can run up to 4.1 GHz, allowing it to perform multiple demanding applications at once. The 9th Generation Intel Core desktop processors use 14nm lithography (14nm++) for faster, cooler, and more efficient performance than previous generation processors.

Intel Core i5-9400F is a processor from Intel۪s latest 9th generation of desktop processors. It comes with 6 cores and 6 threads, operating at 2.9 GHz base frequency and 4.1 GHz turbo frequency with a TDP of 65W. The core i5-9400F includes features such as Intel Turbo Boost 2.0 Technology, Intel vPro Technology, Intel Hyper-Threading Technology, and Intel Opt.

TECHNICAL SPECIFICATIONS

General_
Product_ 9th Generation Intel Core i5 Processors
Code Name_ Coffee Lake
Vertical Segment_ Desktop
Processor Number_ i5-9400F
Lithography_ 14 nm
CPU Specifications_
No. of Cores_ 6
No. of Threads_ 6
Base Frequency_ 2.90 GHz
Max Turbo Frequency_ 4.10 GHz
Cache_ 9 MB Intel Smart Cache
Bus Speed_ 8 GT/s
Intel Turbo Boost Technology 2.0 Frequency_ 4.10 GHz
TDP_ 65 W
Supplemental Information_
Embedded Options Available_ No
Memory Specifications_
Max Memory Size_ 128 GB
Memory Types_ DDR4-2666
No. of Memory Channels_ 2
Max Memory Bandwidth_ 41.6 GB/s
ECC Memory Supported_ No
Expansion Options_
Scalability_ 1S Only
PCI Express Revision_ 3
PCI Express Configurations_ Up to 116, 28, 18+24
Max no. of PCI Express Lanes_ 16
Advanced Technologies_
Intel Optane Memory Supported_ Yes
Intel Turbo Boost Technology_ 2
Intel vPro Platform Eligibility_ No
Intel Hyper-Threading Technology_ No
Intel Virtualization Technology (VT-x)_ Yes
Virtualization Technology for Directed I/O (VT-d)_ Yes
Intel VT-x with Extended Page Tables (EPT)_ Yes
Intel Transactional Synchronization Extensions_ No
Intel 64_ Yes
Instruction Set_ 64-bit
Instruction Set Extensions_ Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States_ Yes
Enhanced Intel SpeedStep Technology_ Yes
Thermal Monitoring Technologies_ Yes
Intel Identity Protection Technology_ Yes
Intel Stable Image Platform Program (SIPP)_ No
Security & Reliability_
Intel AES New Instructions_ Yes
Secure Key_ Yes
Intel Software Guard Extensions (Intel SGX)_ Yes with Intel ME
Intel Memory Protection Extensions (Intel MPX)_ Yes
Intel OS Guard_ Yes
Intel Trusted Execution Technology_ No
Execute Disable Bit_ Yes
Intel Boot Guard_ Yes
Miscellaneous_
Sockets Supported_ FCLGA1151
Max CPU Configuration_ 1
Thermal Solution Specification_ PCG 2015C (65W)
TJUNCTION_ 100C
Package Size_ 37.5mm x 37.5mm
Weight__ 100 g (approx)
Specification: Intel Core i5-9400F 9th Generation Desktop Processor BX80684I59400F 6 Cores, 4.1 GHz Turbo Frequency
EAN, GTIN, UPC_
735858406079

CPU PLATFORM_
INTEL

Product Type_
Processor

CPU SOCKET_
LGA1151

Brand_
Intel

PROCESSOR CORES_
6-Core

THREADS_
6

PROCESSOR GENERATION_
9TH

INTEGRATED GRAPHICS_
NO

CACHE_
9 MB

PROCESSOR SERIES_
Core i5 (9th Gen)

SPEED_
2.9 GHz

TURBO SPEED_
4.1 GHz

PERFORMANCE_
GAMING

IDEAL FOR GAMING_
YES

WARRANTY_
3 Years Warranty
