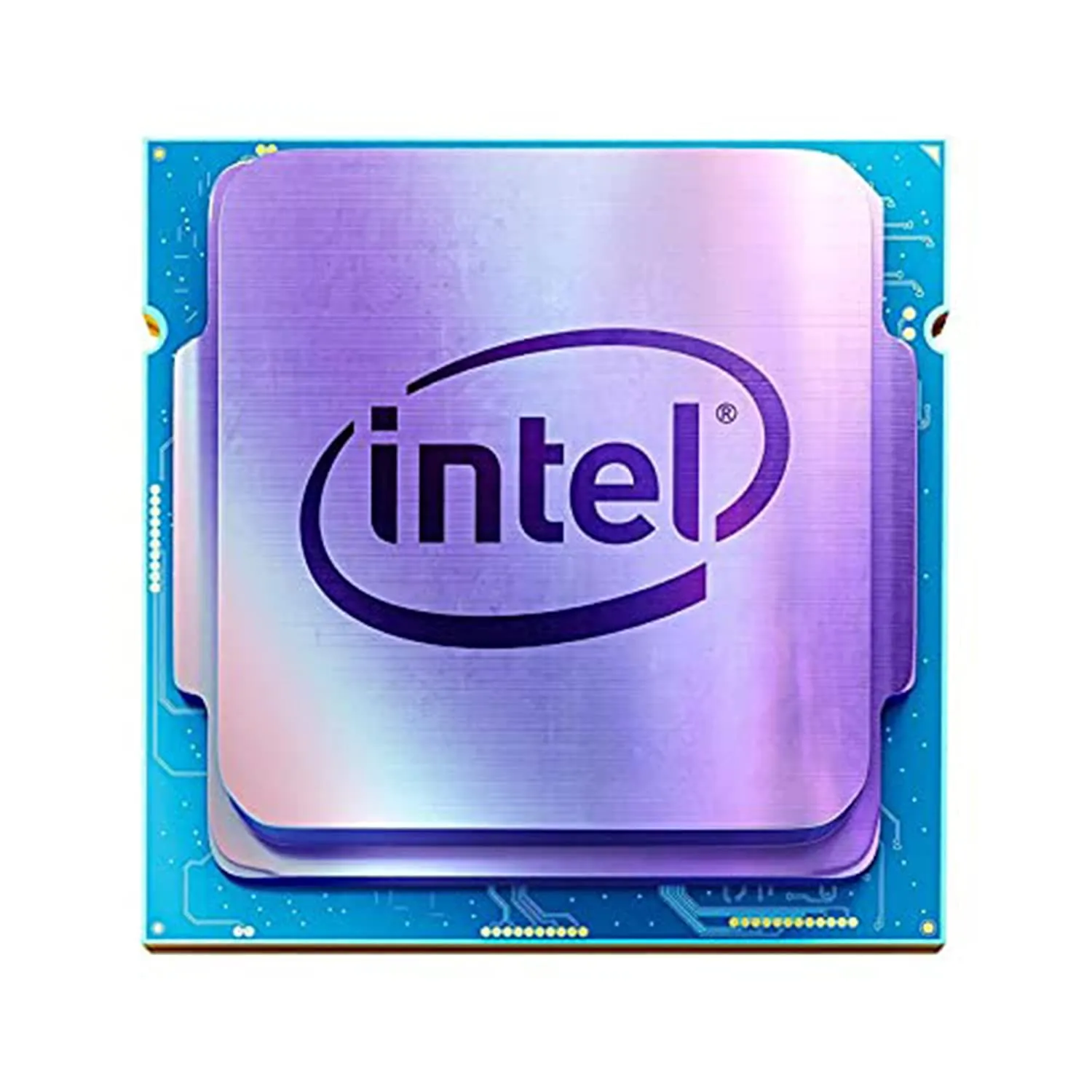

Intel Core i3-10100F 6M Cache, up to 4.30 GHz Comet Lake Processor

The Intel Core i3-10100F is an entry level quad-core processor for desktop PCs based on the Comet Lake-S architecture. It offers four cores clocked at 3.6 4.3 GHz with HyperThreading / SMT support (8 threads).

Specification :

Product Collection 10th Generation Intel Core i3 Processors
Code Name Products formerly Comet Lake
Vertical Segment Desktop
Processor Number i3-10100F
Lithography 14 nm
CPU Specifications
# of Cores 4
# of Threads 8
Processor Base Frequency 3.60 GHz
Max Turbo Frequency 4.30 GHz
Cache 6 MB Intel Smart Cache
Bus Speed 8 GT/s
Intel Turbo Boost Technology 2.0 Frequency‰ÛÁ 4.30 GHz
TDP 65 W
Supplemental Information
Embedded Options Available No
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‰ÛÁ No
Expansion Options
Scalability 1S Only
PCI Express Revision 3
PCI Express Configurations ‰ÛÁ Up to 1ÌÑ16, 2ÌÑ8, 1ÌÑ8+2ÌÑ4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1200
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C
TJUNCTION 100å¡C
Package Size 37.5mm x 37.5mm
Advanced Technologies
Intel Optane Memory Supported ‰ÛÁ Yes
Intel Thermal Velocity Boost No
Intel Turbo Boost Max Technology 3.0 ‰ÛÁ No
Intel Turbo Boost Technology ‰ÛÁ 2
Intel vPro Platform Eligibility ‰ÛÁ No
Intel Hyper-Threading Technology ‰ÛÁ Yes
Intel Virtualization Technology (VT-x) ‰ÛÁ Yes
Intel Virtualization Technology for Directed I/O (VT-d) ‰ÛÁ Yes
Intel VT-x with Extended Page Tables (EPT) ‰ÛÁ Yes
Intel Transactional Synchronization Extensions No
Intel 64 ‰ÛÁ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States Yes
Enhanced Intel SpeedStep Technology Yes
Thermal Monitoring Technologies Yes
Intel Identity Protection Technology ‰ÛÁ Yes
Intel Stable Image Platform Program (SIPP) No
Security & Reliability
Intel AES New Instructions Yes
Secure Key Yes
Intel Software Guard Extensions (Intel SGX) Yes with Intel ME
Intel OS Guard Yes
Intel Trusted Execution Technology ‰ÛÁ No
Execute Disable Bit ‰ÛÁ Yes
Intel Boot Guard Yes
