ASUS PN63-S1 Mini PC Barebone with Intel Core i5-11300H 90MR00Q1-M001X0

In stock

Weight 5 kg
Brand
ASUS

Compare
SKU: IGO-20221010-1097 Category:

Operating System Windows 10 Pro
Windows 11 Pro
Windows 11 Home
CPU Intel Core i5-11300H Processor 3.1GHz (8M Cache, up to 4.4GHz); (Barebone SKU)
Chipset Integrated
Graphics Intel Iris Xe Graphics or Intel UHD Graphics for 11th Gen Intel Processors
Memory DRAM MODULE(DDR4)/3200/8G
DRAM MODULE(DDR4)/3200/4G
DRAM MODULE(DDR4)/3200/16G
DRAM MODULE(DDR4)/3200/8G x 2
Storage 256GB M.2 NVMe PCIe 3.0 SSD
512GB M.2 NVMe PCIe 3.0 SSD
1TB M.2 NVMe PCIe 3.0 SSD
1TB M.2 NVMe PCIe 4.0 SSD
128GB M.2 NVMe PCIe 3.0 SSD
Wireless Data Network Wi-Fi 6, Bluetoothe 5.0, 2*2 (Barebone SKU)
Wi-Fi 5, Bluetooth 5.0, 2*2 (Barebone SKU)
Intel Wi-Fi 6 AX201 (Gig+) (2ÌÑ2) + BT5
Wi-Fi 5, Bluetooth 5.0, 2*2
LAN
2.5G LAN, Intel I225V
Side(Front) I/O Ports 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2, 1 x Audio Jack (Line out/ Mic in/ Headphone out)
1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2, 1 x Audio Jack (Line out/ Mic in/ Headphone out),

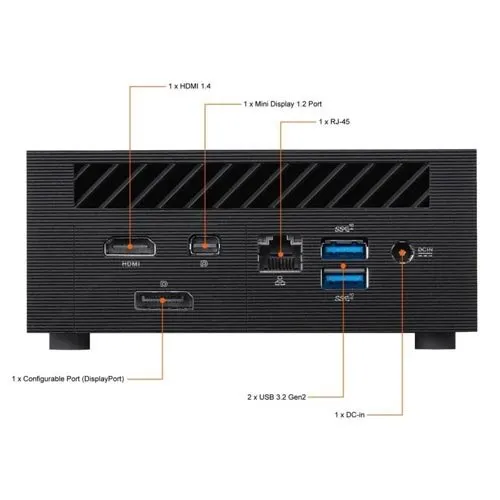

Back I/O Ports
2 x USB 3.2 Gen2, 1 x HDMI 1.4, 1 x Mini DP 1.2, 1 x Intel (RJ45)2.5G LAN, 1 x Configurable Port(options: Display Port 1.4/ COM/ VGA/ Intel 2.5G LAN), 1 x DC-in, 1 x Padlock ring
Configurable I/O
1 x Display1.4 Port (Barebone SKU)
1 x VGA Port (Barebone SKU)
1 x VGA Port
1 x Display1.4 Port
1 x COM Port (Barebone SKU)
Speaker No
Power Supply 19Vdc, 4.74A, 90W Power Adapter

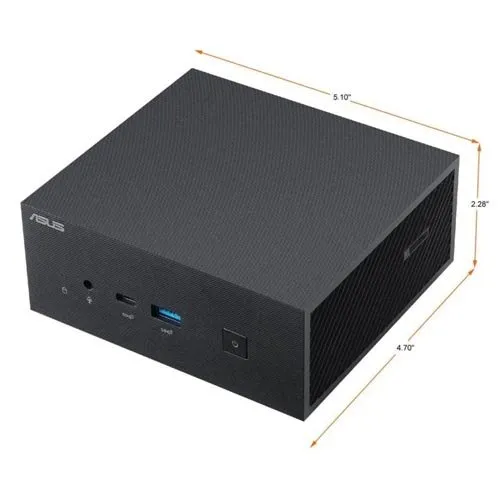

Dimensions (W x D x H) 120 x 130 x 58 mm
Weight 900g (include 2.5‰Û� HDD)
Color Black
Black (SI)

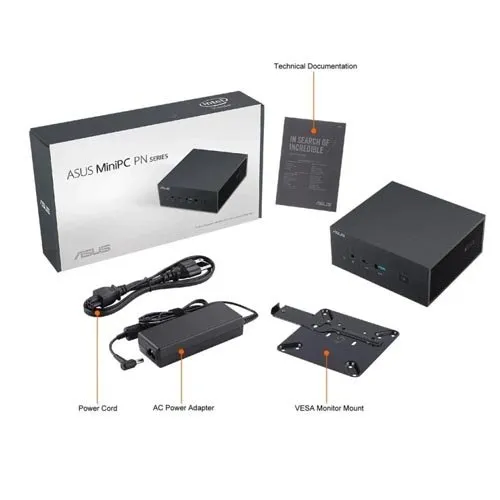

Accessories USB Keyboard & Mouse
WIRELESS KBM
Certificates BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Remark å_The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec).
