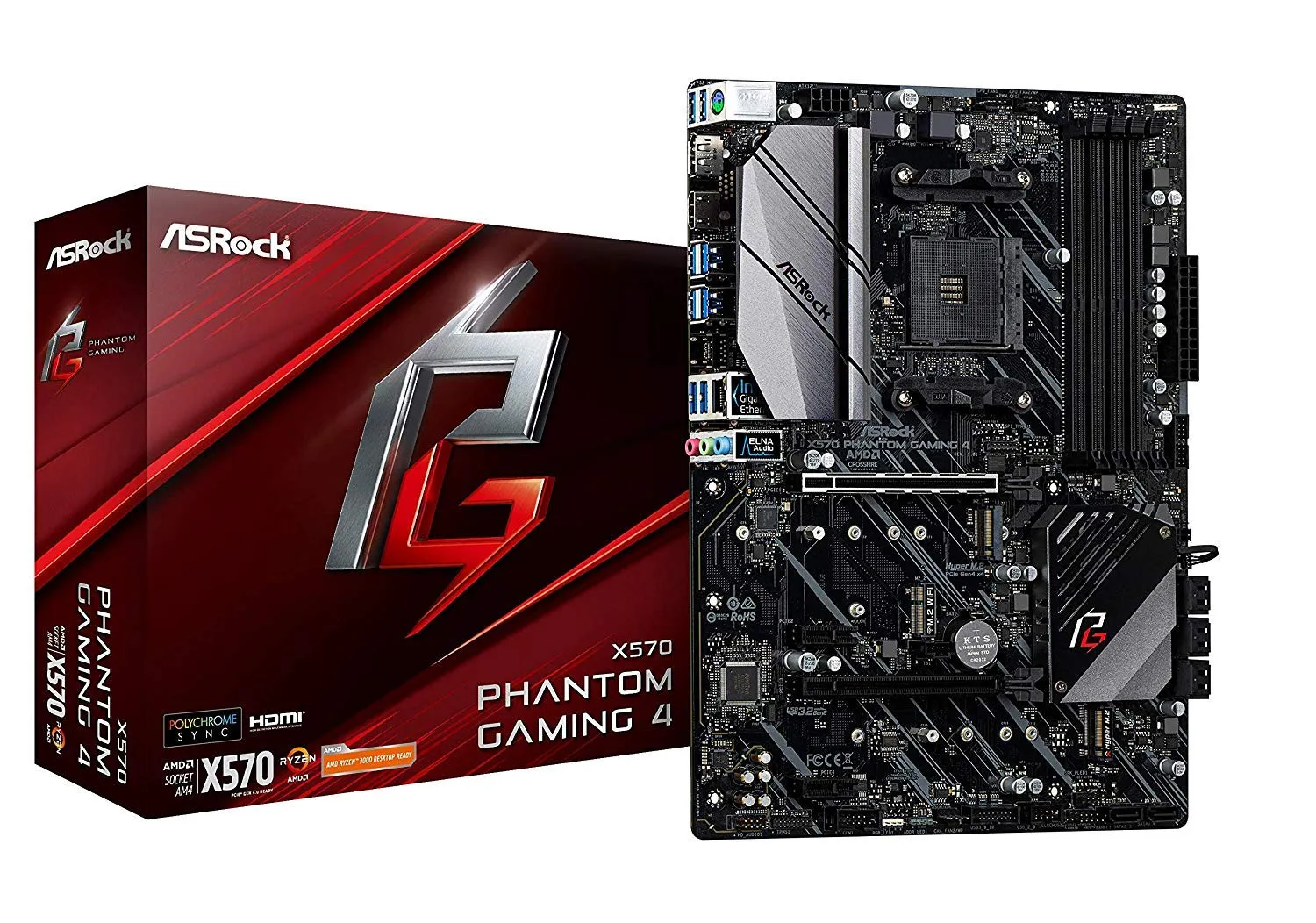

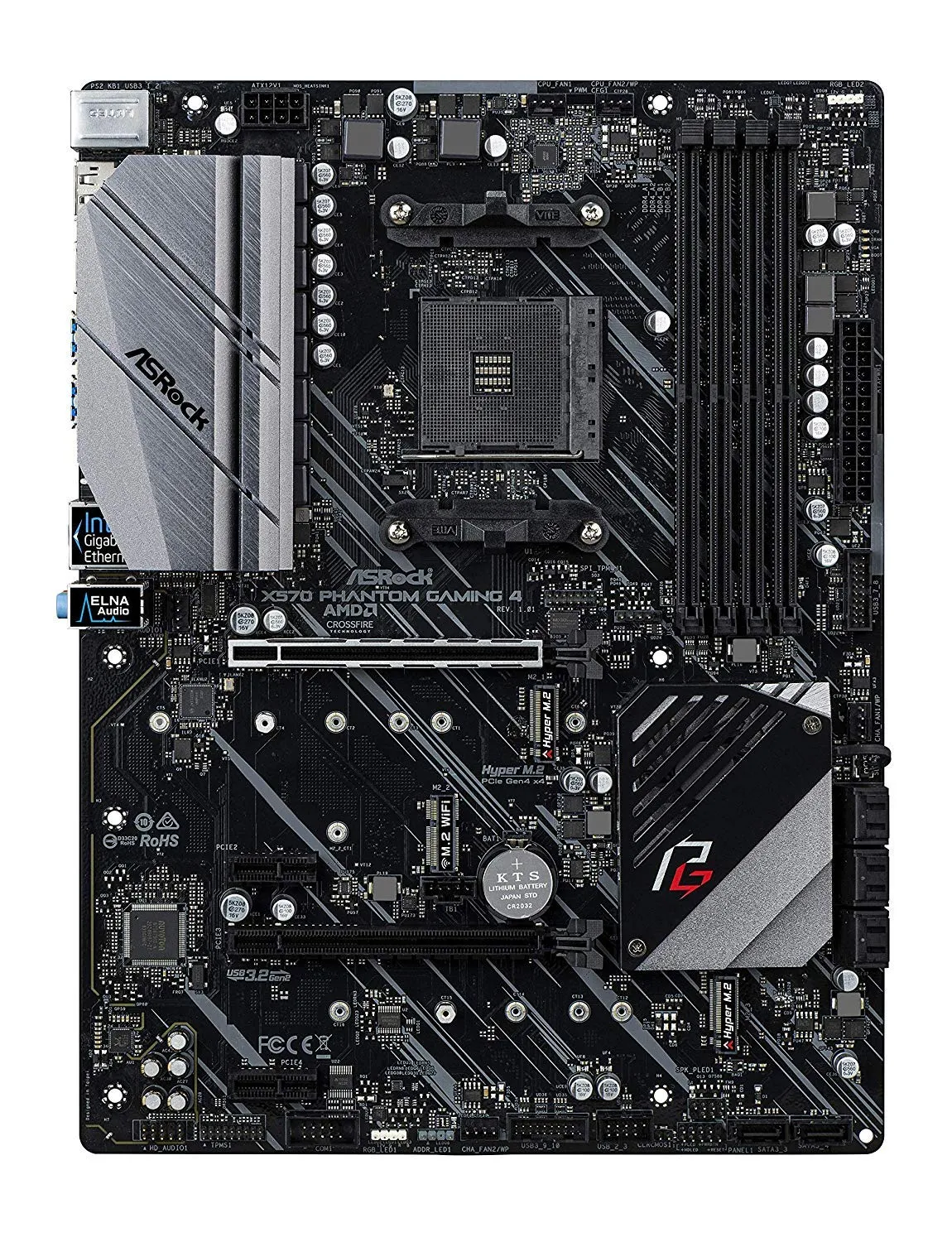

ASRock X570 Phantom Gaming 4 X570 AMD AM4 Motherboard

Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
10 Power Phase Design
Supports DDR4 4066+ (OC)
2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
AMD Quad CrossFireX and CrossFireX
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

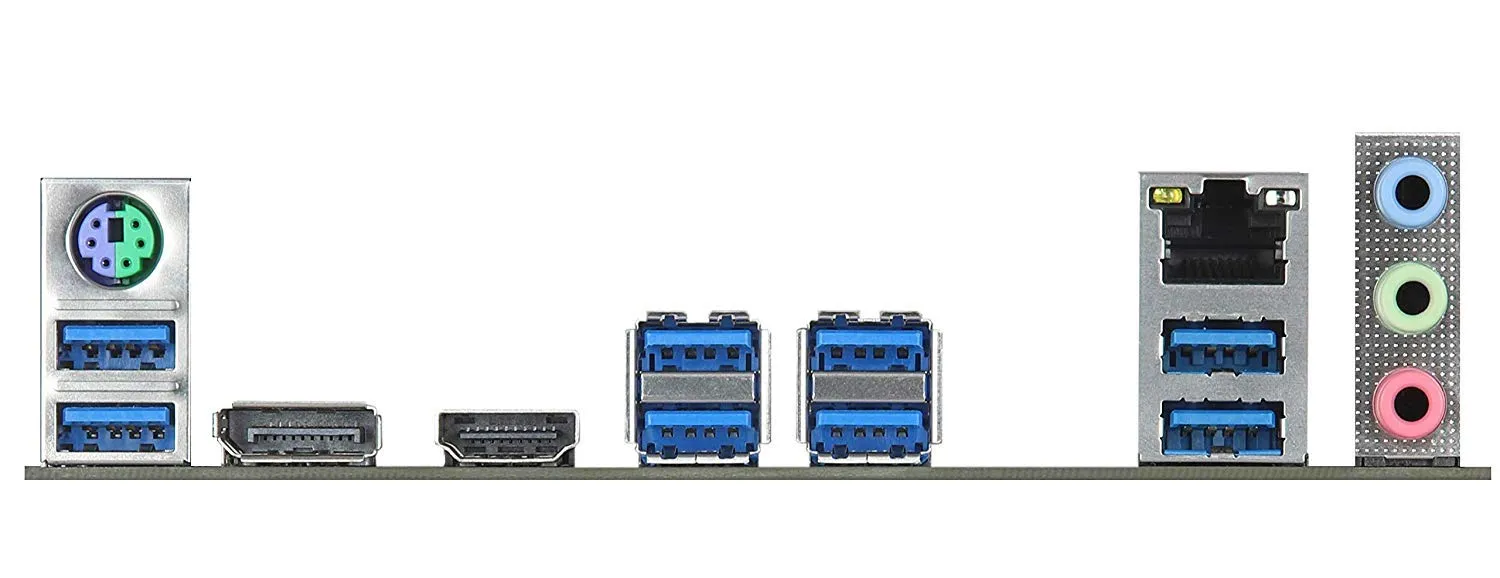

2 USB 3.2 Gen2 (Rear Type-A), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel Gigabit LAN
ASRock Polychrome SYNC

Specification :

Gaming Armor Memory
15ë_ Gold Contact in DIMM Slots
VGA Card
15ë_ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
Intel LAN
Cooling
XXL Aluminum Alloy Heatsink
Unique Feature ASRock USB 3.2 Gen2
ASRock USB 3.2 Gen2 Type-A Ports (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
Premium 50A Power Choke
Sapphire Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
Digi Power design
10 Power Phase design
Chipset AMD X570
Memory Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
Max. capacity of system memory: 128GB**
15ë_ Gold Contact in DIMM Slots
*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
