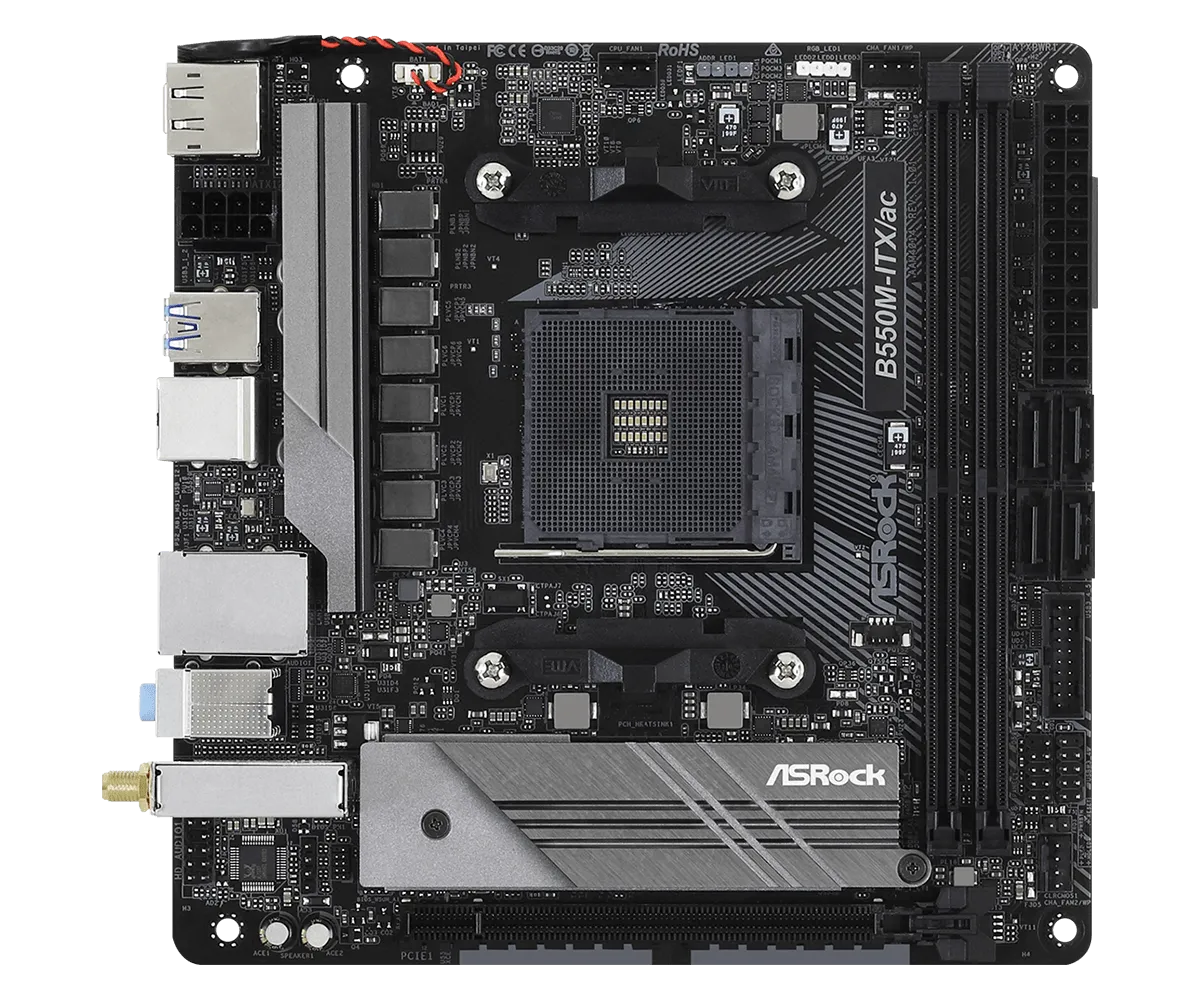

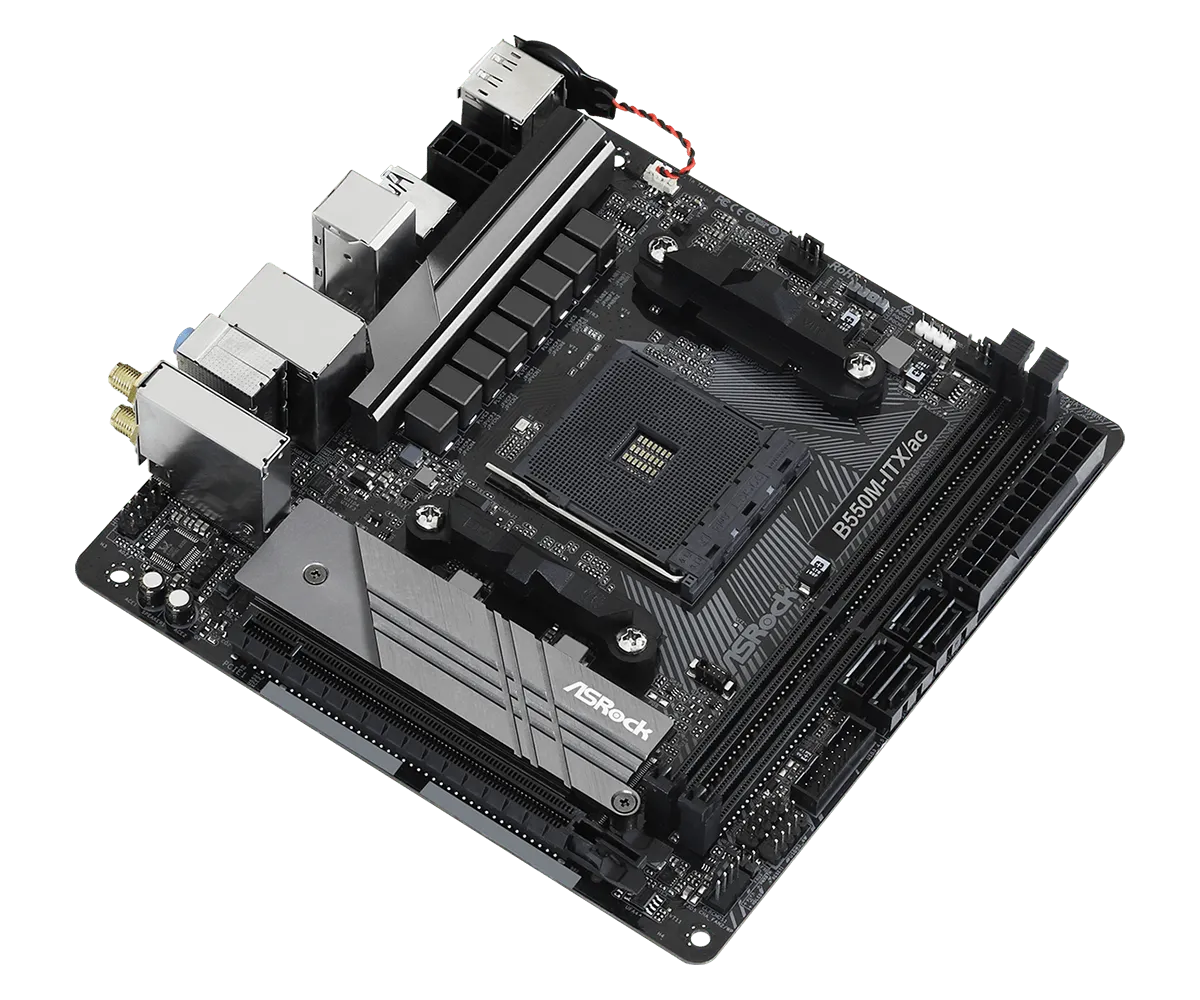

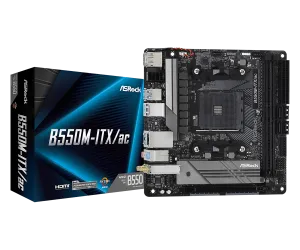

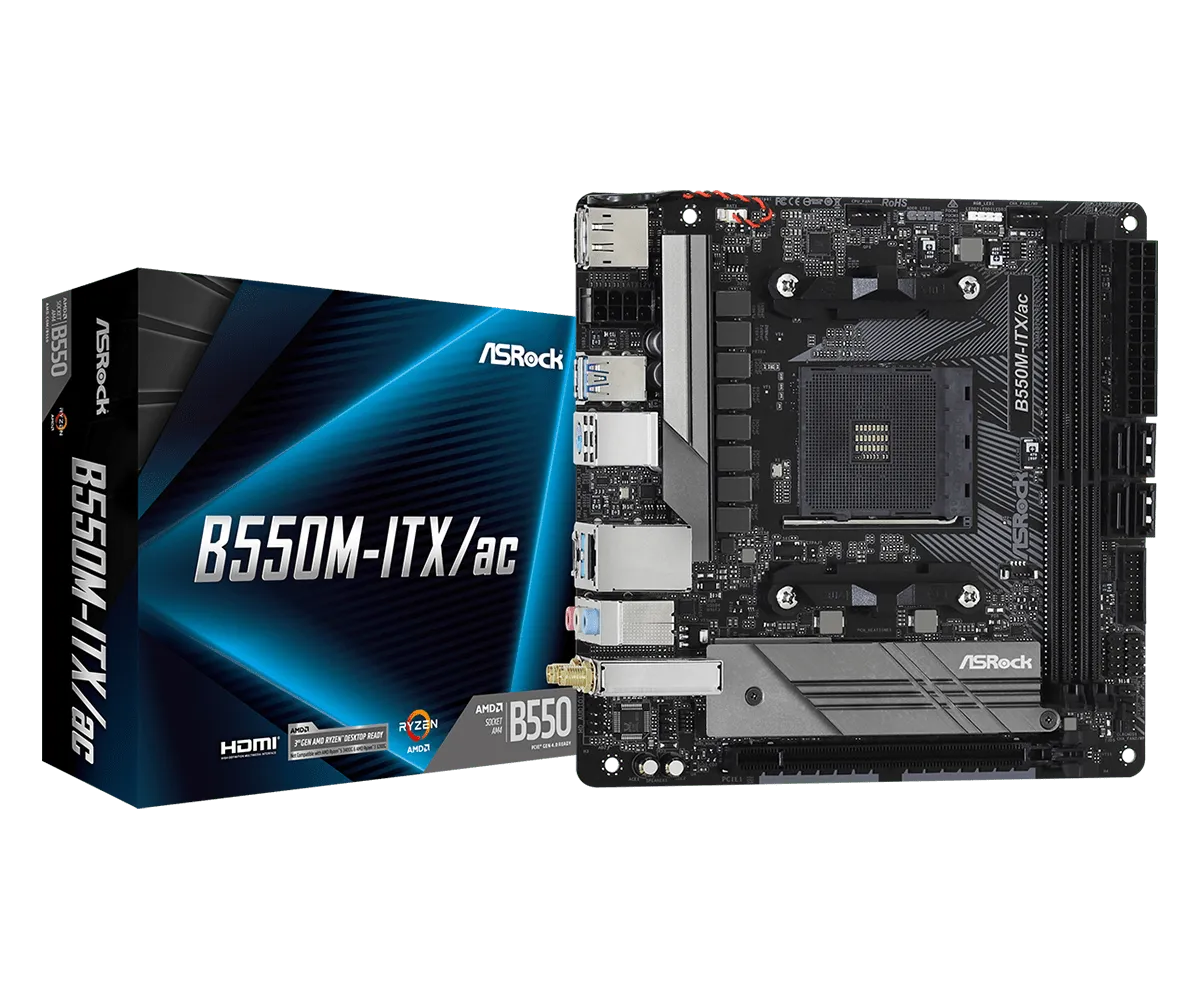

ASRock B550M-ITX/AC AM4 Mini-ITX Motherboard (AMD Socket AM4/3rd Gen Ryzen Series CPU/Max 64GB DDR4 4733MHz Memory)
Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16
Graphics Output: DisplayPort, HDMI
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
6 USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C)
Realtek Gigabit LAN
Intel 802.11ac WiFi + BT 4.2
Enhance your computing experience while enjoying a compact form factor system using the ASRock B550M-ITX/AC AM4 Mini-ITX Motherboard. Powered by the AMD B550 chipset, this motherboard supports third-generation AMD Ryzen processors with the AM4 socket for high-end video games and content creation. The chipset takes full advantage of the large PCIe 4.0 data bandwidth to handle demanding tasks such as 4K live streaming, video editing, and gaming at high settings. Up to 64GB of dual-channel ECC and non-ECC DDR4 RAM, reaching 4733 MHz when overclocked, can be installed across two memory slots to improve the system multitasking capabilities and speed. The mini-ITX motherboard also features advanced cooling and supports one M.2 SSD alongside up to four SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Its PCIe 4.0 x16 slot can accommodate a high-power graphics card or other compatible expansions. You can take advantage of AMD Ryzen processors with integrated graphics by connecting monitors to the motherboard DisplayPort 1.4 and HDMI 2.1 ports.
Connect peripherals such as mice and keyboards to the USB 2.0 Type-A USB 3.2 Gen 1 Type-A ports while reserving the USB 3.2 Gen 2 Type-C for compatible devices to transfer data at up to 10 Gb/s. The B550M-ITX/AC also features fast network connections through its Gigabit Ethernet port and built-in 802.11ac Wi-Fi, which wirelessly transfers up to 433 Mb/s, providing you with the bandwidth needed for online games, video streaming, and live stream broadcasts. Other features include audio driven by the Realtek ALC887 7.1-channel audio codec that is designed to deliver immersive experiences. Windows 10 64-bit is required to take advantage of all the motherboard features.
PCIe 4.0 Memory Bandwidth
The ASRock B550M-ITX/AC pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
Storage and Memory
One M.2 slot is available, supporting up to type 2280 NVMe PCIe and SATA SSDs.
Four SATA III ports are available for hard drives and 2.5‰Û_ SSDs.
Supports RAID 0, 1, and 10.
Up to 64GB of dual-channel ECC DDR4-4733 (OC) memory can be installed across two slots.
Electrical Performance
The motherboard has a digital 8 power phase design with Dr. MOS is optimized to deliver up to 50A of continuous current through each phase. High-quality 60A alloy chokes alongside durable capacitors deliver power to critical components such as the CPU.
Durable Design
M.2 SSD slot armor helps to maintain optimal temperatures for high performance.
The PCB has a high-density glass fabric design that reduces gaps between layers to protect against electrostatic discharge and humidity.
Comprised of various technologies, ASRock Full Spike Protection helps to prevent damage to your motherboard components from unexpected voltage spikes.
Fully Connected
In addition to its USB 2.0 ports, this motherboard includes USB 3.2 Gen 1 ports that can transfer data at up to 5 Gb/s with compatible devices. The USB 3.2 Gen 2 Type-C port has a maximum throughput of 10 Gb/s.
Integrated Graphics
The DisplayPort 1.4 HDMI 1.2 ports support 4K monitors, which allow you to take advantage of AMD Ryzen CPUs that have integrated graphics.
Fast Network Connectivity
A Gigabit Ethernet port with enhanced lightning and electrostatic discharge protection high-speed network wired connections with compatible devices.
Built-in 802.11ac Wi-Fi that delivers up to 433 Mb/s.
Bluetooth 4.2 technology allows you to pair wireless devices such as headphones, keyboards, mice, and more.
Immersive Audio
The integrated Realtek ALC887 audio technology is designed to deliver detailed sound with 7.1-channel playback.
Polychrome RGB Lighting
ASRock Polychrome technology allows you to connect, customize, and control lighting equipment such as RGB LEDs and light strips on the onboard RGB headers. You can choose from a variety of lighting presets, which can be synchronized with capable peripherals such as keyboards, mice, CPU coolers, and more. The addressable RGB headers can detect the number of LEDs on a compatible device to further tailor the lighting effects.
Specification :
Unique Feature ASRock Super Alloy
Premium 60A Power Choke
50A Dr.MOS
Sapphire Black PCB
High Density Glass Fabric PCB
Intel 802.11ac WiFi
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors*
Digi Power design
8 Power Phase design
*Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
Chipset AMD B550
Memory Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
Max. capacity of system memory: 64GB**
Supports Extreme Memory Profile (XMP) memory modules
15ë_ Gold Contact in DIMM Slots
