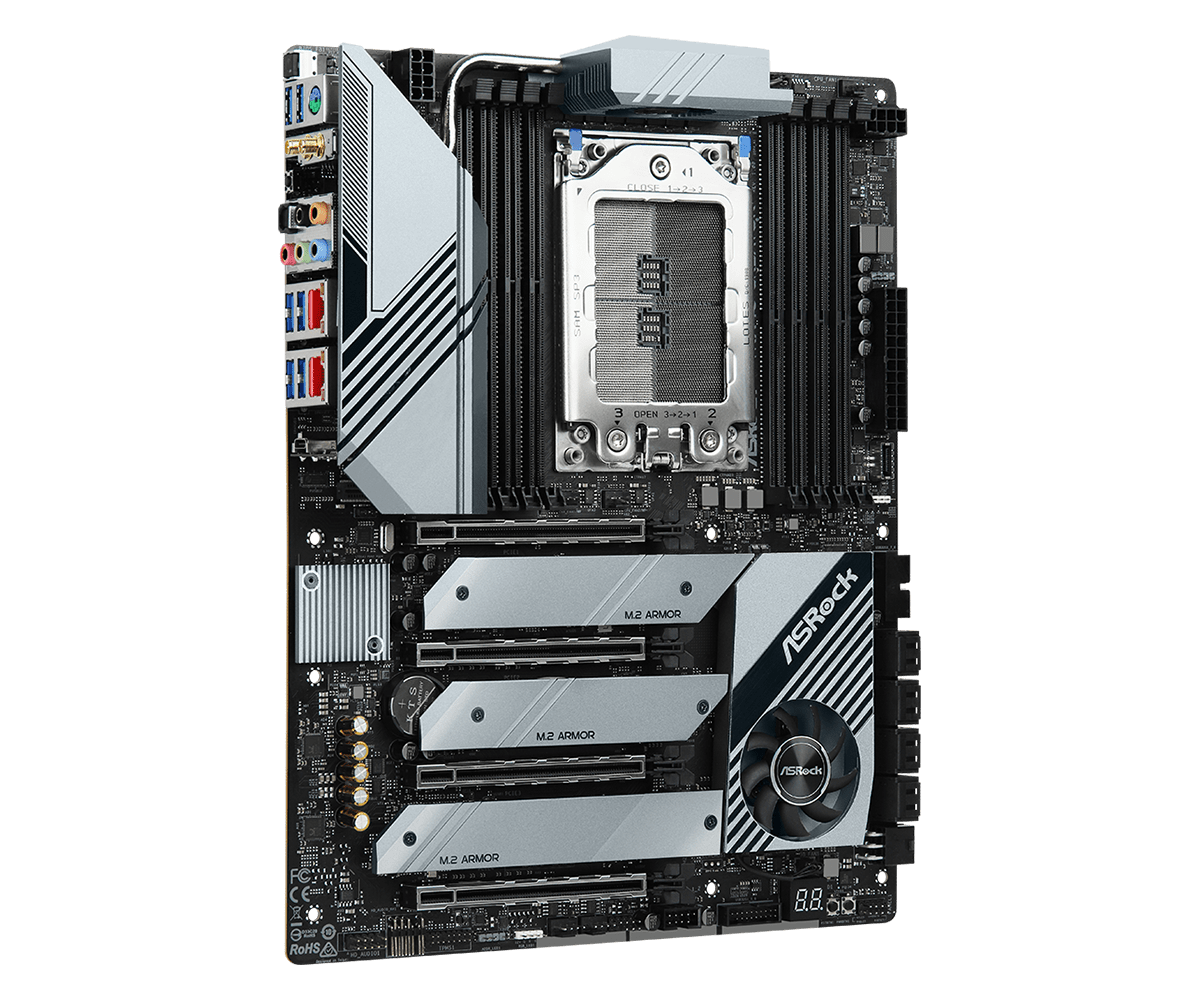

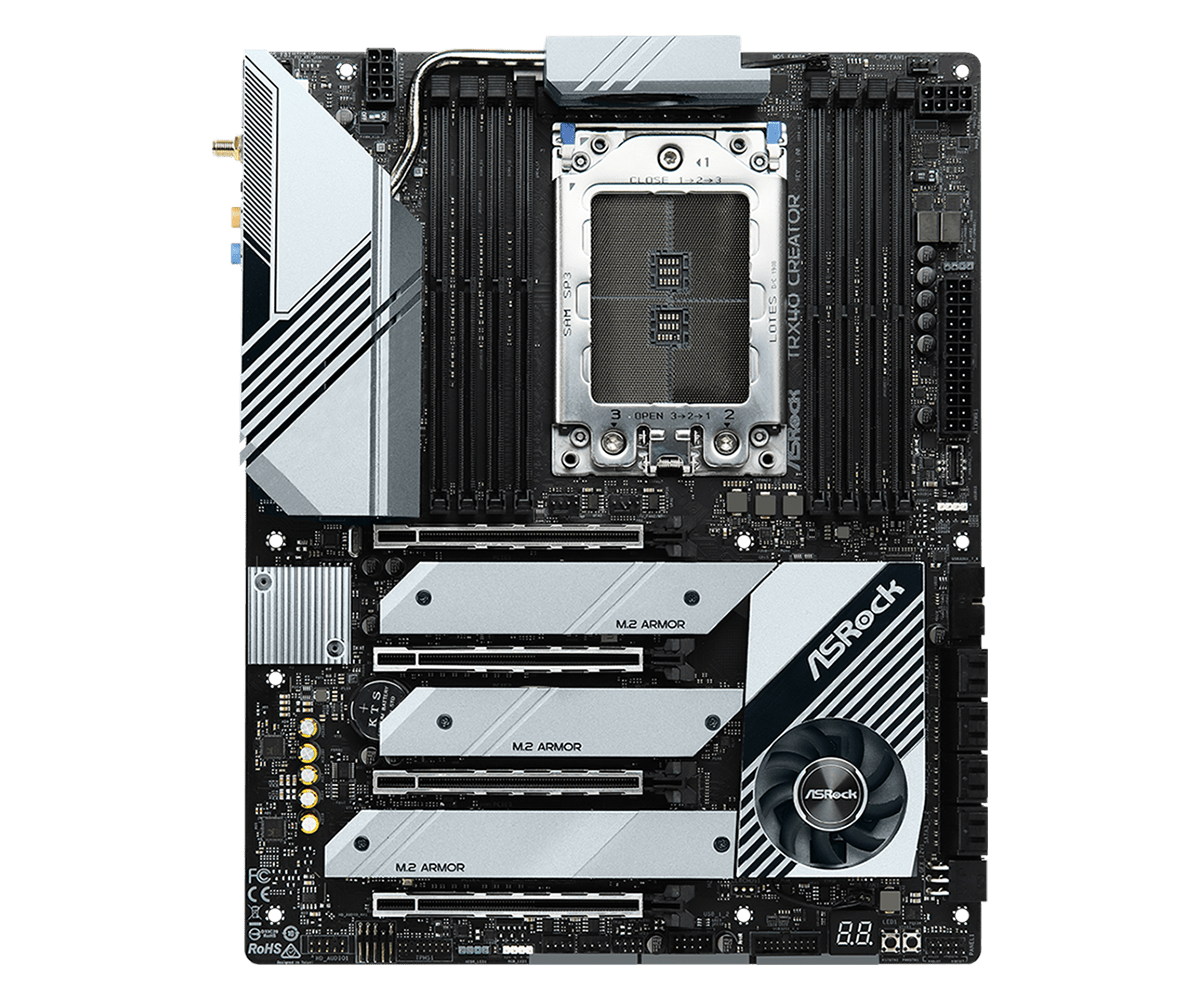

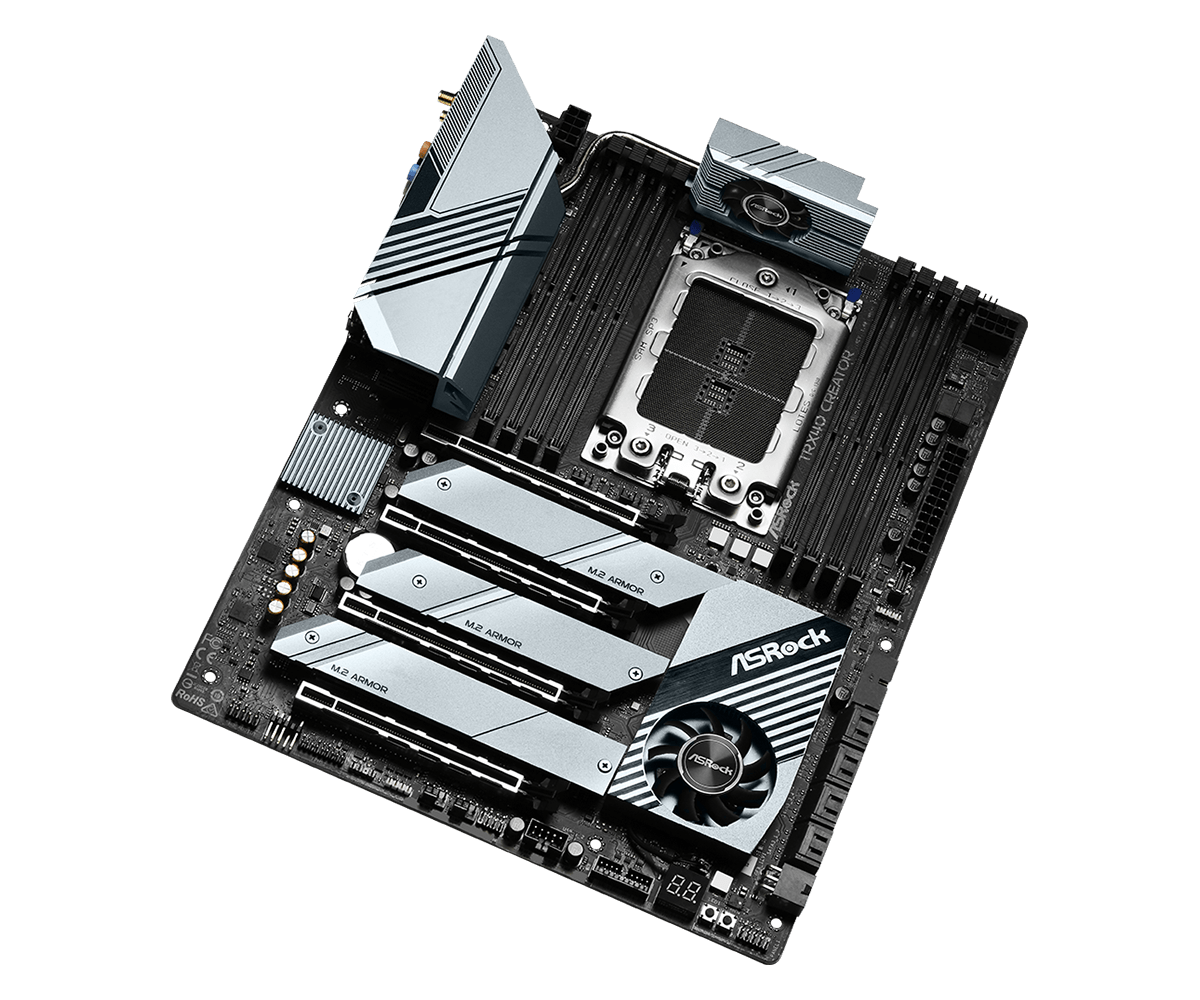

ASROCK TRX40 CREATOR (WI-FI) MOTHERBOARD (AMD SOCKET STRX4/3RD GEN RYZEN THREADRIPPER SERIES CPU/MAX 256GB DDR4 4666MHZ MEMORY)

Supports 3rd Gen AMD Ryzen Threadripper Processors
8 Power Phase Design, 90A Dr. MOS & Power Choke
XXL Aluminum Alloy Heatsink & Heatpipe Design
Supports DDR4 4666+(OC)
4 PCIe 4.0 x16
NVIDIA NVLINK , 4-Way SLI , AMD 4-Way CrossFireX
8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 Rear USB 3.2 Gen2 x2 20Gb/s Type-C
3 USB 3.2 Gen2 (1 Front Type-C, 2 Rear)
8 USB 3.2 Gen1 (4 Front, 4 Rear)
7.1 CH HD Audio (Realtek ALC4050H+ALC1220), Supports Purity Sound 4 & DTS Connect
AQUANTIA 10G LAN, Realtek 2.5G LAN
Intel Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

Specification :

Unique Feature ASRock USB 3.2 Gen2
ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
Premium 90A Power Choke
90A Dr.MOS
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Matte Black PCB
High Density Glass Fabric PCB
8 Layer PCB
2oz Copper PCB
Server-Grade Low-Loss PCB
2.5G LAN
AQUANTIA 10G LAN
Intel 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports AMD Socket sTRX4
Intersil Digital PWM
8 Power Phase design
Supports ASRock Hyper BCLK Engine II
Chipset AMD TRX40
Memory Quad Channel DDR4 Memory Technology
8 x DDR4 DIMM Slots
Supports DDR4 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory (U-DIMM)
Max. capacity of system memory: 256GB
15ë_ Gold Contact in DIMM Slots
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Supports ‰ÛÏPlug and Play‰Û�
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
Graphics n/a
Audio 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
Premium Blu-ray Audio support
Supports Surge Protection
Supports Purity Sound 4
Nichicon Fine Gold Series Audio Caps
NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
Pure Power-In
Direct Drive Technology
PCB isolate shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15ë_ Gold Audio Connector
Supports DTS Connect
LAN 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (AQUANTIA AQC107):
Supports Lightning/ESD Protection
Supports PXE
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Wireless LAN Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports WiFi6 802.11ax (2.4Gbps)
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.0 + High speed class II
Supports MU-MIMO
Slots 4 x PCI Express 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE3); triple at x16 (PCIE1) / x16 (PCIE3) / x8 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE3) / x8 (PCIE4))*
Supports AMD 4-Way CrossFireX , 3-Way CrossFireX and CrossFireX
Supports NVIDIA 4-Way SLI , 3-Way SLI and SLI
Support NVIDIA SLI with NVIDIA Quadro graphics cards
Supports NVIDIA NVLink with dual NVIDIA GeForce RTX series graphics cards**
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
15ë_ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE3)
*Supports NVMe SSD as boot disks
**NVIDIA NVLink Bridge does not come with the package. Please purchase it from NVIDIA if necessary.
Storage 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
2 x Hyper M.2 Sockets (M2_1 and M2_2), support M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)*
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)
*Supports NVMe SSD as boot disks
Connector 1 x TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15ë_ Gold Audio Connector)******
1 x Right Angle Front Panel Audio Connector******
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Dr. Debug with LED
1 x Power Button
1 x Reset Button
1 x CPU Xtreme OC Switch
*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
Fans connected to CHA_FAN3/WP will use the same settings as CHA_FAN2/WP.
******Connect the audio device to either one of the audio connectors.

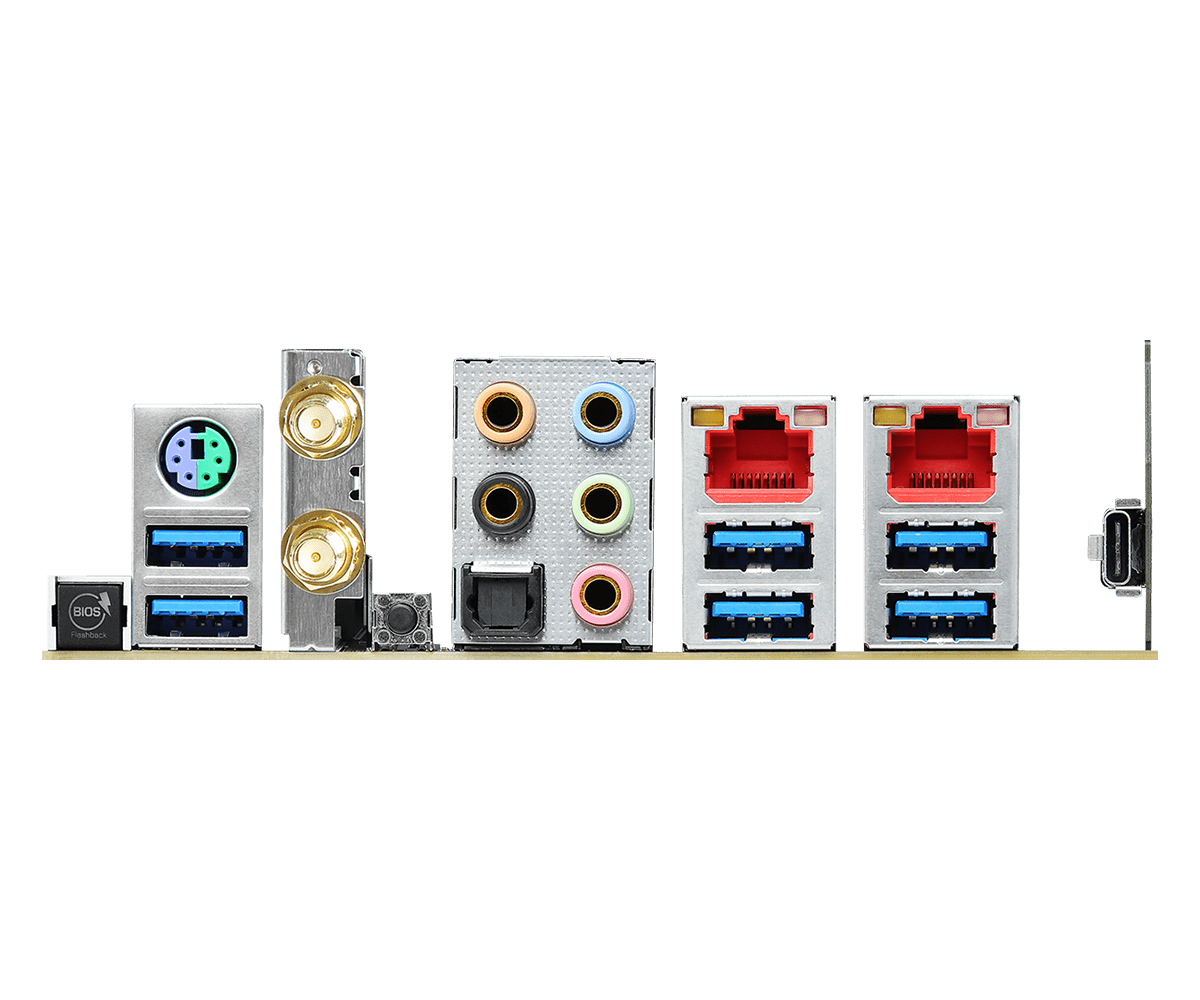

Rear Panel I/O 2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x Optical SPDIF Out Port
2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)*
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*Ultra USB Power is supported on USB32G2_1_2 ports.
ACPI wake-up function is not supported on USB32G2_1_2 ports.
Software and UEFI Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC*
UEFI
ASRock Full HD UEFI
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories Quick Installation Guide, Support CD, I/O Shield
4 x SATA Data Cables
1 x ASRock SLI_HB_Bridge_3S Card
1 x ASRock WiFi 2.4/5 GHz Antenna
3 x Screws for M.2 Sockets
3 x Standoffs for M.2 Sockets
Hardware Monitor Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
8 Layer PCB
2oz Copper PCB
OS Microsoft Windows 10 64-bit
Certifications FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
