Antec HCG850 850 Watts 80 Plus Bronze Full Modular Power Supply

Antec HCG850 850 Watts 80 Plus Bronze Full Modular Power Supply

FEATURES
Dimension: 165(L)*150(W)*86(H)
Guaranteed 850W Continuous Power from Antec
100% Modular•_�Improves airflow and reduces clutter
DC-DC-Based on a DC-DC topology
80 PLUS Bronze certified•_�Up to 89% efficient, to reduce your electricity bill
Antec Quality 5-year warranty and lifetime global 24/7 support
135mm DBB Fan•_�Whisper-quiet high-quality double ball bearing fan with long lifetime
99%+12V Output for maximum CPU &s; GPU support
CircuitShield •_�Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO
100% Japanese capacitors achieve unprecedented tight voltage regulation &s; low ripple &s; noise to maximize your system performance
28(18+10) pin MBU socket For possible future MBU connectors
ATX12V 2.4•_�Engineered according to the newest PSU guideline and compatible with the latest CPU generation

Model HCG850 Bronze
Type ATX 12V 2.4
Modular Fully Modular
Dimension (W x L x H) 165(L)*150(W)*86(H)
Warranty 5 years
Input Voltage 100-240 VAC å±10%
Input Current 12A-6A
Input Frequency Range 50Hz-60Hz
PFC Active PFC (>0.9 typical)
Power Good Signal 100-500ms
Efficiency 89% Typically
Protection OCP/OVP/SCP/OPP/OTP/SIP/NLO
Output Capacity 850W
Operation Temperature 0~40å¡C
Regulatory cTUVus/TUV/CB/RCM/CE/EAC/FCC
Fan 135mm DBB Fan
Certifications 80 Plus Bronze

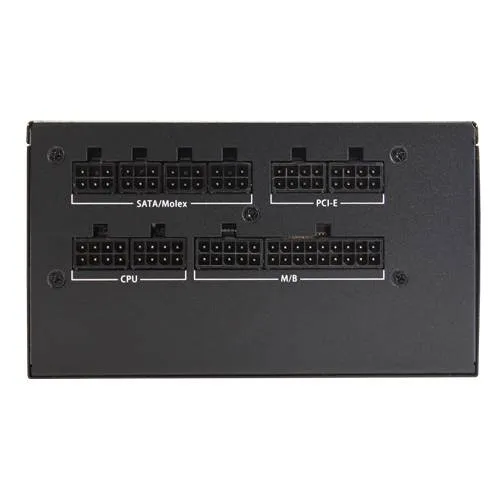

Connector 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
4 x 8(6+2) Pin PCI-E
9 x SATA
4 x Molex
1 x FDD
Net Weight 1.68 kgs
Gross Weight 2.99 kgs
