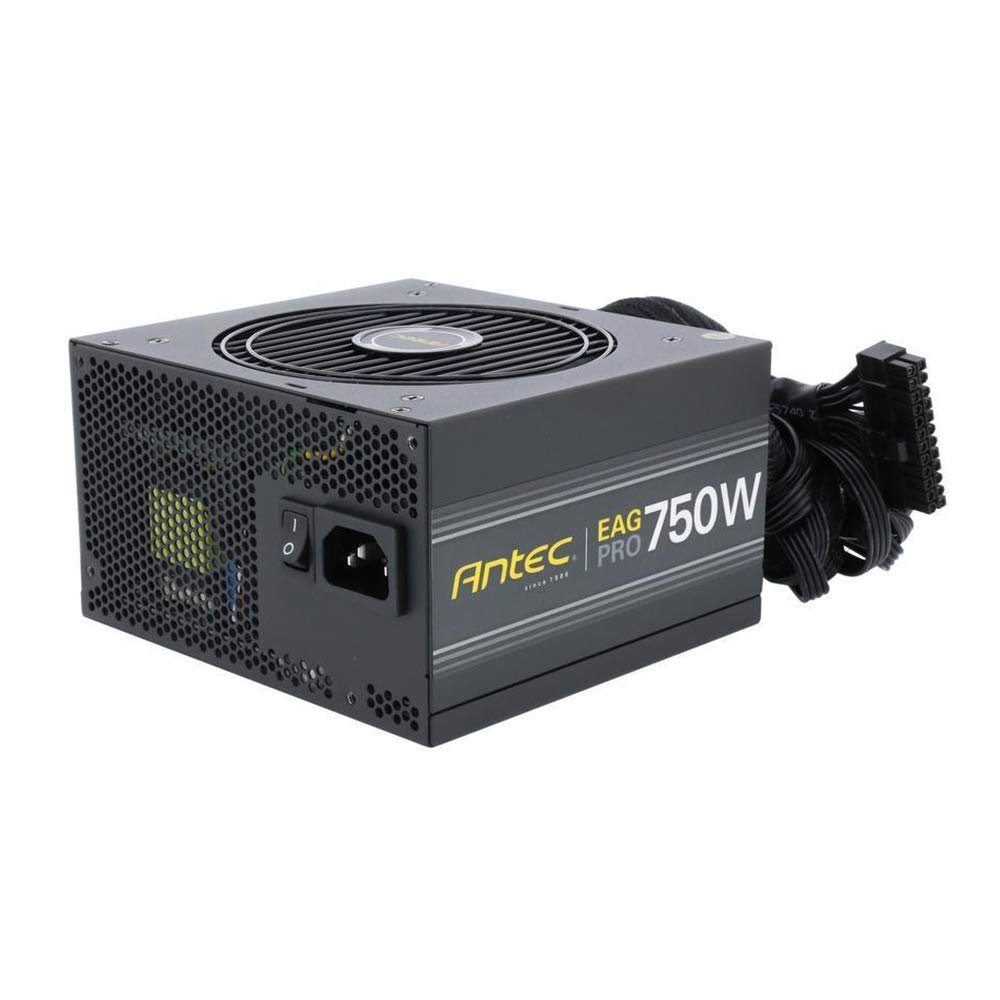

Antec Earthwatts Gold Pro Series EA750G Pro 750W 80 PLUS GOLD Certified Semi-Modular PSU

750W Continuous Power Guaranteed 650W of Continuous Power from Antec
80 PLUS Gold certified Up to 92% efficient, to reduce your electricity bill
AQ7 Antec Quality 7 year warranty and lifetime global 24/7 support
120 mm Silence Whisper-quiet high-quality fan with long lifetime
Semi-modular cable management Improves airflow and reduces clutter
99% 12V Output for maximum CPU & GPU support
Japanese Heavy-Duty Caps High-performance capacitors ensure DC stability and regulation
4 x PCI-E connectors for multiple GPU support
ATX12V 2.4 Engineered according to the newest PSU guideline and compatible with the latest CPU generation
PhaseWave Design A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
ErP Lot 6: 2013 Compliant to the toughest energy standard available
CircuitShield Full suite of industrial grade protections: Over Current Protection (OCP),
Over Voltage Protection (OVP), Short Circuit Protection (SCP),
Over Power Protection (OPP), Over Temperature Protection (OTP),
Under Voltage Protection (UVP), Surge & Inrush Protection (SIP),
No Load Operation (NLO)
Specification :

Model
Brand : Antec
Model : EA750G Pro
Series : Earthwatts Gold Pro Series

Details
Type : ATX12V 2.4
Maximum Power : 750W
Fans : 1 x Whisper-quiet 120mm fan
PFC : Active
Main Connector : 24Pin
12V Rails : Single
PCI-Express Connector : 4 x 6 2-Pin
SATA Power Connector : 8
Modular : Semi-Modular
Efficiency : > 90%
Energy-Efficient : 80 PLUS GOLD Certified
Over Voltage Protection : Yes
Input Voltage : 100 240 V
Input Frequency Range : 50/60 Hz
Input Current : 9A 4.5A
Output : 3.3V@20A, 5V@20A, 12V@62A, -12V@0.3A, 5VSB@3.0A
Approvals : UL, FCC, cTUVus
Dimensions : 10.80‰Û_ x 7.20‰Û_ x 4.50‰Û_
Weight : 4.94 lbs.

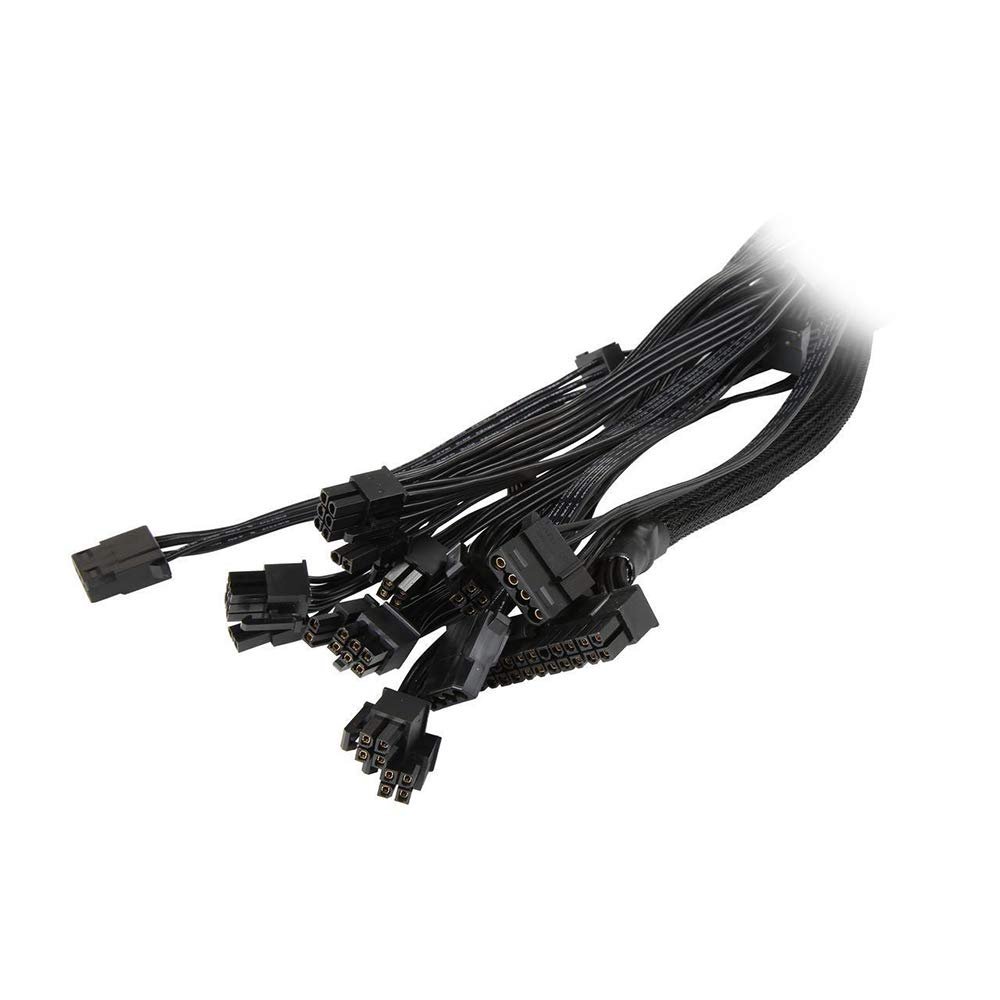

Connectors
1 x 24 pin
4 x 6 2 PCI-E
8 x SATA
3 x Molex
2 x 4 4 Pin ATX/EPS
