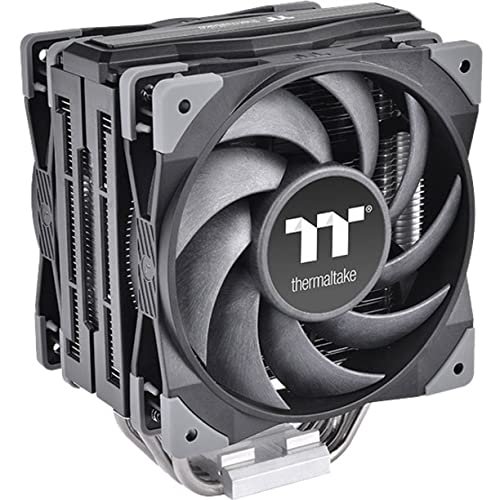

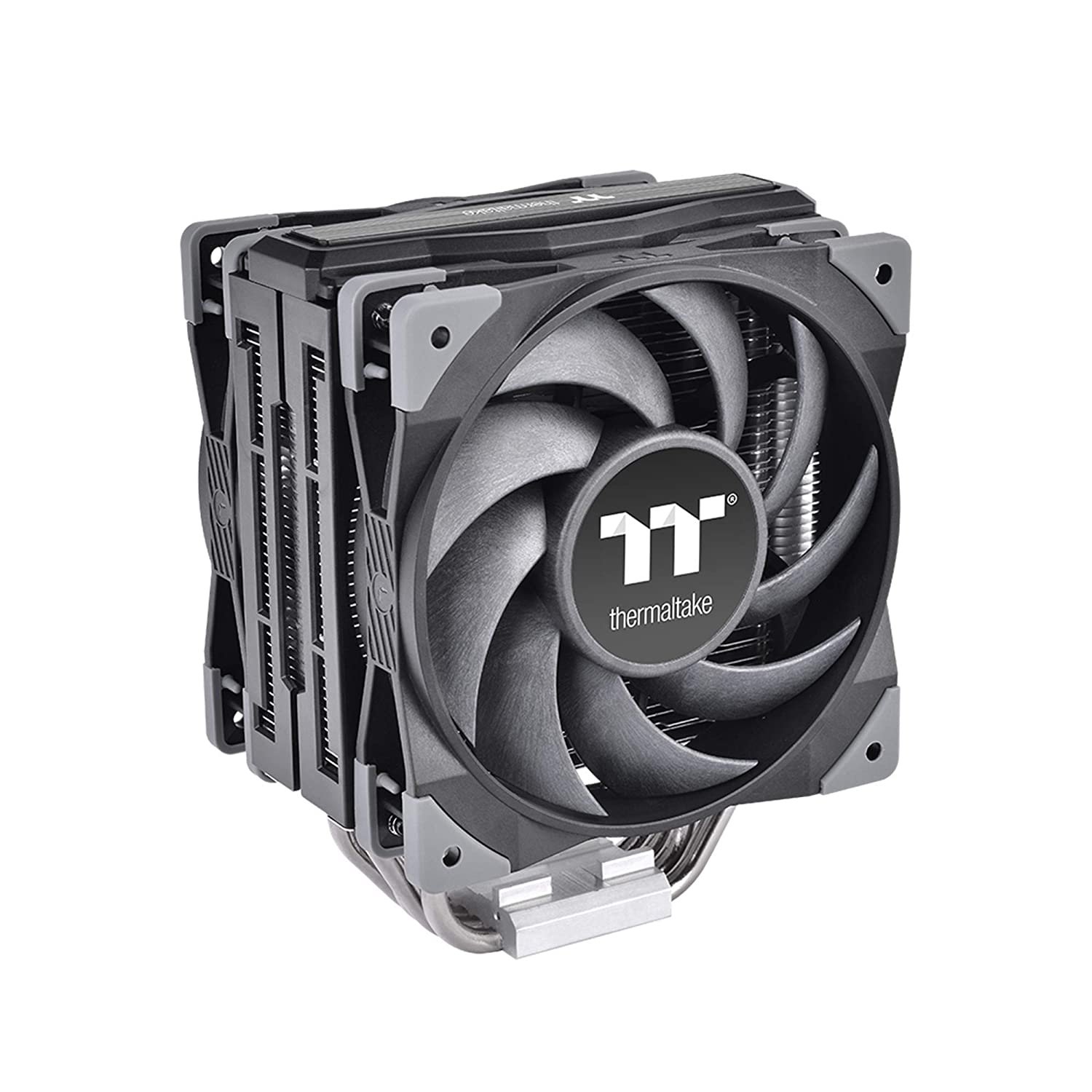

Thermaltake TOUGHAIR 510 CPU Cooler CL-P075-AL12BL-A

In stock

A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.

Compare
SKU: IGO-20221010-703 Category:

A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.

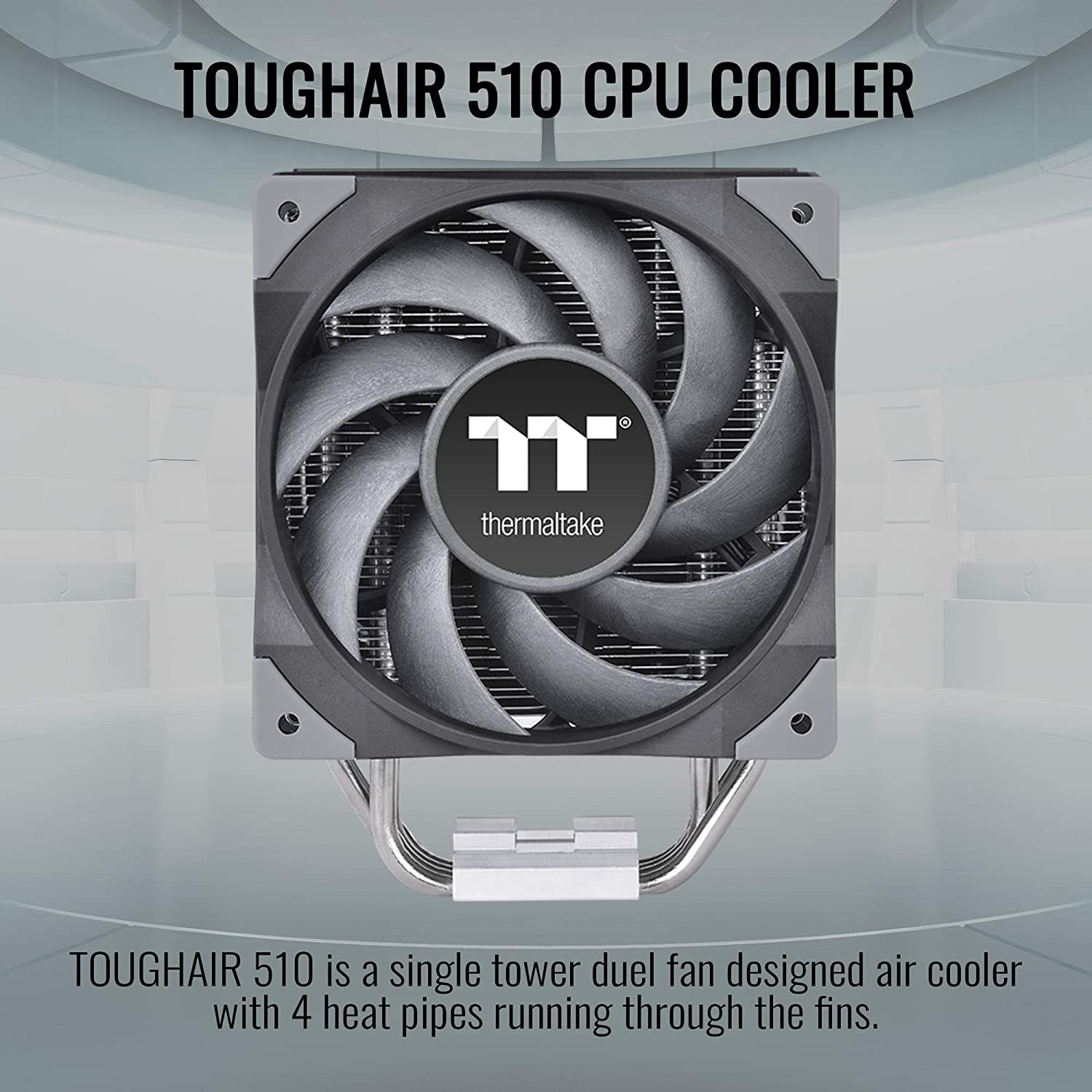

Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

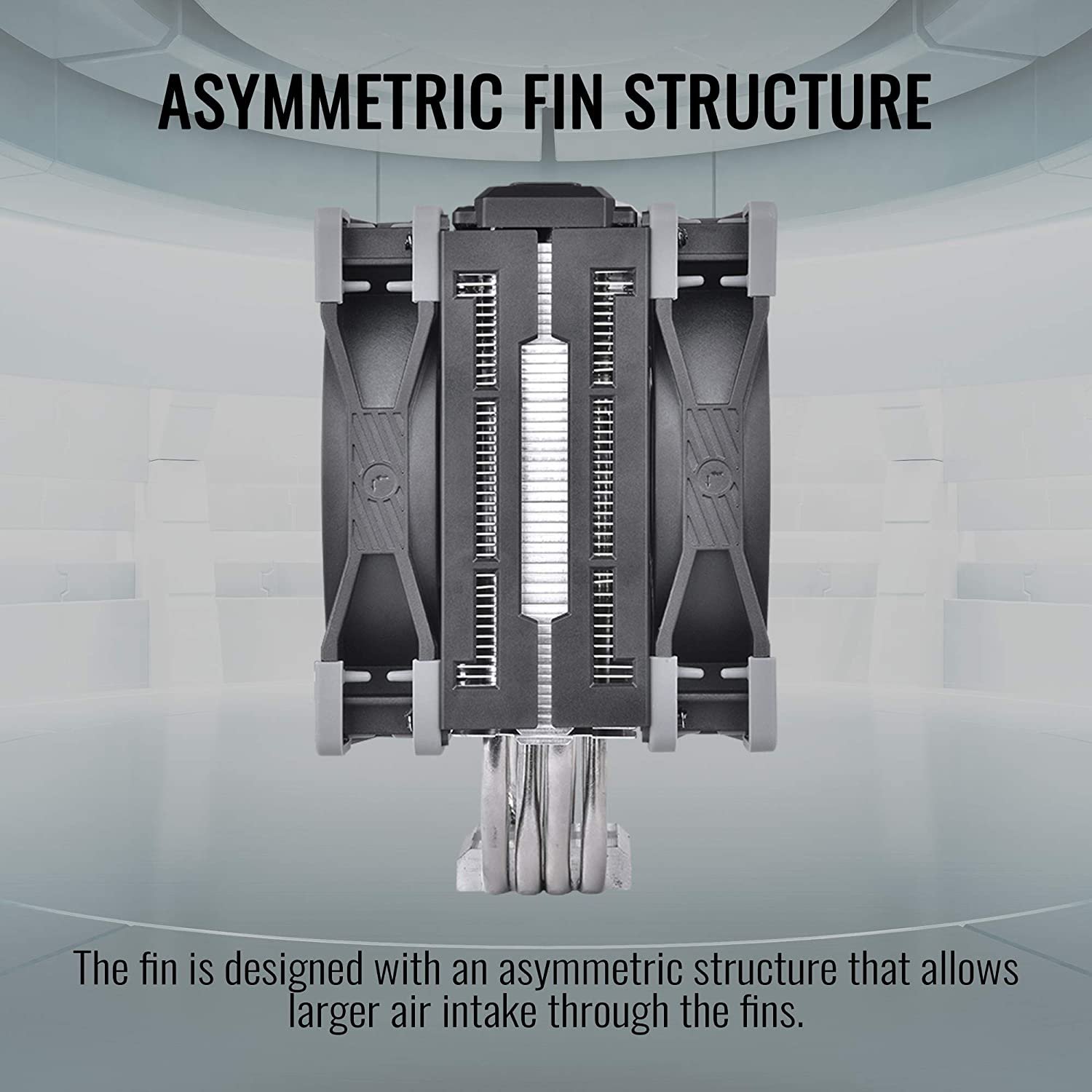

Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

High-Performance U-shape copper heat pipes
4 x Ì÷6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

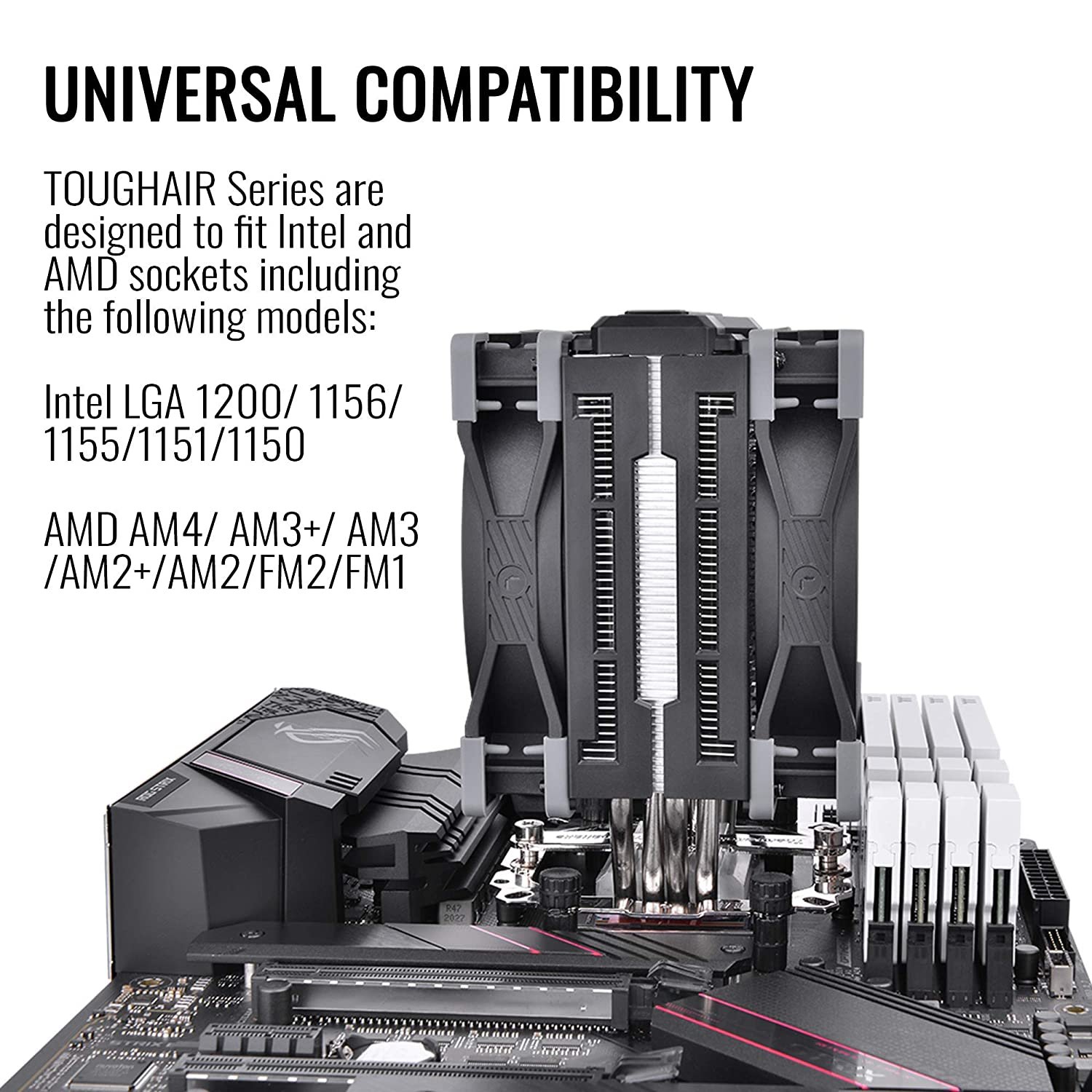

Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:

Intel LGA 1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Specification :

P/N CL-P075-AL12BL-A
COMPATIBILITY Intel LGA 1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
DIMENSIONS 123.6 x 98.8 x 159.5 mm ( L x W x H)
HEATSINK MATERIAL Aluminum Fins
Copper Heatpipes
HEATPIPE ë_6mm x 4 pcs
FAN DIMENSION 120 x 120 x 25 mm ( L x W x H)
FAN QUANTITY 2 pcs
FAN SPEED PWM 500 ~ 2000 RPM
RATED VOLTAGE 12V
START VOLTAGE 6.0 V
RATED CURRENT 0.48 A
POWER INPUT 5.76 W (one fan )
AIR FLOW 58.35 CFM (one fan )
AIR PRESSURE 2.41 mm-H2O (one fan)
ACOUSTICAL NOISE 23.6 dBA
LIFE TIME/FAN LIFE TIME 40,000 hours
PIN CONNECT 2510 4Pin
COOLING POWER 180 W
