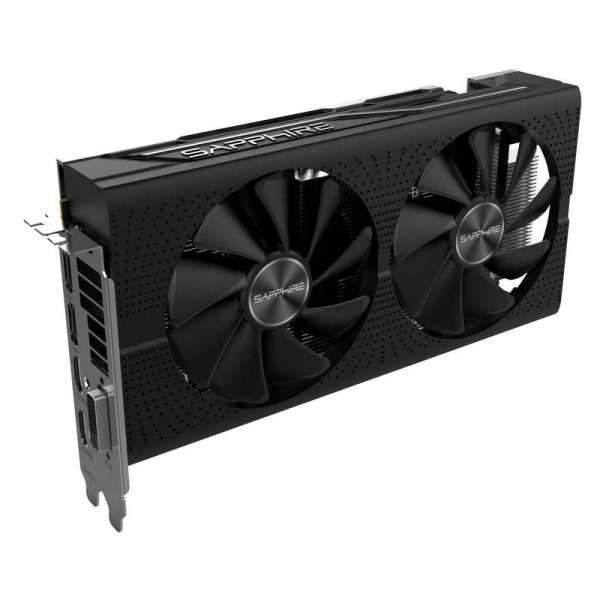

SAPPHIRE GRAPHICS CARD RADEON RX 570 4GB GDDR5 OC PULSE (11266-04-41G)

In stock

4GB GDDR5 Memory
256-bit Bus Memory
700MHz Memory Clock
3.0 PCI Express
500W Wattage power supply

Compare
SKU: IGO-30102022-1157 Category:

Memory Size 4GB GDDR5

Interface PCI-Express 3.0

Memory Bus 256-bit

Max Display Support 5

Clock Speed 1340 MHz

TECHNICAL SPECIFICATION

GPU_ RX 570, 14 nm FinFET
4th Graphics Core Next (GCN)
Engine Clock_ Up to 1340 MHz, Boost
Stream Processors_ 2048
Memory Size/Bus_ 4GB GDDR5/256-bit
Memory Clock_ 7000 MHz effective
Displays_ Maximum 5 Outputs
Interface_ PCI-Express 3.0
Resolution_ DisplayPort: 51202880@60Hz
HDMI: 40962160@60Hz
DVI:25601600@60Hz
Output_ 1x DVI-D
2x HDMI
2x DisplayPort 1.4
BIOS Support_ Dual-UEFI
API_ OpenGL 4.5
OpenCL 2.0
DirectX 12
Shader Model 5.0
Game Index_ 1080p
Sapphire Features_ NITRO Fan Check
NITRO Quick Connect System
NITRO Glow RGB LED
NITRO CoolTech(NCT)
Intelligent Fan Control III
Precision Fan Control
Robust VRM Cooling
Long Life Polymer Capacitor
Fuse Protection
Dual UEFI
AMD Features_ Radeon VR Ready Premium
Radeon Software
Radeon FreeSync Technology
AMD LiquidVR Technology
4th Gen GCN Architecture
Radeon Chill
Radeon ReLive DirectX 12 Technology
AMD Eyefinity Technology (Gaming)
AMD App Acceleration
AMD CrossFire Technology
AMD CrossFire (Bridgeless)
3rd Gen 14nm Process Technology
OpenCL 2.0
OpenGL 4.5
AMD PowerTune Technology
TrueAudio Next
Unified Video Decoder (UVD)
Video Code Engine (VCE)
Virtual Super Resolution
The Vulkan API
Cooling_ Dual-X Cooling Technology
Two ball bearing fan
Fan Quick Connect
Form Factor_ 2.2 Slots, ATX
Power Consumption_ 195W
OS_ Windows 10, Windows 7, 64bit operating system required
System Requirement_ 500 Watt or greater power supply (Recommended)
1 x 8-pin Power Connector + 1 x 6-pin Power Connector
PCI Express compliant motherboard with one x16 graphics slot
Dimension_ 260X135X43mm
Weight (Approximate)_ 1 kg
Specification: SAPPHIRE GRAPHICS CARD RADEON RX 570 4GB GDDR5 OC PULSE (11266-04-41G)
Brand_
Sapphire

CHIPSET_
AMD

BIT RATE_
256

CAPACITY_
4 GB

COUNTRY OF ORIGIN_
INDIA

FANS_
2

MEMORY TYPE_
GDDR5

PROCESSOR SERIES_
RX

WARRANTY_
3 Years Warranty

Product Type_
Graphics Card

FORM FACTOR_
ATX , E-ATX
