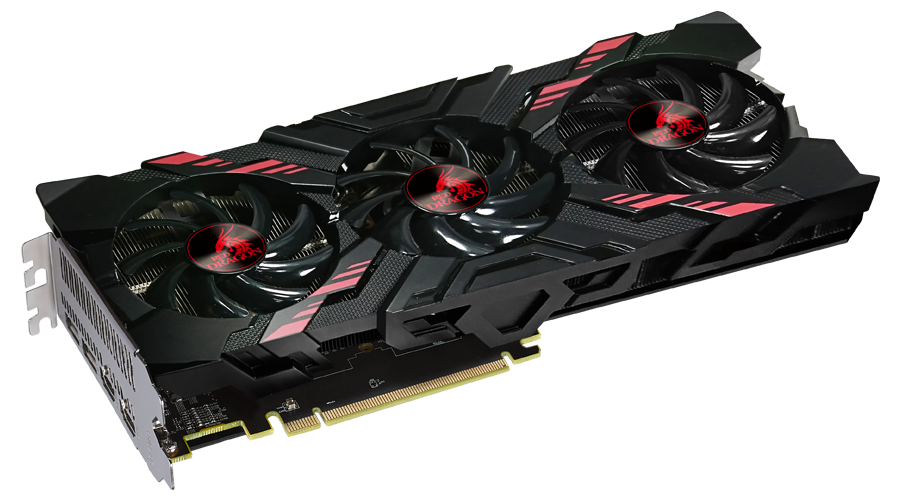

PowerColor Red Dragon RX VEGA 56 8GB HBM2 Radeon Graphics Card

Model
Brand PowerColor
Series RED DRAGON
Model AXRX VEGA 56 8GBHBM2-2D2HD/OC
Interface
Interface PCI Express 3.0
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon RX VEGA Series
GPU Radeon RX Vega 56
Core Clock 1177 MHz
Boost Clock 1478 MHz
Stream Processors 3584 Stream Processors
Memory
Effective Memory Clock 800 MHz (1.6 Gbps)
Memory Size 8GB
Memory Interface 2048-Bit
Memory Type HBM2
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5
Ports
HDMI 2 x HDMI
DisplayPort 2 x DisplayPort
Details
Max Resolution 4096 x 2160
Eyefinity Support Yes
CrossFireX Support Yes
TrueAudio Support Yes
Virtual Reality Ready Yes
Cooler Triple Fans
Thermal Design Power 300W
System Requirements Minimum System Power requirement: 650W
Power Connector 1 x 6-Pin + 1 x 8-Pin
Features
Features AMD CrossFire Technology

AMD Eyefinty Technology

AMD XConnect Ready

HDMI

Microsoft DirextX 12

Recommended reading:Palit Nvidia GeForce RTX 3050 Dual 8GB GDDR6 Graphics Card

Microsoft Windows 10 Support

Microsoft Windows 7 Support

PCI Express 3.0

Premium VR Ready

Radeon Chill

Recommended reading:PowerColor AMD Radeon RX 6400 ITX Graphics Card | 4GB GDDR6 Video Memory

Radeon ReLive

TRUE AUDIO TECHNOLOGY

UEFI Support

Virtual Super Resolution
Form Factor & Dimensions
Form Factor ATX
Max GPU Length 305 mm
Card Dimensions (L x H) 12.01″ x 5.51″
Slot Width Dual Slot
