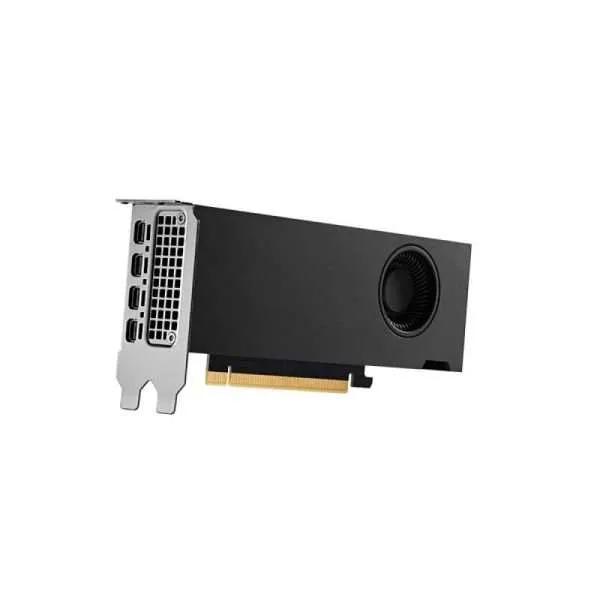

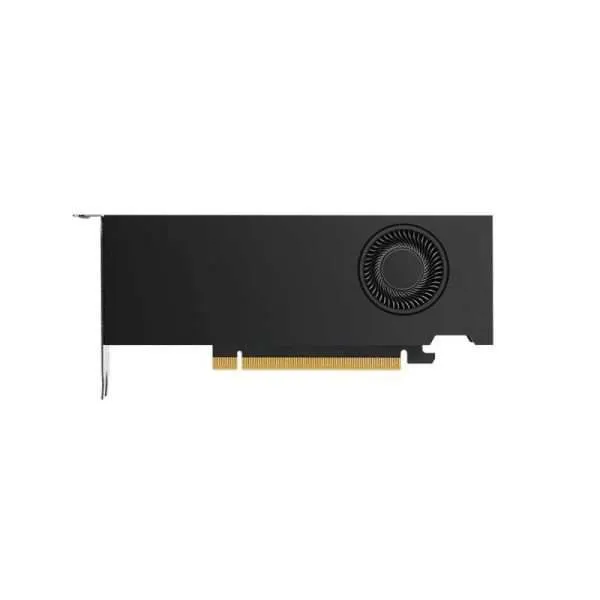

PNY Nvidia Quadro RTX A2000 12GB GDDR6 Graphics Card
12GB GDDR6 GPU Memory
192-bit Bus Memory
PCI-Express 4.016 Interface
Maximum 4 Display Support
288 GB/s Memory Bandwidth
GPU Interface PCI Express 4.016
Memory 12 GB GDDR6
CUDA Cores 3328
Memory Bandwidth 288 GB/s
Memory Bus 192-bit
Maximum Display Support 4
OVERVIEW
The PNYs Nvidia RTX A2000 12GB GDDR6 brings the power of Nvidia RTX technology with a powerful low-profile, dual-slot GPU design, delivering real-time ray tracing, AI-accelerated computes, and high-performance graphics to your desktop and to more professionals.
The PNY RTX A2000 is built on the NVIDIA Ampere architecture which gives artists, designers, engineers, and scientists the power to create tomorrow, today. And with the overwhelming adoption of RTX technology, professionals are empowered to design, build, and entertain like never before because the world۪s leading design and creative applications are now accelerated by RTX technology.
The VR-ready PNY Nvidia RTX A2000 12GB GDDR6 combines with it 26 second-generation RT Cores, 104 third-generation Tensor Cores, 3,328 next-generation CUDA Cores, and 12GB of GDDR6 graphics memory with ECC (Error Correction Code) support for error-free computing. Along with this, the RTX A2000 Graphics Card features a power-efficient low profile, dual PCIe slot form factor that fits into a wide range of small form factors work stations. Also, it doubles its memory even for larger models and datasets.
Minimum Hardware Requirements :
1. Intel Core i5, i7, i9, or Xeon processor or later
2. AMD Ryzen or Epyc class processor or later
3. PCI Express 4.0 x16 (preferred) expansion slot
4. DisplayPort 1.4a (preferred), HDMI, or DVI compatible display(s)
5. Internet connection for driver installation
6. System memory greater than or equal to GPU memory, twice the GPU memory recommended
TECHNICAL SPECIFICATIONS
Part Number_ VCNRTXA2000-12GB-PB
GPU Memory_ 12 GB GDDR6
Memory Bus_ 192-bit
GPU Memory Clock_ 6001 Mhz
System Interface_ PCI Express 4.016
Memory Bandwidth_ 288 GB/s
Error-Correcting Code (ECC)_ Yes
Architecture_ Nvidia Ampere Architecture
Process Size_ 8nm
Transistors_ 13.25 Billion
Die Size_ 276 mm2
NVIDIA Ampere Architecture- Based CUDA Cores_ 3328
NVIDIA Third-Generation Tensor Cores_ 104
NVIDIA Second-Generation RT Cores_ 26
Single-Precision Performance_ 8.0 TFLOPS5
RT Core Performance_ 15.6 TFLOPS5
Tensor Performance_ 63.9 TFLOPS6
Thermal Solution_ Active Fansink
Power Consumption_ 70 W
Display Connectors_ 4x mDP Latching
Maximum Displays_ 2x 7680 x 4320 at 60 Hz
4x 5120 x 2880 at 60 Hz
4x 4096 x 2160 @ 120 Hz
(NVIDIA Quadro and RTX Display Resolution Support)
Form Factor_ 2.713 inch H x 6.6-inch Low Profile | Dual Slot
HDR Support_ Yes
AR | VR | XR Ready_ Yes
Quad Buffered Stereo_ Yes
Hardware Accelerated BVH_ Yes
NVIDIA DLSS_ Yes
NVIDIA Mosaic, Warp, and Blend_ Yes
NVIDIA RTX Experience_ Yes
NVIDIA RTX Desktop Manager_ Yes
NVIDIA Broadcast Application_ Yes
NVENC | NVDEC_ 1x H.264 and HVEC Encoders, 1x Decode Engine
Graphics APIs_ DirectX 12.07, Shader Model 5.17, Open GL 4.68, Vulkan 1.2
Compute APIs_ CUDA, DirectCompute, Open CL
Operating System Support_ Microsoft Windows 10 (64-bit), Red Hat Enterprise Linux 7. x, SUSE Linux Enterprise Desktop 15.x, OpenSuse 15, Fedora 31, Ubuntu 18.04, FreeBSD 11.x, Solaris 11

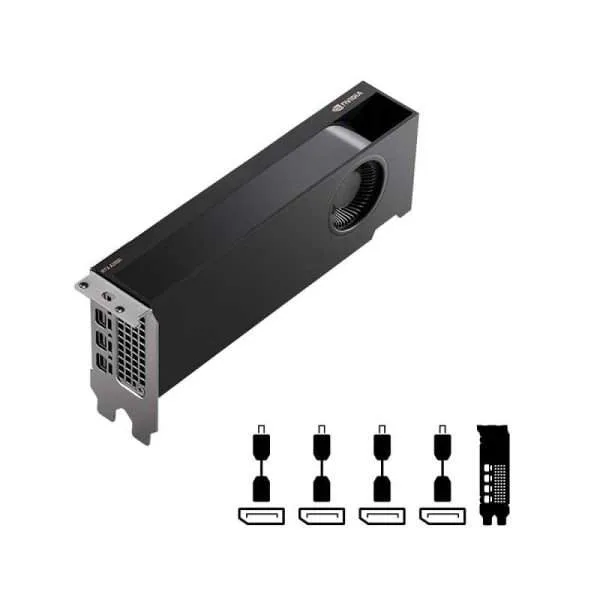

Package Contains_ 1x NVIDIA RTX A2000 12GB professional graphics card, 1x Attached low-profile (SFF) bracket, 1x Unattached full-height (ATX) bracket, 1x Unattached full-height (ATX) bracket, 1x NVIDIA RTX Quick Start Guide, NVIDIA RTX Support Guide, 4x mDP to DisplayPort adapters
Specification: PNY Nvidia Quadro RTX A2000 12GB GDDR6 Graphics Card
Product Type_
Graphics Card
FORM FACTOR_
ATX , E-ATX , MICRO-ATX
EAN, GTIN, UPC_
3536403388867
FANS_
1
Brand_
PNY
COLOR_
BLACK
CHIPSET_
NVIDIA
PROCESSOR SERIES_
RTX
CAPACITY_
12 GB
BIT RATE_
192
MEMORY TYPE_
GDDR6
LIGHTING_
NONE
WARRANTY_
3 Years Warranty
