Noctua NH-U9 TR4-SP3 Ryzen Threadripper Epyc CPU Cooler

In stock

Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua NH-U9 line has become a benchmark for compact 92mm single tower coolers.

Compare
SKU: IGO-20221010-746 Category:

Noctua NH-U9 TR4-SP3 Ryzen Threadripper Epyc CPU Cooler

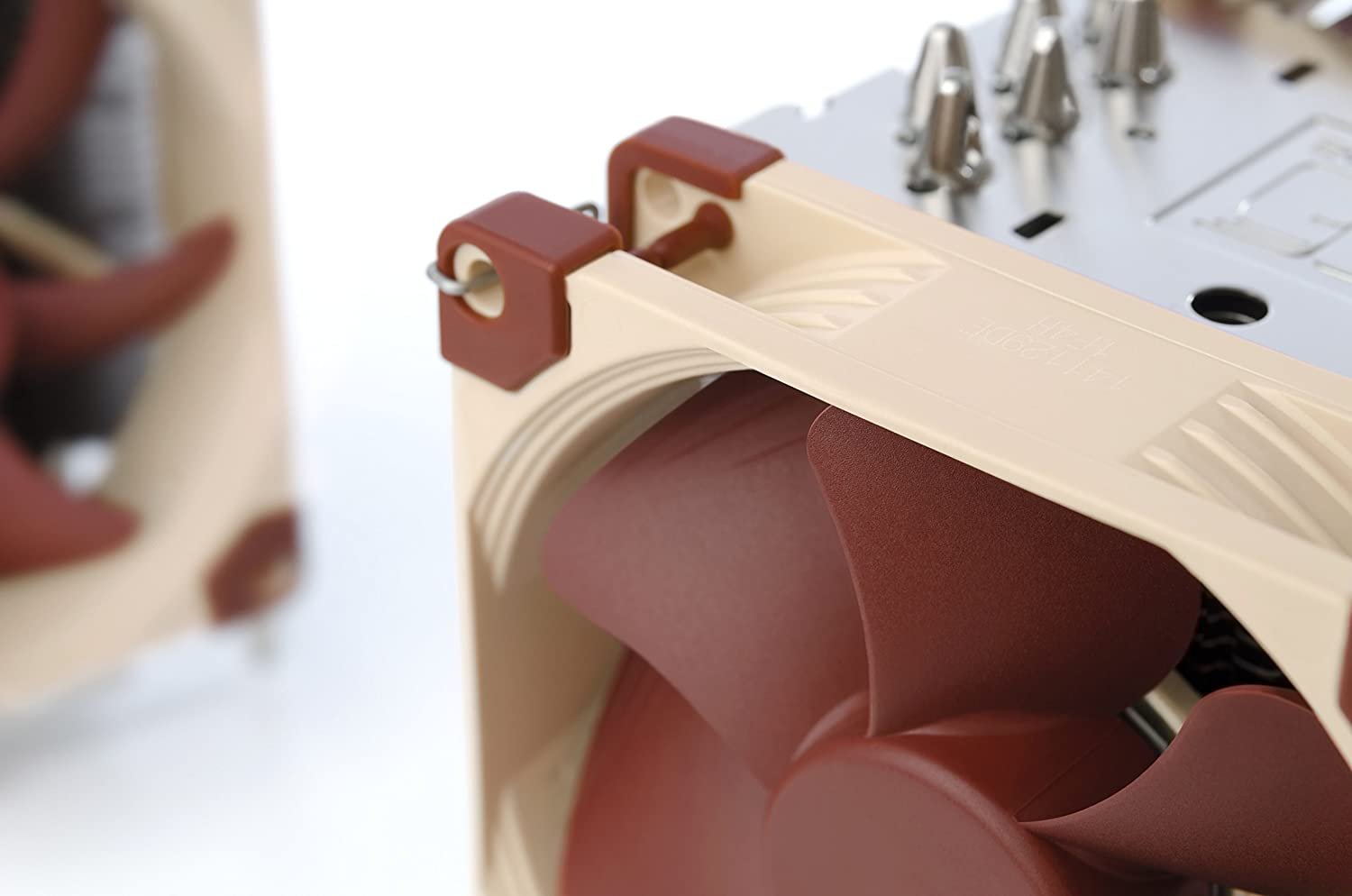

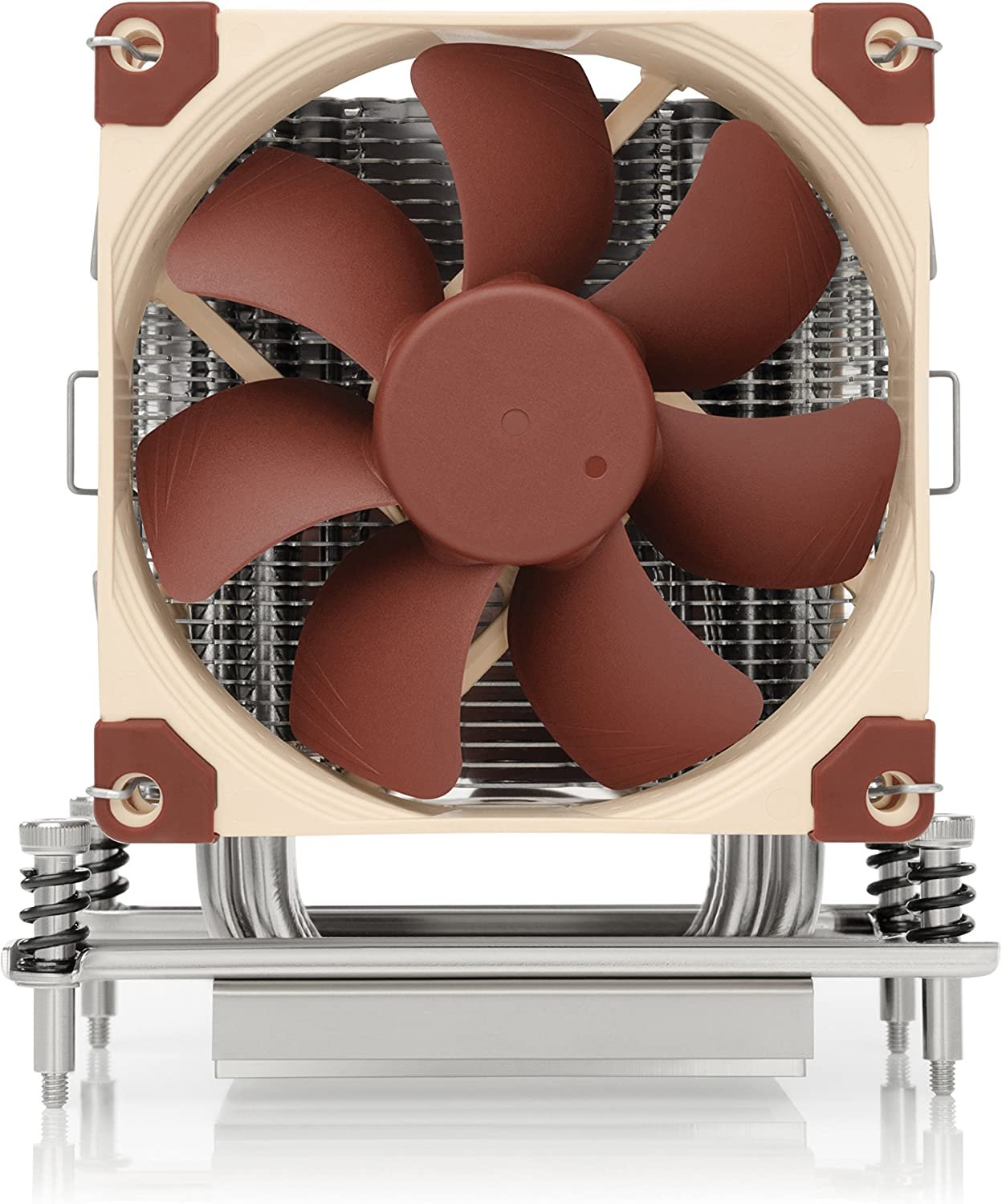

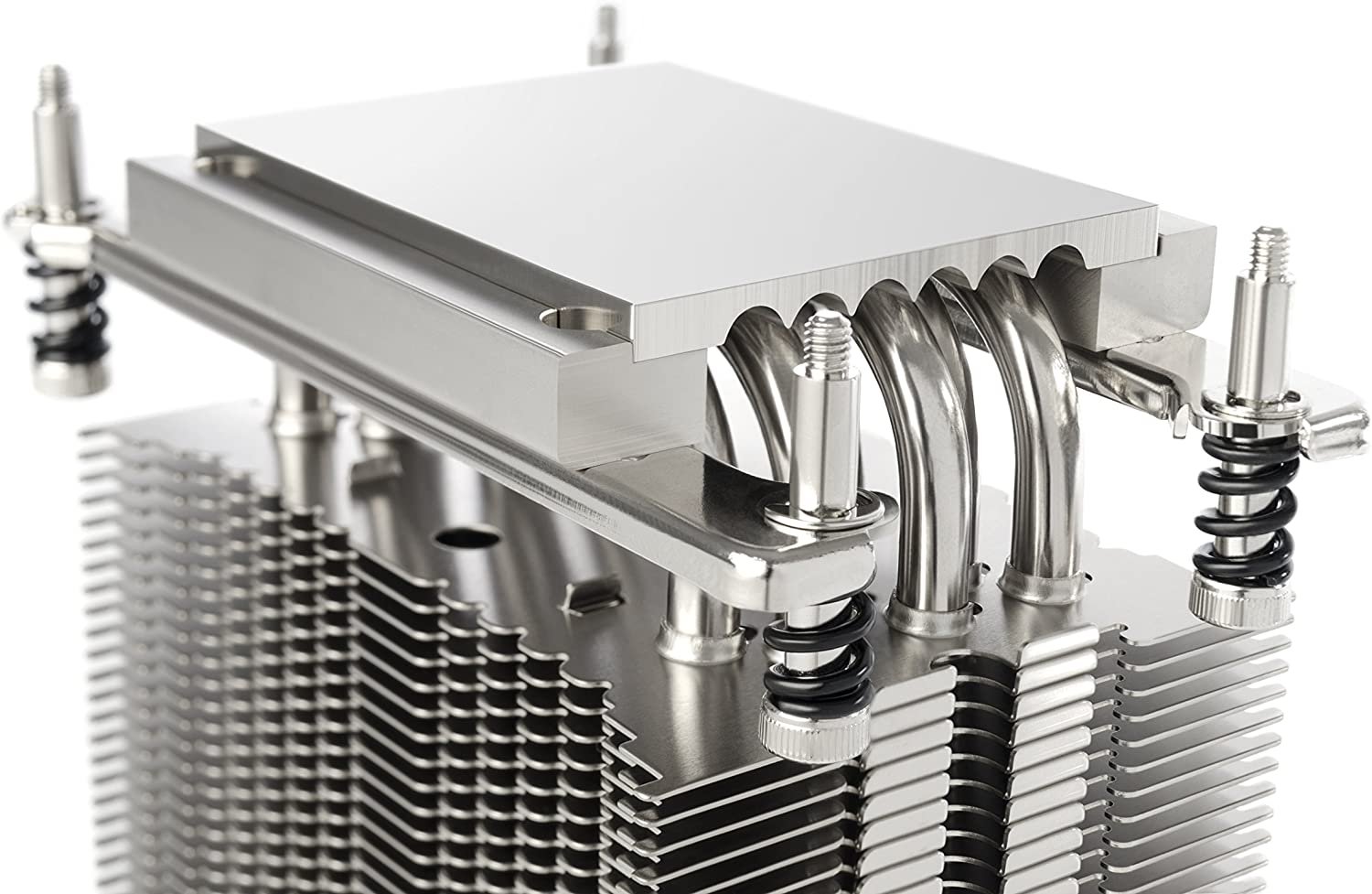

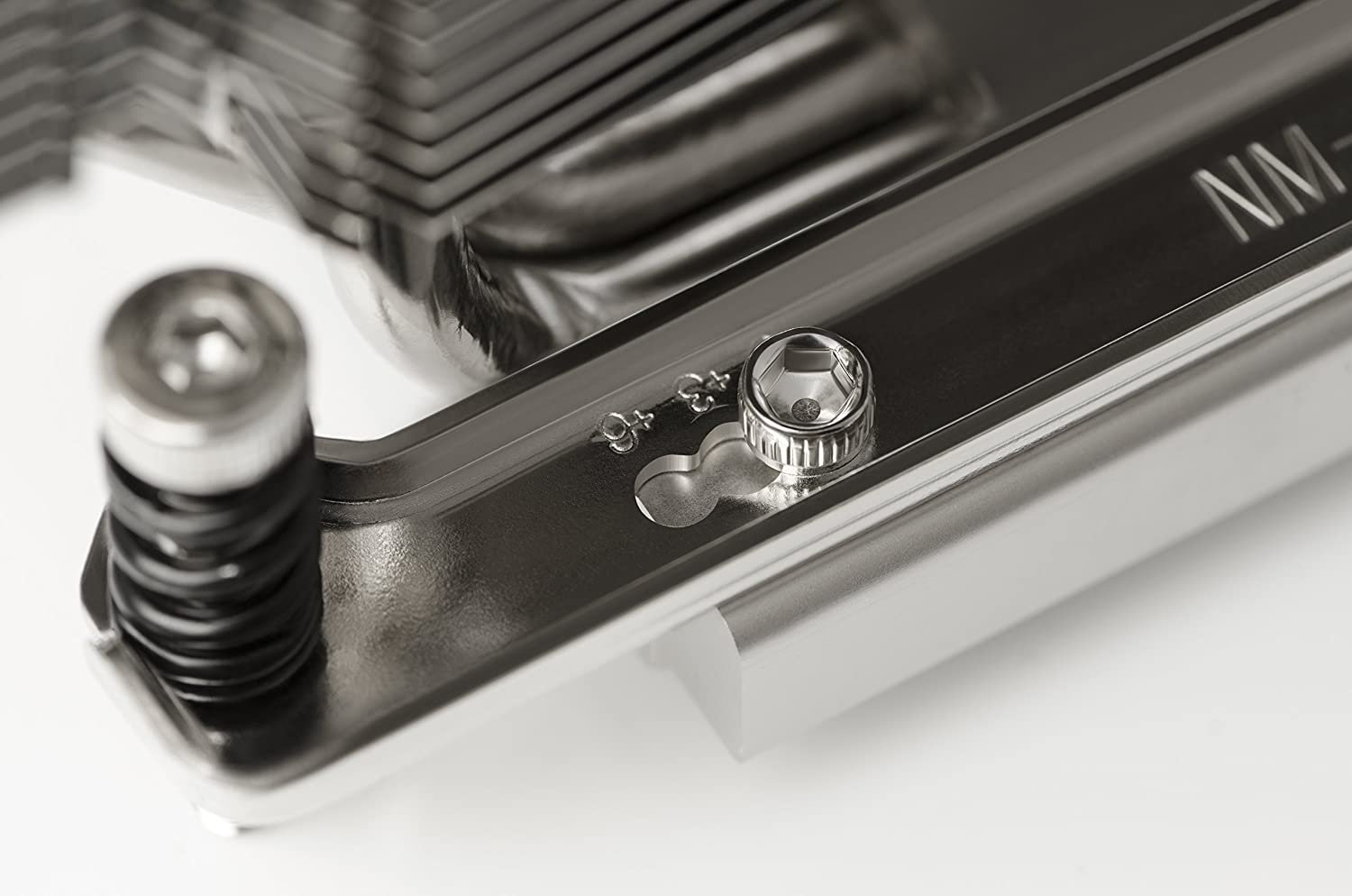

Having received more than 300 awards and recommendations from international hardware websites and magazines, Noctua NH-U9 line has become a benchmark for compact 92mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD sTRX4/sWRX8/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with two of the renowned quiet NF-A9 PWM PWM 92mm fans in a push/pull dual fan configuration, Noctua proven NT-H1 thermal compound and a full 6-year manufacturer warranty, the NH-U9TR4-SP3 forms a highly compact, premium-quality solution that combines outstanding performance, superb acoustics and excellent compatibility for space-restricted sTRX4/sWRX8/TR4/SP3 systems.

Cooler Specification
Socket compatibility AMD sTRX4, sWRX8, TR4, SP3
Height (without fan) 125 mm
Width (without fan) 95 mm
Depth (without fan) 71 mm
Weight (without fan) 660 g
Height (with fan) 125 mm
Width (with fan) 95 mm
Depth (with fan) 120 mm
Weight (with fan) 895 g
Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR 118
Max. TDP see NSPR
Fan compatibility 2x 92x92x25mm
Scope of delivery
2x NF-A9 PWM premium fan
2x Low-Noise Adaptor (L.N.A.)
Y-split cable
NT-H1 high-grade thermal compound
SecuFirm2 mounting kit for sTRX4/TR4/SP3
Noctua metal case-badge
Warranty 6 Years

FAN Specification
Model Noctua NF-A9 PWM
Bearing SSO2
Max. rotational speed (+/- 10%) 2000 RPM
Max. rotational speed with L.N.A. (+/- 10%) 1550 RPM
Min. rotational speed @ 20% PWM (+/-20%) 400 RPM
Max. airflow 78,9 må_/h
Max. airflow with L.N.A. 62,6 må_/h
Max. acoustical noise 22,8 dB(A)
Max. acoustical noise with L.N.A. 16,3 dB(A)
Input power 1,2 W
Voltage range 12 V
MTTF > 150.000 h
