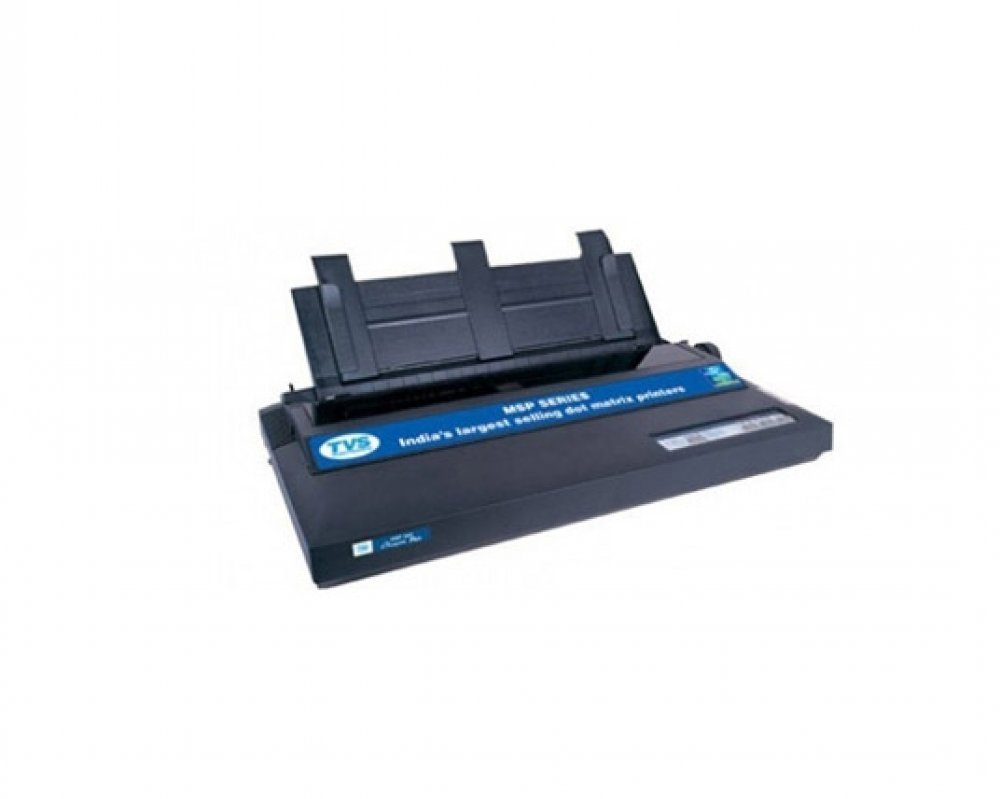

TVS Dot Matrix Printer MSP 345 STAR Printer
FEATURES
MSP 345 STAR
Printing Speed 400 cps – Faster Printing
MSP 345 STAR
Parallel & USB Interfaces – Easy to install
MSP 345 STAR
High Input Buffer – Faster Printing
MSP 345 STAR
Printer Built-in Barcode Fonts – Prints Barcodes
MSP 345 STAR
200 Million Characters Print Head Life – Trouble-free Printing
MSP 345 STAR
Silicon Self-Lubrication Mechanism – Maintenance Free. No More Carriage Stuck
The MSP 345 Star Advantage
TVS MSP 345 called “The Business Star” is a 24 Wire, 136 Column Dot Matrix Printer best suited for printing reports, Proposals, Letters and Correspondences, Statements, Journals, and documents. With the printing speed of 400 CPS, MSP 345 Star has built-in parallel and USB interfaces thus making installation an easy Plug and play. The TVS Ink bank ribbon cartridge in MSP 345 ensures the customer saves huge money in ribbon replacement costs.
General
Print Method Serial impact Dot Matrix
Printing Speed Bi-Directional Logic Seeking
Print Head Type 24 wire
Print Width 136 column
Print head Life 200 Million Characters
Positioning speed 400 CPS
Print Speed
Character Pitch (cpi) 10 12
SuperSpeed Draft (cps) 400 minus
High-Speed Draft (cps) 300 360
Draft (cps) 250 300
Letter Quality (cps) 83 100
Resident Printer Fonts
HS Draft Standard 10 and 12 cpi
Draft Standard 10, 12, 15, 17, and 20 cpi
Letter Quality Roman, Sans Serif, Courier, Prestige, Script, Script-C, Orator, OCR-B, Orator-S
Letter Quality (Scalable) Roman, Sans Serif ( 8 to 40 points)
Fast LQ Prestige
Resident bar code Code 3 of 9
Paper handling
Paper path standard Top, Rear, and Bottom
Continuous Feed – Tractor Convertible Push & Pull
Paper Size
Continuous Form Width 4 to 16 Inches
Cut sheet width 7.2 to 16.1 Inches
Paper thickness (max) – Tractor feed 0.3 mm
Paper thickness (max) – Friction feed 0.3 mm
Copy Capability 1 plus 3 with carbon
Consumables – Ribbon
Type Patented TVS ribbon cassette with user replaceable ink bank
Colour Jet Black
Ribbon Life 40 Million characters with 3 additional ink banks
Cassette Refill mode Through Ink bank
Ink bank life 10 Million characters
Reliability – MTBF(Power on Hours) 6000 POH
Acoustics (Noise Level) 55 dB(A) in ISO 7779 Sonic Pattern
Emulation ESC/P2, IBM Proprinter XL 24E
Interface
Standard Centronics IEEE-P1284A Parallel, USB
Optional RS-232C serial
Software Specifications
Drivers Windows 9X, NT 4.0, ME, 2000, 2003, XP, VISTA, Windows 7, Linux
Electronic guide HTML based
Electrical Specifications
Operating Voltage 150V to 270 V AC
Mains Frequency 47 to 63 Hz
Power 12 Watts (approx.)
Environmental – Operating Conditions
Temperature Plus 5 to plus 45-degree celsius
Relative Humidity 10 to 80 percent
Physical Dimensions
Size ( W x H x D ) mm 608 x 379 x 147
Weight (kg) 7 Approx
