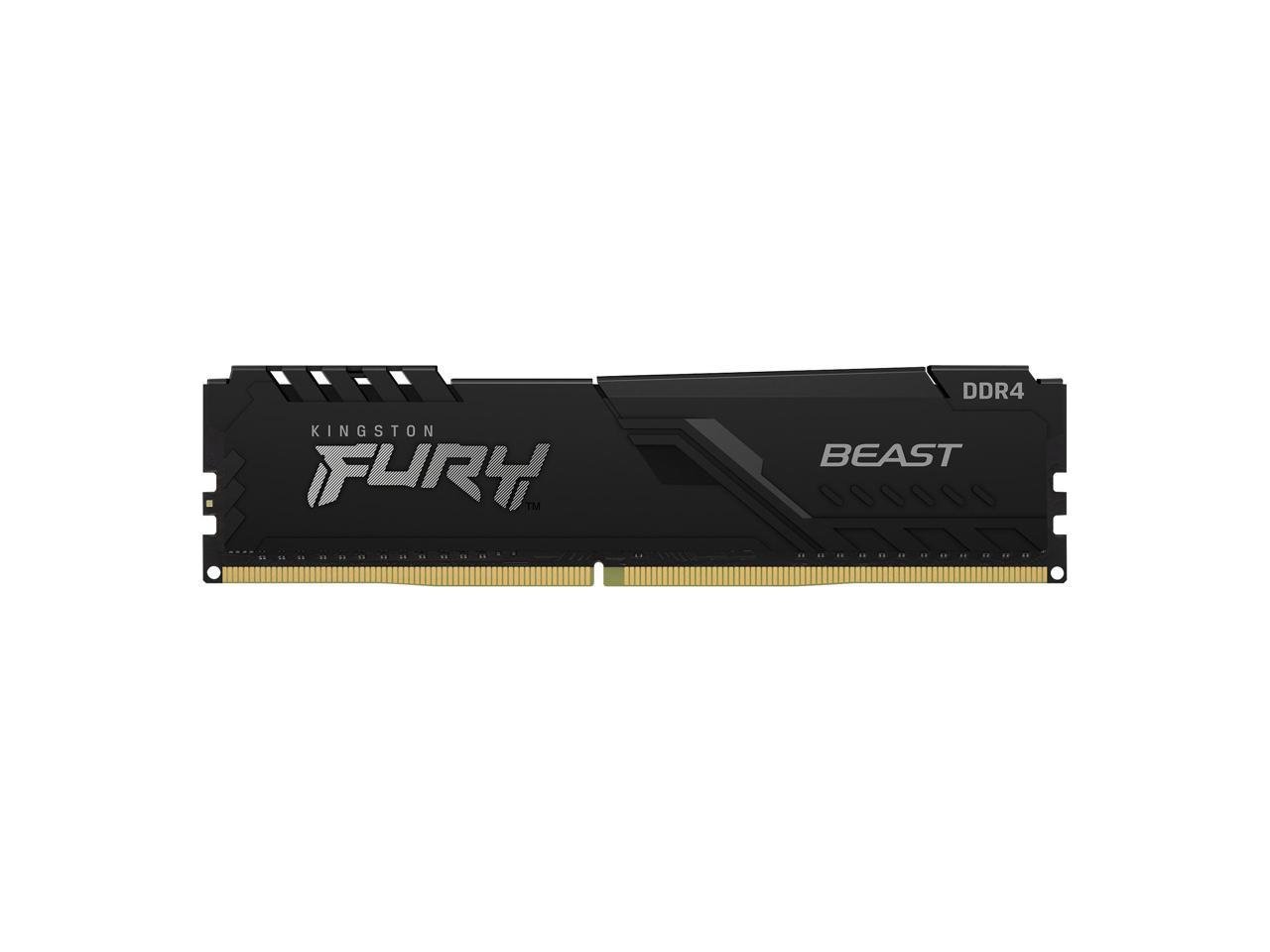

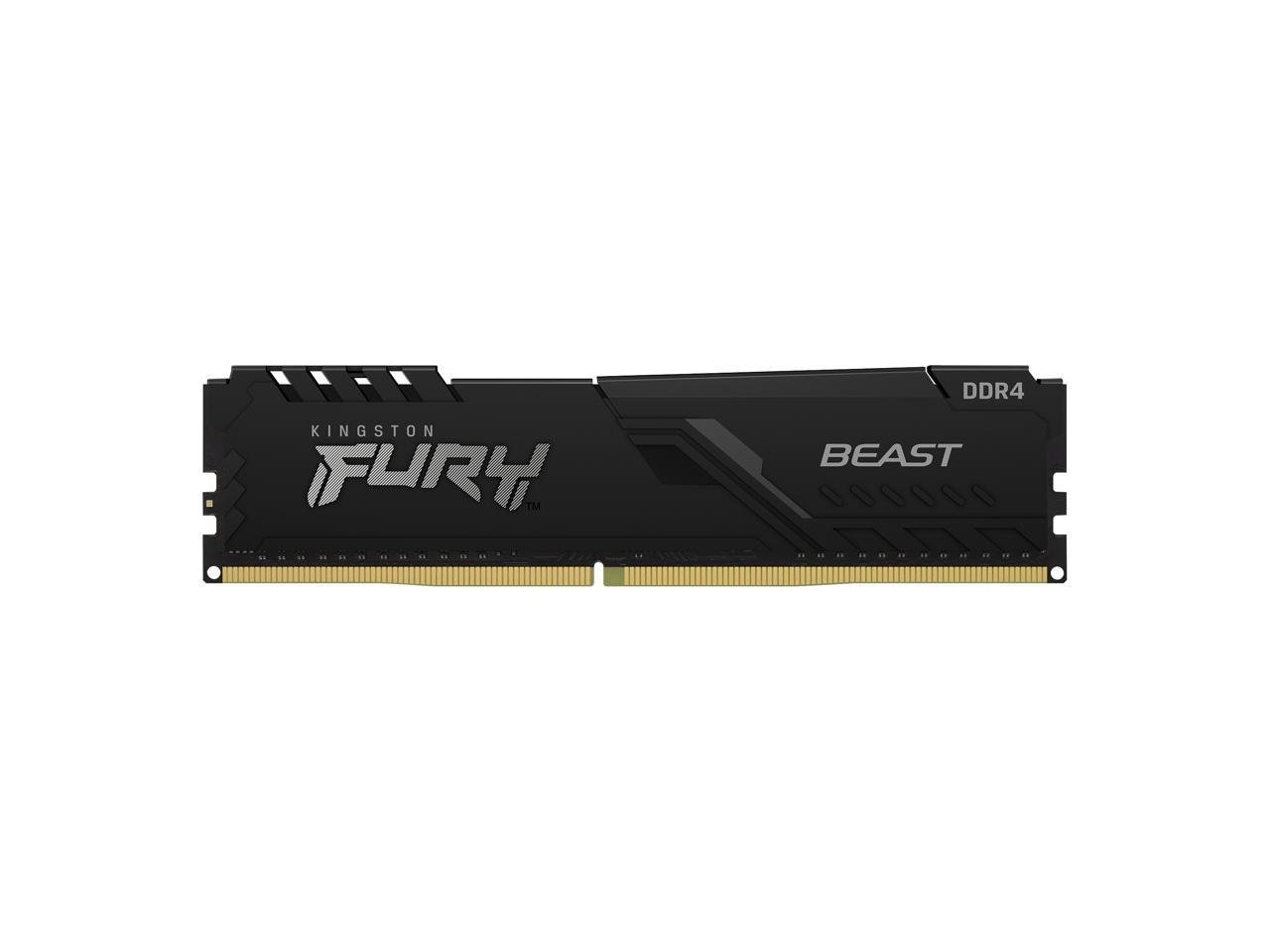

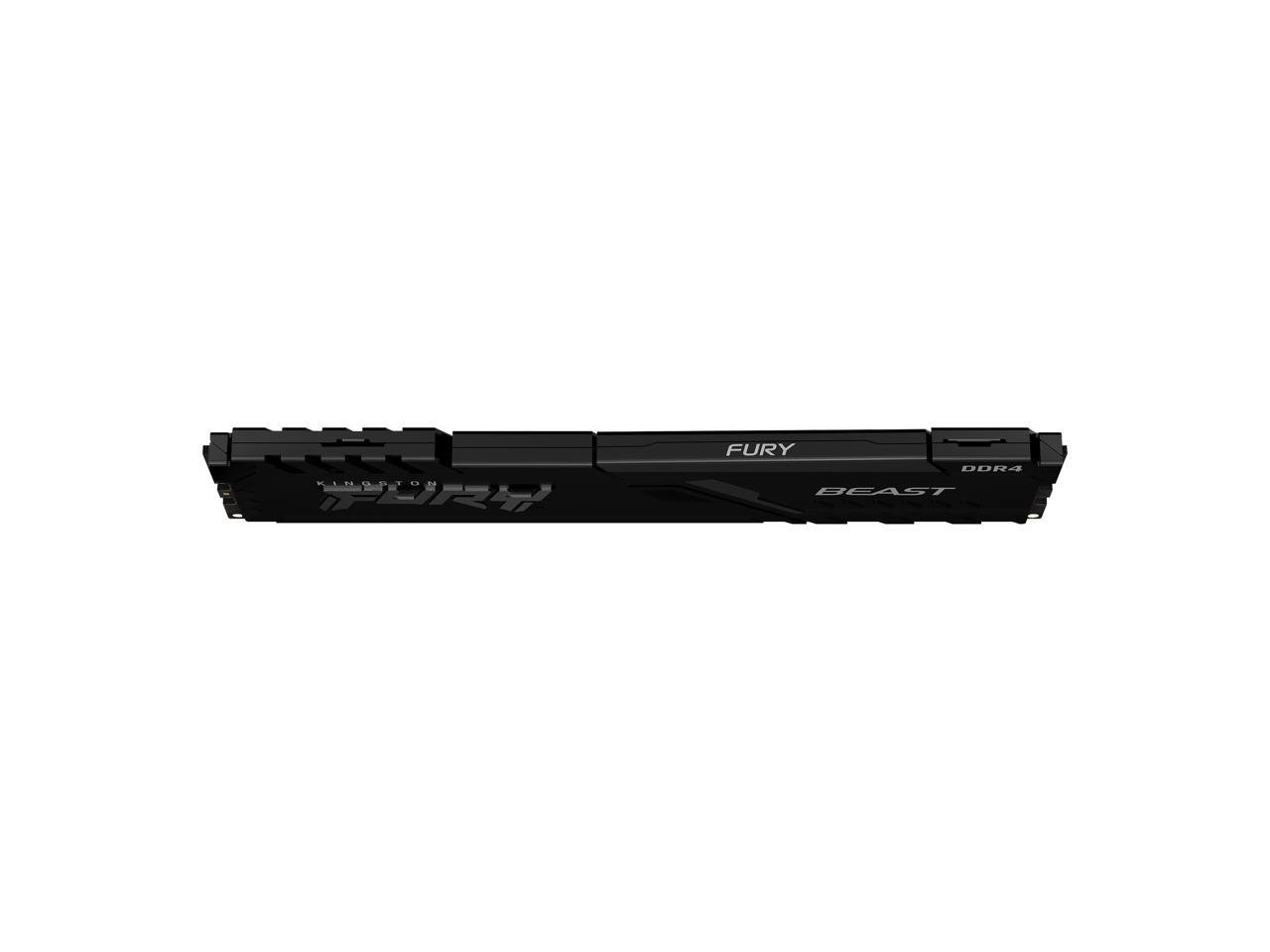

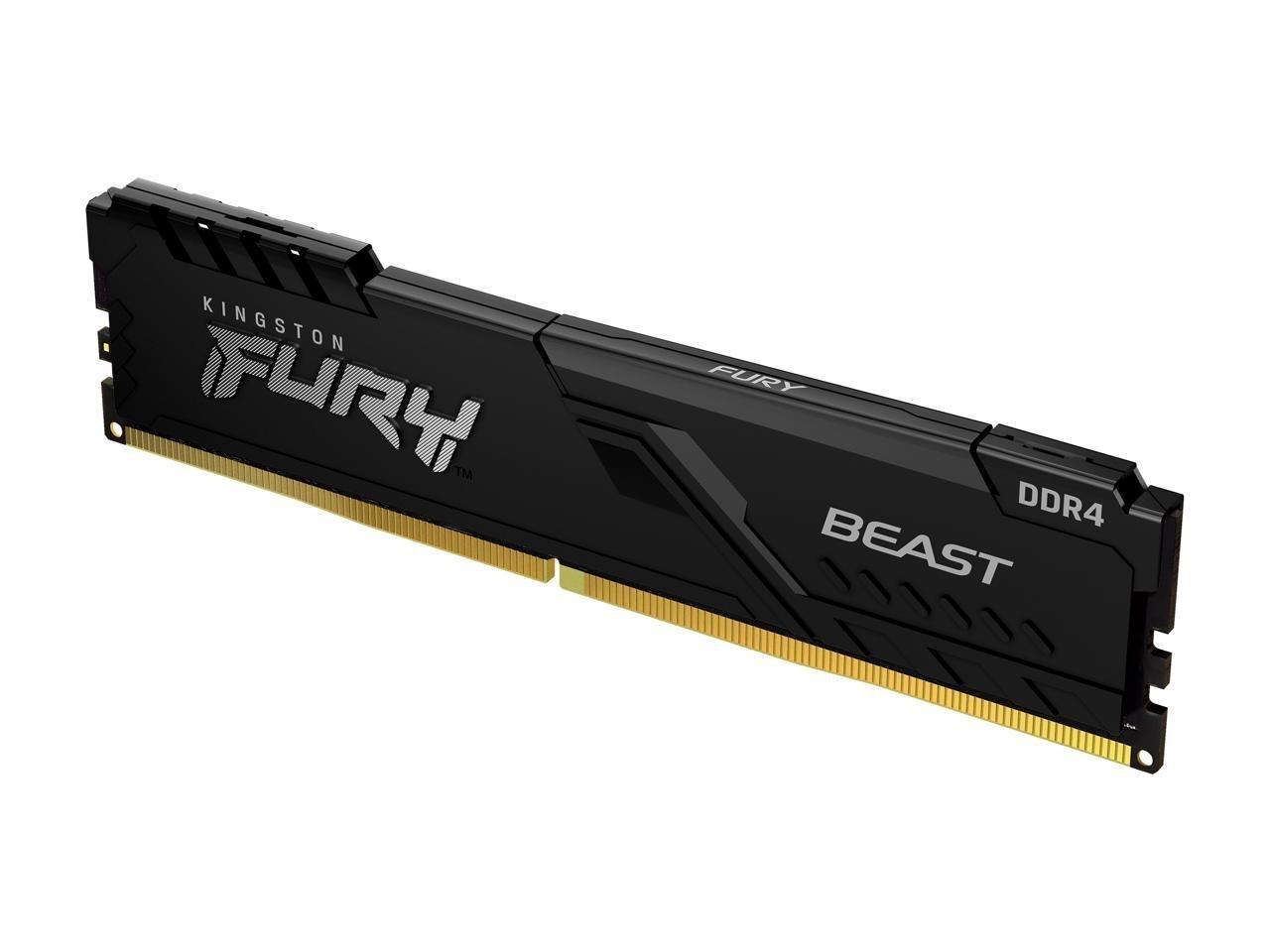

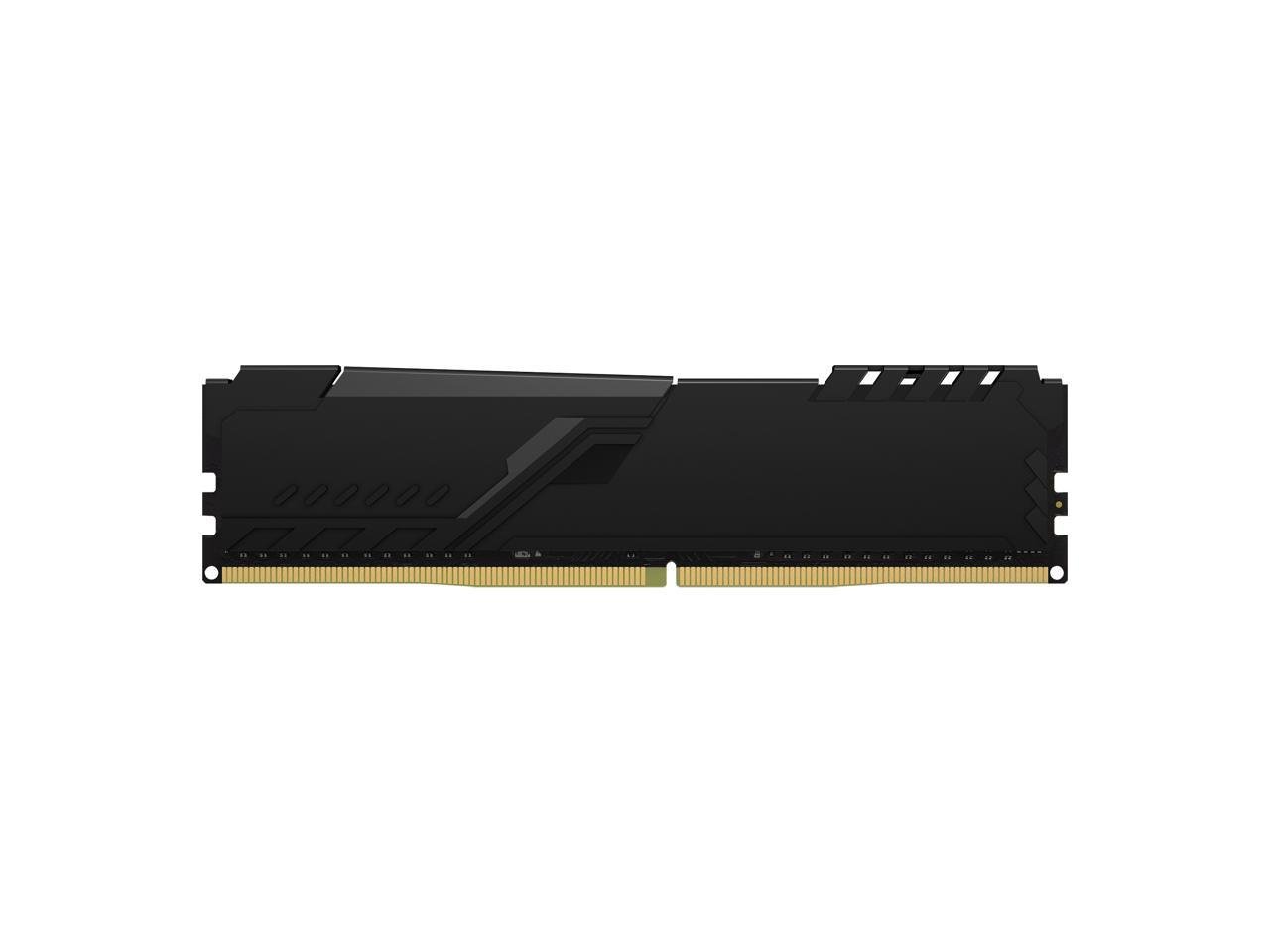

Kingston Fury Beast 16GB DDR4 3200 MHz 288pin DIMM Memory Module KF432C16BB1/16

FURY KF432C16BB1/16 is a 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) , memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel Extreme Memory Profiles (Intel XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

FEATURES
‰Û¢ Power Supply: VDD = 1.2V Typical
‰Û¢ VDDQ = 1.2V Typical
‰Û¢ VPP = 2.5V Typical
‰Û¢ VDDSPD = 2.2V to 3.6V
‰Û¢ On-Die termination (ODT)
‰Û¢ 16 internal banks; 4 groups of 4 banks each
‰Û¢ Bi-Directional Differential Data Strobe
‰Û¢ 8 bit pre-fetch
‰Û¢ Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
‰Û¢ Height 1.34‰Û� (34mm), w/heatsink
