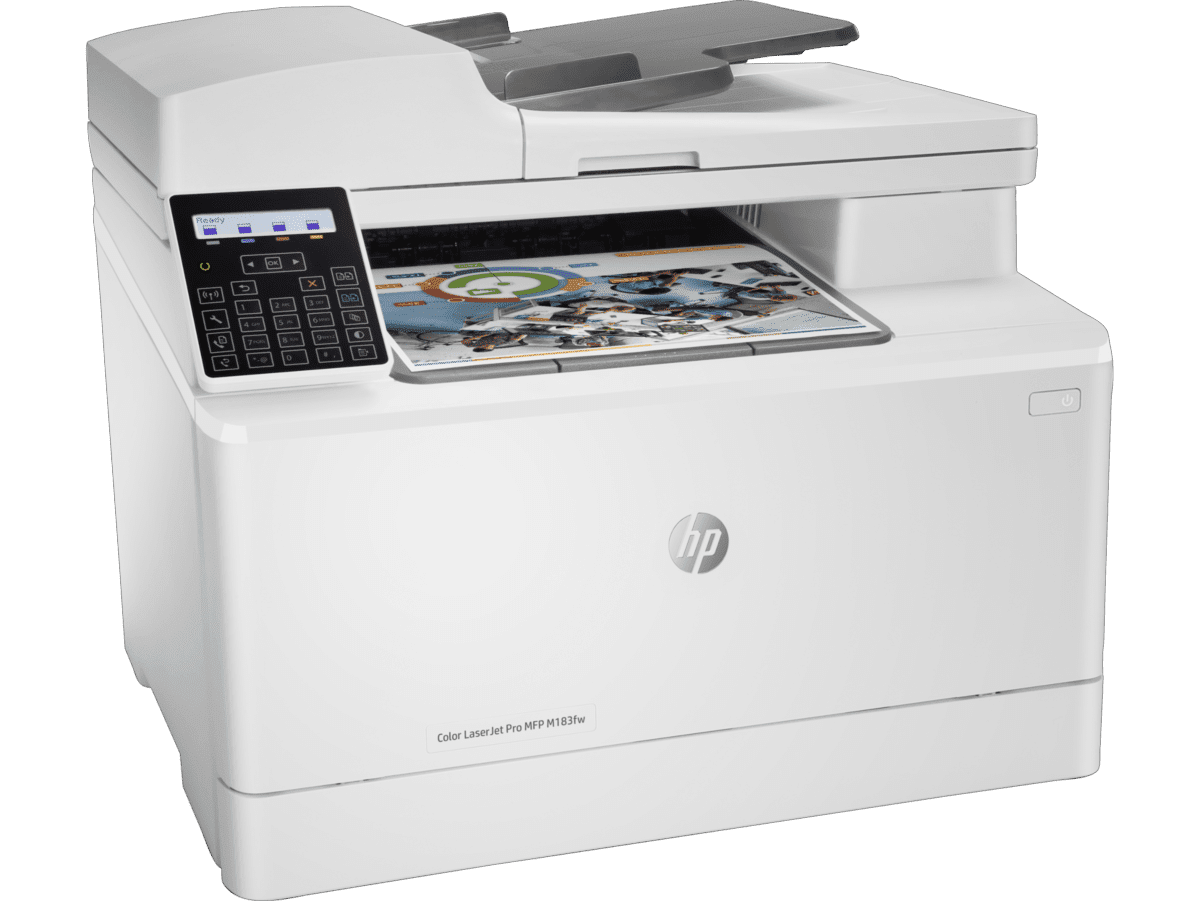

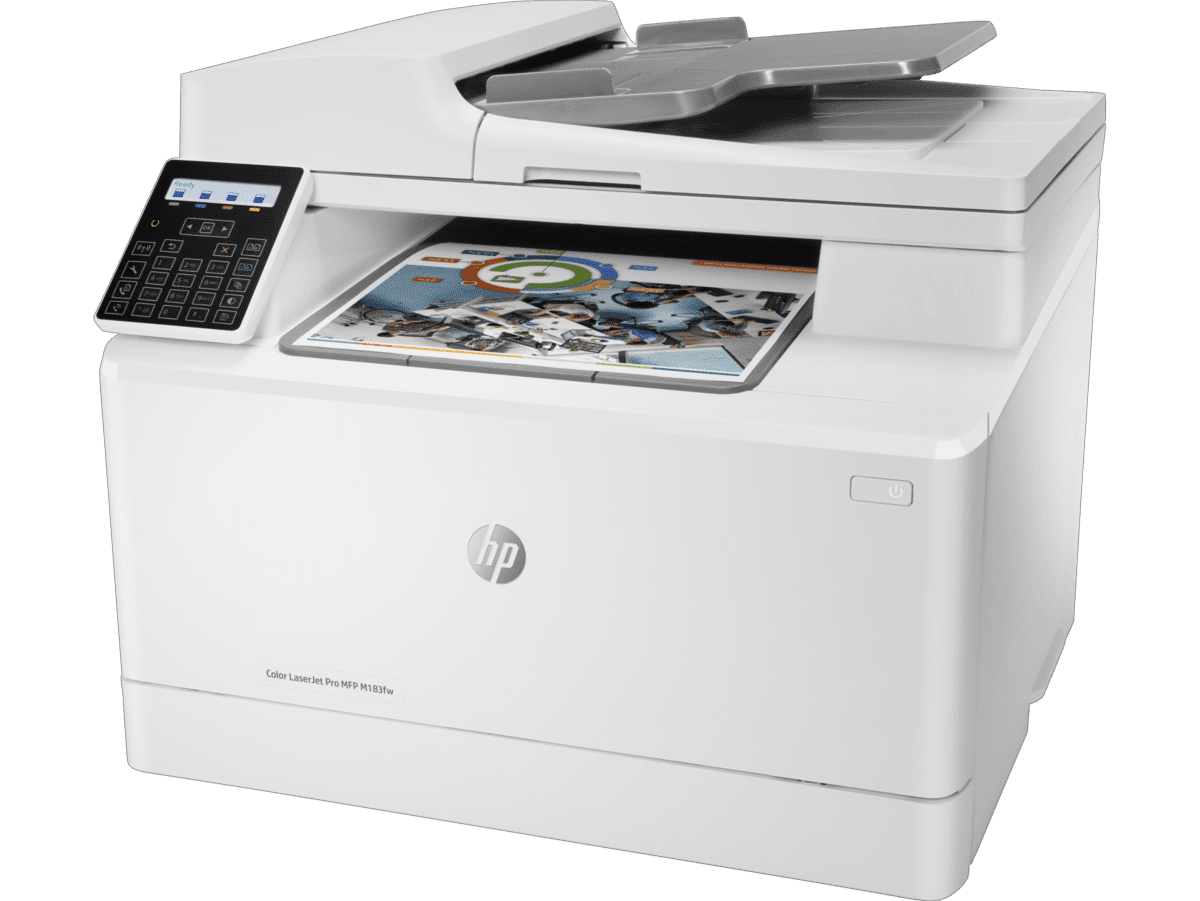

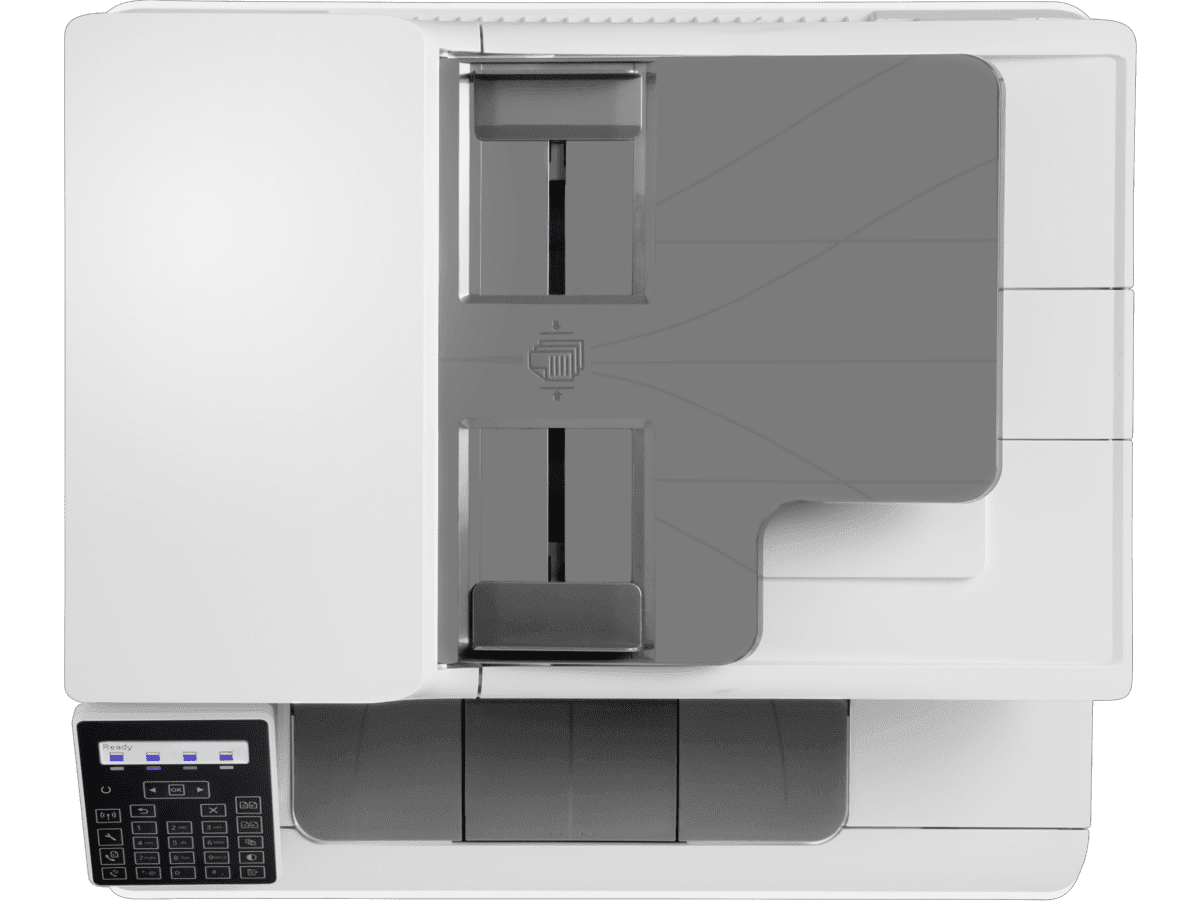

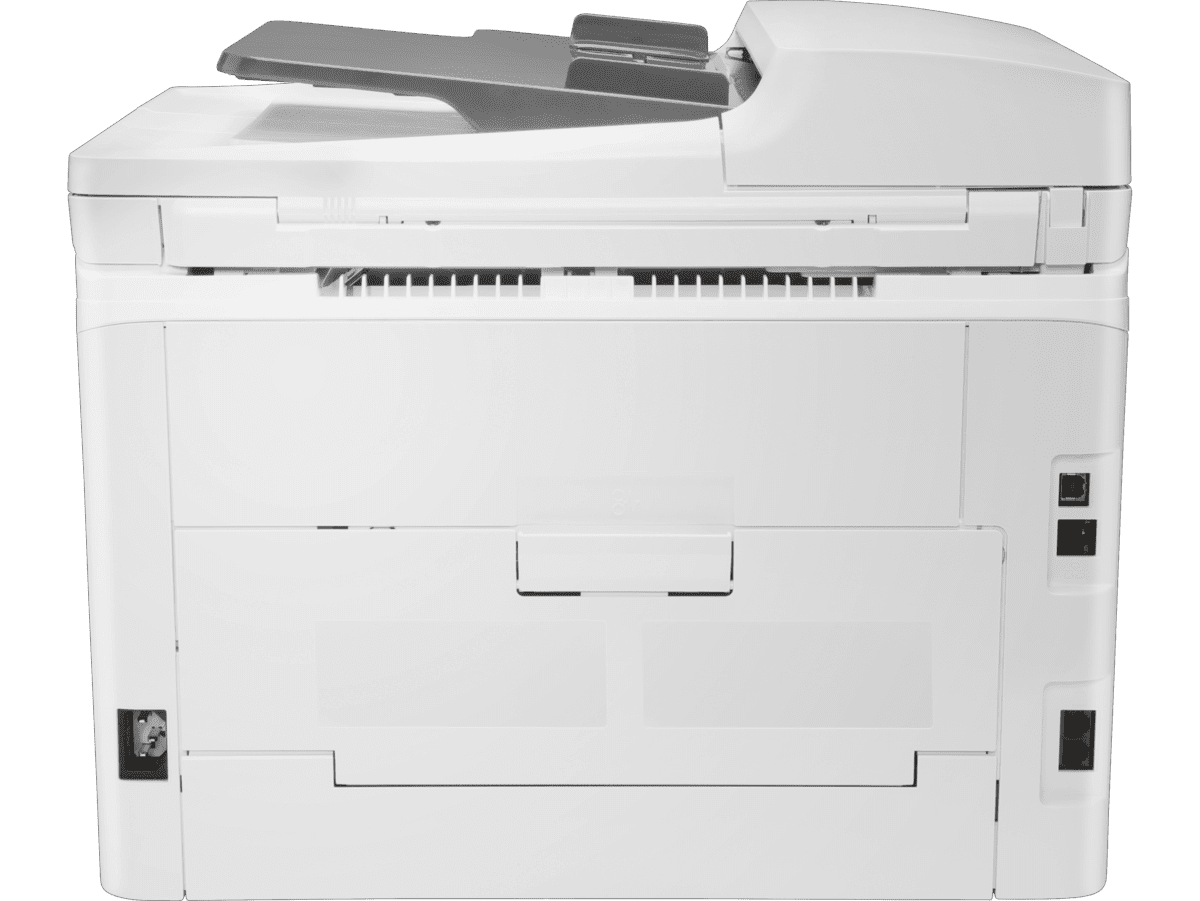

HP Color LaserJet Pro MFP M183fw

Sku
Sku
7KW56A
Print
Print Speed, Black
11 – 20

Color Output
Color
Print Speed, Color
11 – 20
Category

Product Type
Laser printers

Family Brand
LaserJet
Usage

Perfect For
Business
Features

Recommended reading:HP Ink Tank 316

Functions
Print scan copy and fax
Warranty
Warranty Footnote
Extended Warranty and support options vary by product, country and local legal requirements. Go to http://www.hp.com/support to learn about HP award winning service and support options in your region.
Warranty
One-year unit exchange warranty.
Printing Media Handling
Finished Output Handling
Sheetfeed
Envelope Input Capacity
Up to 15 mm (Recommended only 5 envelopes or less at a time)
Output Capacity
Up to 100 sheets (10 mm stack height)
Maximum Output Capacity (Sheets)
Up to 100 sheets (10 mm stack height)
Standard Output Capacity (Transparencies)
10 mm stack height
Media Type And Capacity, Tray 1
15 mm stack height for 20# paper(75 g/m²)
Media Type And Capacity, ADF
35 sheet of 20 lb plain paper
Paper Handling Input, Standard
150-sheet input tray
Input Capacity
Up to 150 sheets (15 mm stack height) in Tray 1
Paper Handling Output, Standard
100-sheet output bin
Standard Output Capacity (Envelopes)
10 mm stack height
Maximum Input Capacity (Sheets)
Up to 150 sheets (15 mm stack height) in Tray 1
Display Specifications
Display HP
2-Line LCD
Display Area (Metric)
57.58 x 11.88 mm
Display Area (Imperial)
2.27 x 0.47 in
Environmental
Acoustic Pressure Emissions Bystander (Active, Printing)
48 dB(A)(Mono); 49 dB(A) (Color)
Non-Operating Humidity Range
0 to 95% RH
Operating Humidity Range
10 to 80% RH
Storage Temperature Range
-20 to 40°C
Operating Temperature Range
10 to 32.5°C
Acoustic Power Emissions
6.2 B(A) (Mono); 6.3 B(A) (Color)
Recommended Operating Temperature Range
15 to 27°C
Acoustic Power Emissions (Ready)
2.6 B(A)
Acoustic Pressure Emissions Bystander (Ready)
16 dB(A)
Scan Speed
Scan Speed (Normal, Letter)
Up to 16.0 ppm (B/W); 9 ppm (Color)
Scan Speed (Normal, A4)
Up to 15.0 ppm (B/W); 8 ppm (Color)
Cartridges And Printheads
Technology
Laser
Number Of Print Cartridges
4 (1 each black, cyan, magenta, yellow)
Replacement Cartridges
(AMS+APJ) HP 215A Black LaserJet Toner Cartridge (~1050 yield) W2310A; HP 215A Cyan LaserJet Toner Cartridge (~850 yield) W2311A; HP 215A Yellow LaserJet Toner Cartridge (~850 yield) W2312A; HP 215A Magenta LaserJet Toner Cartridge (~850 yield) W2313A; (EMEA) HP 216A Black LaserJet Toner Cartridge (~1050 yield) W2410A; HP 216A Cyan LaserJet Toner Cartridge (~1050 yield) W2411A; HP 216A Yellow LaserJet Toner Cartridge (~850 yield) W2412A; HP 216A Magenta LaserJet Toner Cartridge (~850 yield) W2413A
Supplies Feature
HP JetIntelligence Cartridge
Copy Speed
Copy Speed (Black, Normal Quality, A4)
Up to 16 ppm
Copy Speed (Colour, Normal Quality, A4)
Up to 16 ppm
Copy Speed Black (Normal, Letter)
Up to 17 ppm
Copy Speed Color (Normal, Letter)
Up to 17 ppm
Battery And Power
Power
110-volt input voltage: 110 to 127 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz); 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 3 Hz), 60 Hz (+/- 3 Hz)(Not dual voltage, product varies by part number with # Option code identifier)
Power Consumption
313 watts(active printing), 7.4 watts(Ready), 0.7 watts(Sleep), 0.05 (Manual-Off), 0.05(Auto-Off/Manual-On), 1.0 watts(Auto-Off/Wake on LAN)
Power Supply Type
Internal (Built-in) power supply
Print Time
First Page Out Black (Letter, Ready)
As fast as 11.6 sec
First Page Out Black (A4, Ready)
As fast as 11.8 sec
First Page Out Color (A4, Ready)
As fast as 13.8 sec
First Page Out Color (Letter, Ready)
As fast as 13.5 sec
First Page Out Black (Letter, Sleep)
As fast as 13.2 sec
First Page Out Black (A4, Sleep)
As fast as 13.4 sec
First Page Out Color (Letter, Sleep)
As fast as 14.6 sec
First Page Out Color (A4, Sleep)
As fast as 14.8 sec
Printer Specifications
Duty Cycle (Monthly, Letter)
Up to 30,000 pages
Envelope Feeder
No
Functions
Print, Copy, Scan, Fax
Print Languages
HP PCL6; HP PCL5c; HP postscript level 3 emulation; PWG raster; PDF; PCLm; PCLm-S; URF
Paper Trays, Maximum
1
Duty Cycle (Monthly, A4)
Up to 30,000 pages
Paper Trays, Standard
1
Recommended Monthly Page Volume
150 to 1500
Print Technology
Laser
Duplex Printing
Manual (driver support provided)
Warm-Up Time
As fast as 59 sec
Fonts And Typefaces
84 scalable TrueType fonts. Additional Font Solutions available at http://www.hp.com/go/laserjetfonts
Automatic Paper Sensor
No
Printer Management
HP Printer Assistant (UDC); HP Device Toolbox; HP JetAdvantage Security Manager
Print Colours
Yes
Top Key Features
35-sheet ADF; Energy Efficient; Strong Security; Dualband Wi-Fi
Target User And Print Volume
For teams up to 5 users; Prints up to 1,500 pages/month
Scanner Specifications
Scan Size (ADF), Maximum
215.9 x 355.6 mm
Scan File Format
JPG, RAW (BMP), PNG, TIFF, PDF
Color Scanning
Yes
Auto Document Feeder Capacity
Standard, 35 sheets
Scanner Type
Flatbed, ADF
Scan Size, Maximum
215.9 x 297 mm
Levels Of Grayscale
256
Scan Input Modes
Front-panel copy, fax; HP Scan software; and user application via TWAIN or WIA
Scan Size ADF (Minimum)
148.5 x 210 mm
Bit Depth
8-bit (mono); 24-bit (color)
Twain Version
Version 1.9 (Legacy OS); Version 2.1 (Windows 7 or higher)
Duplex ADF Scanning
No
Software Scan File Format
JPG, RAW (BMP), PNG, TIFF, PDF
Native Scan File Format
JPG; PDF
Scan Technology
Contact Image Sensor (CIS)
Scan Size, Maximum
8.5 x 11.7 in
Scan Size (ADF), Maximum
8.5 x 14 in
Scan Size ADF (Minimum)
5.85 x 8.27 in
Certification And Compliance
ENERGY STAR Certified
Yes
Energy Efficiency Compliance
EPEAT Silver; ENERGY STAR qualified
Electromagnetic Emission Standard
CISPR32:2012 & CISPR32:2015 /EN55032:2012 & EN55032:2015+AC:2016 – Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; FCC Title 47 CFR, Part 15 Class B/ICES-003, Issue 6
Safety Approvals And Requirements
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009+A2:2013; EN 60825-1:2014 / IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; CAN/CSA C22.2 No. 60950-1-07 2nd Ed.March 27, 2007 Compliance of IEC 60950-1 standard considers all country deviations according to the most recent IECEE CB Bulletin.; Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Telecom Compliance (Fax Capability)
Fax Telecom: ES 203 021; FCC Title 47 CFR, Part 68; Industry Canada CS03; NOM-151-SCTI-1999 (Mexico); PTC-200 (New Zealand); other Telecom approvals as required by individual countries. Wireless: EU RED 2014/53/EU; EN 301 489-1 V2.1.1 / EN 301 489-17: V3.1.1; EN 300 328: V2.1.1 / EN301 893 V2.1.1; FCC Title 47 CFR, Part 15 Subpart C & E / RSS 247 Issue 1, 2015 & RSS 102 Issue 5, 2015; IEC 62311:2007 / EN62311:2008
Environmental
Mercury Free
Certifications And Compliances
RCM (Australia), TUV and GS Mark (Germany), BSMI (Taiwan), CCC (China), BIS (India), KC (South Korea), SIRIM (Malaysia), Cambodia, Ukraine, EAC, Eastern European approvals, CE Marking, FCC, Energy Star, UL, Paraguay, Indonesia, Singapore, Philippines, etc.
Box Contents
What’s In The Box
HP Color LaserJet Pro MFP M183fw (7KW56A); Introductory HP LaserJet Color cartridges (~700 color composite (C/Y/M) page yield and ~800 page yield black); Installation guide; Power cord; USB cable; phone cord
Cable Included
Yes, 1 USB; Yes, 1 phone cord.
Dimensions
Dimensions (W X D X H)
420 x 380 x 341.2 mm
Maximum Dimensions (W X D X H)
435 x 435 x 343 mm
Minimum Dimensions (W X D X H)
16.5 x 15.0 x 13.4 in
Weights
Weight
16.3 kg
Connectivity And Communications
Modem
33.6 kbps
Connectivity, Standard
Hi-Speed USB 2.0 port; built-in Fast Ethernet 10/100 Base-TX network port, 802.11n 2.4/5GHz wireless, Fax port
Network Capabilities
Yes, via built-in 10/100 Base-TX Ethernet; authentication via 802.1X
Wireless Capability
Built-in 802.11 b/g/n; authentication via WEP, WPA/WPA2, or 802.1X; encryption via AES or TKIP; WPS; Wi-Fi Direct
Mobile Printing Capability
HP ePrint; Apple AirPrint™; Mobile Apps; Mopria™ Certified; Wi-Fi Direct Printing
Network Protocols, Supported
TCP/IP, IPv4, IPv6; Print: TCP-IP port 9100 Direct Mode, LPD (raw queue support only), Web Services Printing; Discovery: SLP, Bonjour, Web Services Discovery; IP Config: IPv4 (BootP, DHCP, AutoIP, Manual), IPv6
Plug And Play
Auto Wireless Connect
Geographic
Country Of Origin
Made in Vietnam
Fax Specifications
Auto Redial
Yes
Speed Dials, Maximum Number
Up to 120 numbers
Fax Memory
Up to 1300 pages
Polling
Yes (receive only)
Fax Forwarding
Yes
Broadcast Locations
119
Fax Delayed Sending
Yes
Faxing
Yes
Junk Fax Barrier
Yes, CSID matching only (Caller ID not supported)
Remote Retrieval
No
Auto Fax Reduction Supported
Yes
PC Interface Supported
Yes
Telephone Handset Supported
Yes
Distinctive Ring Detection Supported
Yes
Fax Telephone Mode Supported
Yes
Fax Memory
Up to 1300 pages
System Components
Control Panel
2-line LCD with 26 buttons (0~9 digitals, Star, Pound, Left, Right, OK, Cancel, Back, Main Setup, wireless, Color copy, Mono copy, Copy amount, Dark/light, Copy setup, Start Fax, Redial) and 3 indicator light (Ready, Error, Wireless)
Processors
Processor Speed
800 MHz
Scan Resolution
Scan Resolution, Hardware
Up to 300 x 300 dpi (color and mono, ADF); Up to 1200 x 1200 dpi (color and mono, flatbed)
Enhanced Scanning Resolution
Up to 300 x 300 dpi (ADF); up to 1200 x 1200 dpi (Flatbed)
Scan Resolution, Optical
Up to 300 dpi (color and mono, ADF); Up to 1200 dpi (color and mono, flatbed)
Memory
Memory
256 MB DDR, 128 MB Flash
Memory, Maximum
256 MB DDR, 128 MB Flash
Fax Speed
Fax Transmission Speed
33.6 kbps (maximum); 14.4 kbps (default)
Fax Transmission Speed
3 sec per page
Supported Printing Media
Media Sizes Supported
Letter(216 x 280); Legal(216 x 356); Executive(184 x 267); Oficio 8.5×13(216 x 330); 4 x 6(102 x 152); 5 x 8(127 x 203); A4(210 x 299); A5(148 x 210); A6(105×148); B5(JIS)(182 x 257); B6(JIS)(128 x 182); 10x15cm(100 x 150); Oficio 216x340mm(216 x 340); 16K 195x270mm(195×270); 16K 184x260mm(184×260); 16K 197x273mm(197×273); Postcard(JIS)(100 x 147); Double Postcard(JIS)(147 x 200); Envelope #10(105 x 241); Envelope Monarch(98 x 191); Envelope B5(176 x 250); Envelope C5(162 x 229); Envelope DL(110 x 220); A5-R(210 x 148)
Media Size, Tray 1
Letter(216 x 280); Legal(216 x 356); Executive(184 x 267); Oficio 8.5×13(216 x 330); 4 x 6(102 x 152); 5 x 8(127 x 203); A4(210 x 299); A5(148 x 210); A6(105×148); B5(JIS)(182 x 257); B6(JIS)(128 x 182); 10x15cm(100 x 150); Oficio 216x340mm(216 x 340); 16K 195x270mm(195×270); 16K 184x260mm(184×260); 16K 197x273mm(197×273); Postcard(JIS)(100 x 147); Double Postcard(JIS)(147 x 200); Envelope #10(105 x 241); Envelope Monarch(98 x 191); Envelope B5(176 x 250); Envelope C5(162 x 229); Envelope DL(110 x 220); A5-R(210 x 148)
Media Weight, Supported
60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver; 60 to 163 g/m² (Coated/Glossy, recommended), however up to 175 g/m² Postcards and 220 g/m² HP Glossy is allowed in the driver.
Media Types
Paper (bond, brochure, colored, glossy, heavy, letterhead, light, photo, plain, preprinted, prepunched, recycled, rough), transparencies, labels, envelopes, cardstock
Media Weight (Tray 1)
60 to 163 g/m² (Uncoated/Matte, recommended), however up to 175 g/m² Postcards and 200 g/m² HP Matte is allowed in the driver; 60 to 163 g/m² (Coated/Glossy, recommended), however up to 175 g/m² Postcards and 220 g/m² HP Glossy is allowed in the driver.
Media Weights, Supported, ADF
70 to 90 g/m²
Media Sizes, Custom
76 x 127 to 216 x 356 mm
Media Sizes Supported, Key
4 x 6 in; Letter; Legal; Envelopes
Media Sizes Supported, Key
10 x 15 cm; A4; Envelopes
Media Size (ADF)
A4; LTR; LGL
Media Weight, Supported
16 to 43 lb (Uncoated/Matte, recommended), however up to 47 lb Postcards and 53 lb HP Matte is allowed in the driver; 16 to 43 lb (Coated/Glossy, recommended), however up to 47 lb Postcards and 59 lb HP Glossy is allowed in the driver.
Media Sizes Supported
Letter(8.5 x 11); Legal(8.5 x 14); Executive(7.2 x 10.5); Oficio 8.5×13(8.5 x 13); 4 x 6(4 x 6); 5 x 8(5 x 8); A4(8.3 x 11.7); A5(5.8 x 8.3); A6(4.1 x 5.8); B5(JIS)(7.2 x 10.1); B6(JIS)(5 x 7.2); 10x15cm (3.9 x 5.9); Oficio 216×340 mm(8.5 x 13.4); 16K 195x270mm(7.6 x 10.6); 16K 184x260mm(7.2 x 10.2); 16K 197x273mm(7.8 x 10.7); Postcard (JIS)(3.9 x 5.8); Double Postcard(JIS)(5.8 x 7.9); Envelope #10(4.1 x 9.5); Envelope Monarch(3.9 x 7.5); Envelope B5(6.9 x 9.8); Envelope C5(6.4 x 9); Envelope DL(4.3 x 8.7); A5-R(8.3 x 5.8)
Media Weights, Supported ADF
18.5 to 24 lb
Media Sizes, Custom
3 x 5 to 8.5 x 14 in
System Requirements
Minimum System Requirements For Macintosh
Apple macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14) macOS Catalina(v10.15); 200MB HD; Internet required for download; USB
Minimum System Requirements
Windows 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer. Windows Vista : (32-bit), 2 GB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, CD-ROM/DVD drive or Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher.
Fax Resolution
Fax Resolution
Up to 300 x 300 dpi
Resolution (Black And White, Standard Mode)
203 x 98 dpi
Fax Resolution Black
Up to 203 x 196 dpi
Resolution (Black And White, Superfine Mode)
Up to 300 x 300 dpi
Resolution (Black Photo Grayscale)
300 x 300 dpi (halftone)
Software And Applications
Driver Updates
Latest supported operating systems and print drivers available at http://www.hp.com/support/ljM178MFP
Downloadable Software
From 123.hp.com/laserjet: HP Easy Start (Guided Software Install for Windows); From 123.hp.com: HP Smart for Windows and Mac; From HP.com for Windows OS, Full-solution software and drivers; Basic-solution software and drivers (with installer); Product Documentation and Support; For Mobile OS See “HP Mobile Printing” (http://www8.hp.com/us/en/ads/mobility/overview.html). From In-OS app stores: HP Smart; HP recommended printer drivers and software; From HP.com for printer administrators: Printer Administrator Resource Kit (Driver Configuration Utility, Driver Deployment Utility, Managed Printing Administrator); HP Universal Print Drivers (PCL6, PS); Linux/Unix Print Drivers; SAP (PS Print Drivers); HP Web JetAdmin Software (HP SNMP Proxy Agent); HP JetAdvantage Security Manager
Mac Compatible
Yes
Software Included
No CD (Software is not included In-Box), Downloadable Software only from hp.com, http://123.hp.com/laserjet or 123.hp.com
Supported Operating Systems
Compatible Operating Systems
Windows 10, 8.1, 8, 7: 32-bit or 64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer. Windows Vista : (32-bit only), 2 GB available hard disk space, Internet connection, USB port, Internet Explorer 8. Windows XP SP3 or higher (32-bit only): any Intel Pentium II, Celeron or 233 MHz compatible processor, 850 MB available hard disk space, Internet connection, USB port, Internet Explorer 8. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. Apple macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14)macOS Catalina(v10.15); 200MB HD; Internet required for download; USB. Linux (For more information, see https://developers.hp.com/hp-linux-imaging-and-printing). Unix (For more information, see http://www.hp.com)
Compatible Network Operating Systems
Windows 10, 8, 8.1, 7: 32-bit or 64-bit, 2 GB available hard disk space, Internet connection, USB port, Internet Explorer. Windows Server support is provided via the command line installer and supports Win Server 2008 R2 and higher. Apple macOS Sierra (v10.12) macOS High Sierra (v10.13) macOS Mojave (v10.14) macOS Catalina(v10.15); 200 MB HD; Internet required for download; USB. Linux (For more information, see https://developers.hp.com/hp-linux-imaging-and-printing). Unix (For more information, see http://www.hp.com)
Operating System (Supported Note)
Not supportingWindows XP (64-bit) and Windows Vista (64-bit); “Compatible Operating Systems” are not supported with INBOX software, but downloadable from online; Full solution software available only for Windows 7 and newer; Windows Server OS install driver only; Windows RT OS for Tablets (32 & 64-bit) uses a simplified HP print driver built into the RT OS; Linux systems use in-OS HPLIP software
Print Resolution
Print Quality Black (Normal)
Up to 600 x 600 dpi
Print Quality Black (Best)
Up to 600 x 600 dpi
Print Quality Color (Best)
Up to 600 x 600 dpi
Print Resolution Color (Normal)
Up to 600 x 600 dpi
Rack And Power Specifications
Typical Electricity Consumption (TEC) Number
ES: 0.203 kWh/Week; BA: 0.531 kWh/Week
Number Of Users
1-3 Users
Print Area
Maximum Print Area
206 x 346 mm
Right Margin (A4)
5 mm
Top Margin (A4)
5 mm
Bottom Margin (A4)
5 mm
Left Margin (A4)
5 mm
Digital Sender Specifications
File Formats, Supported
PDF; JPG
Advanced Features
Scanner Advanced Features
HP Scanning software; 35-sheet Automatic Document Feeder (ADF) for unattended scanning of multiple pages; automatic scan cropping; Scan to Google Drive/Drop box (PC); Scan to FTP(PC); Scan to Microsoft One Drive, Share Point (PC); Save as editable file (text, PDF)
Copier Smart Software Features
Up to 99 multiple copies, Reduce/Enlarge from 25 to 400%, Fit to page, Customizable copy presets (two or four pages to one page), Contrast (lighter/darker), ID copy, Optimize copy selection (with presets: autoselect, mixed, printed picture, text)
Printer Smart Software Features
Wireless direct printing, HP ePrint, Apple AirPrint™, Mopria-certified, HP Auto-On/Auto-Off technology, HP Smart App, Smart task shortcuts in HP Smart App, HP JetAdvantage Secure Print
Fax Smart Software Features
Auto redialing, delayed sending, fax forwarding, TAM interface, distinctive ring detection, cover page wizard (Software only), block fax, billing codes, poll receive, fax activity reports, dial prefix setting
Energy Savings Feature Technology
HP Auto-On/Auto-Off Technology; Instant-on Technology
Copier Specifications
Copies, Maximum
Up to 99 copies
Copy Reduce / Enlarge Settings
25 to 400%
Copier Scaling (ADF)
25 to 400%
Copier Settings
Number of copies; Reduce/Enlarge; Lighter/Darker; Optimize; Paper; Multi-page copy; Collation; Draft Mode; Image Adjustment; Set as New Defaults; Restore Defaults
Security Management
Security Management
Embedded Web Server: password-protection, secure browsing via SSL/TLS; Network: enable/disable network ports and features, SNMPv1 community password change; HP ePrint: HTTPS with certificate validation, HTTP Basic Access Authentication; Firewall and ACL; SNMPv3
Multimedia And Input Devices
Fax Phone TAM Interface Supported
Yes
Resolution
1200 dpi optical sensor
Appearance

Colour
White
Product Description
Product Description Disclaimer
Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
More at:http://www.hp.com/go/learnaboutsupplies
