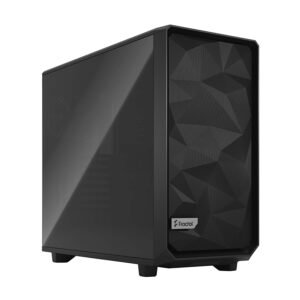

Fractal Design Meshify 2 Mid Tower Black Cabinet FD-C-MES2A-01
The Meshify 2 is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.
The Meshify 2 is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.
Generous Space
Meshify 2 roomy internal layout easily accommodates E-ATX motherboards up to 285 mm wide.
Extremely Flexible
Transformable interior design utilizing a movable wall for enhancing custom builds.
Smooth and Sturdy
The Meshify 2 is remarkably robust and comes with an angular asymmetrical style front mesh.
Flexible Dual-layout Design
There more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
Detachable Front Filter
The new front nylon filter can easily be removed from the hinged mesh panel for increased airflow.
Superlative Storage
Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts. (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)
Open and Interchangeable
Remove the entire top to build and route with zero hindrance. Swap in the ventilated panel to add three filtered fan positions.
Smooth Airflow
Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
Main Features
Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
Includes 6 HDD/SSD trays, 2 SSD brackets, and 1 universal Multibrackets for mounting up to 10 drives
Expandable to 11 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 18 drives in Storage Layout
New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
New front nylon filter that can be removed for increased airflow
New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
Tool-less, top-latching side panels allow quick access while preventing accidental drops
Specification :
User Controls
User Controls Power
Reset
Storage
Internal Expansion Bays 2 x 2.5‰Û_
6 x 2.5‰Û_/3.5‰Û_
Expansion
Expansion Slots 7 x Full Height
2 x Vertical
Interfaces/Ports
USB Ports 1 x USB 3.1 Type-C
2 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Electrical
Cooling System Front: Supports 3 x 140mm or 120mm fans (2 x 140mm fans included)
Top: Supports 3 x 140mm or 120mm fans
Rear: Supports 1 x 140mm or 120mm fan (140mm fan included)
Bottom: Supports 2 x 140mm or 120mm fans
Power Supply ATX Power Supply supported
Physical
Form Factor Mid Tower Case
Case Colour Black with Solid Side Panel
Material Steel
Motherboard Compatibility E-ATX
ATX
MicroATX
Mini-ITX
In The Box Meshify 2 Case
User Manual
Large Accessory Box (HDD Trays)
Small Accessory Box
Width 240 mm
Depth 542 mm
Height 474 mm
Weight 10.1 kg
Warranty 2 Years
Key Features
Firewire No
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan No LED
Internal 3.5‰Û_ Bay 6
Internal 2.5‰Û_ Bay 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 185 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Solid
GPU Length 315 mm
PSU Depth 250 mm
Front Audio Type Separate
Number of Fans 3 fan(s)
LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX
Item Details
Manufacturer Fractal Design
Manufacturer Code FD-C-MES2A-01
