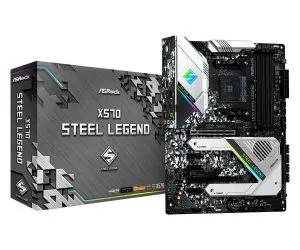

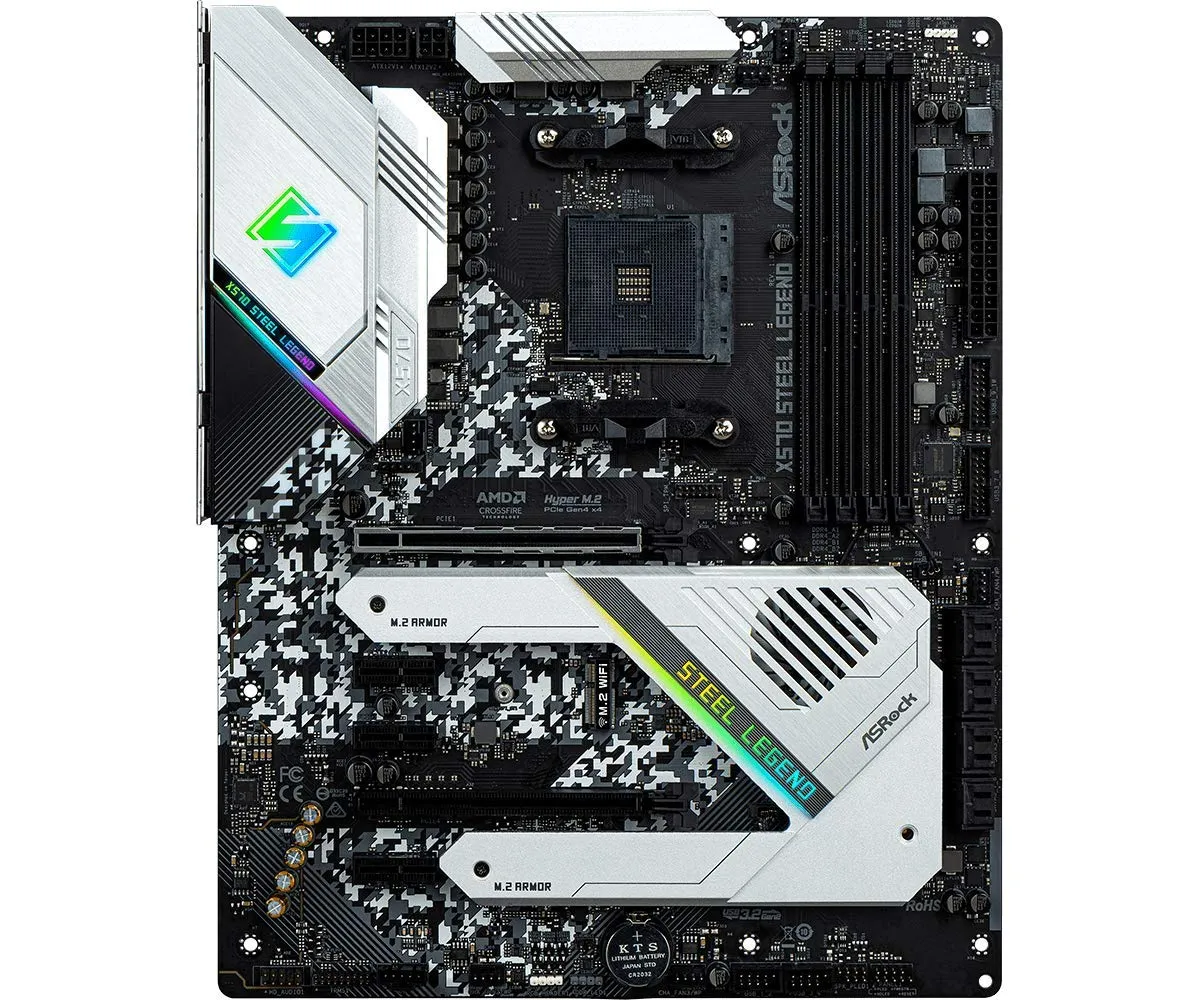

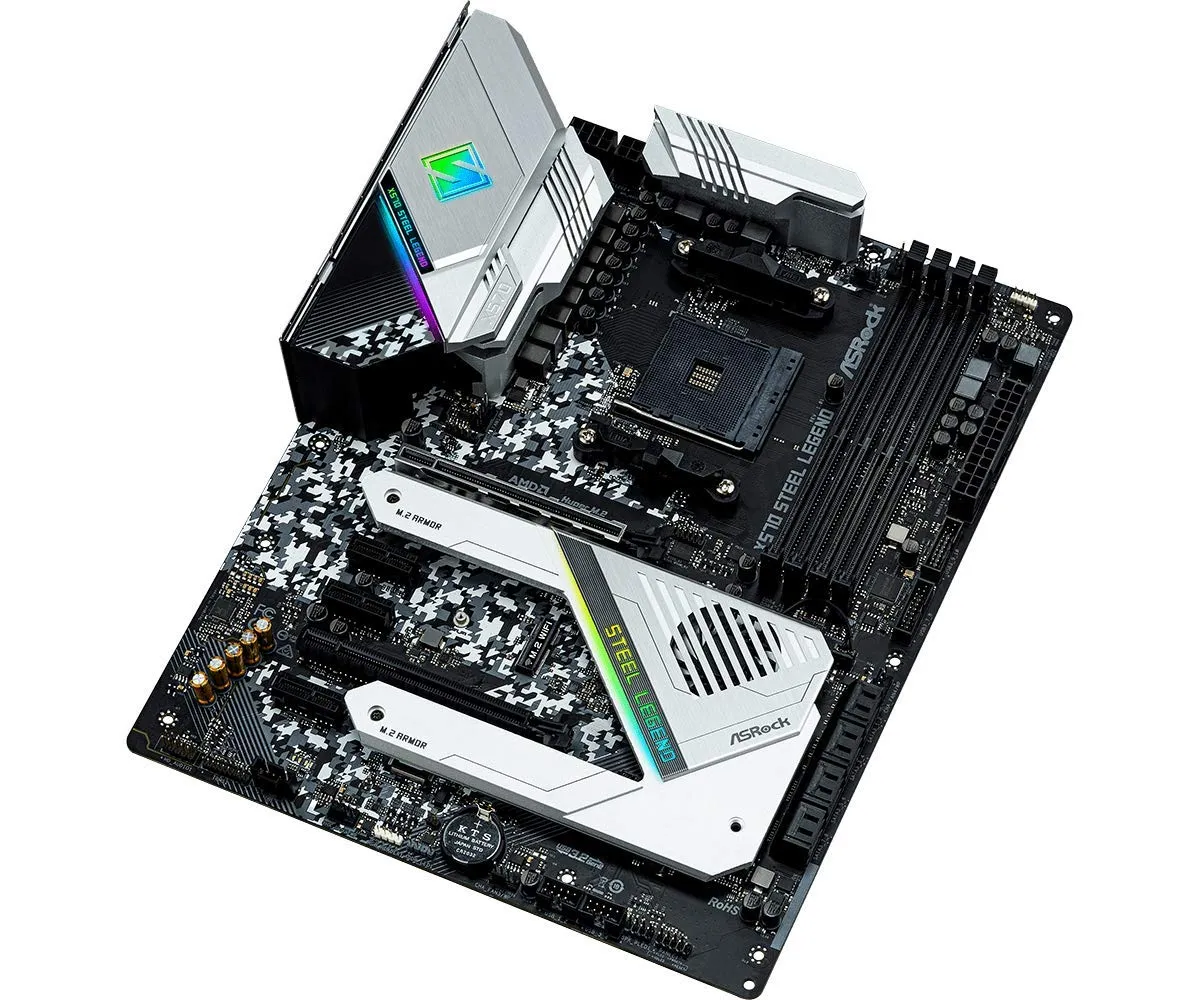

ASRock X570 Steel Legend X570 AMD AM4 Motherboard

Supports AMD AM4 Socket Ryzen 2000 and 3000 Series processors
10 Power Phase Design
Supports DDR4 4666+ (OC)
2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
AMD Quad CrossFireX and CrossFireX
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)

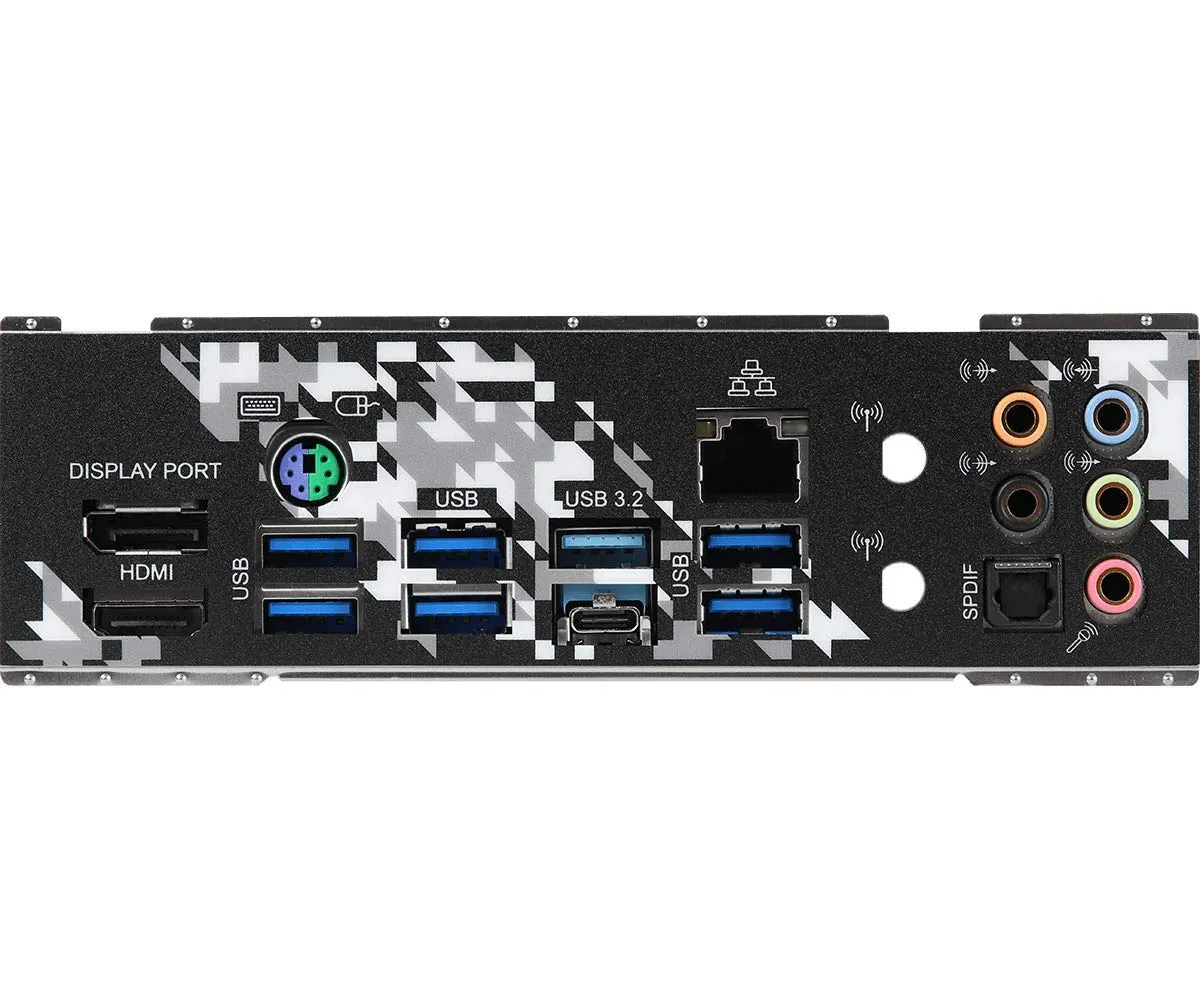

2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
Intel Gigabit LAN
ASRock Polychrome SYNC

Specification :

Unique Feature ASRock USB 3.2 Gen2
ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
XXL Aluminum Alloy Heatsink
Premium 60A Power Choke
50A Dr.MOS
Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
Combo Caps (Nichicon 12K Black Caps)
Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
I/O Armor
Matte Black PCB
High Density Glass Fabric PCB
2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
Intersil Digital PWM
10 Power Phase design
Chipset AMD X570
Memory Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*
Max. capacity of system memory: 128GB**
15ë_ Gold Contact in DIMM Slots
