AMD Ryzen Threadripper 3960X Processor

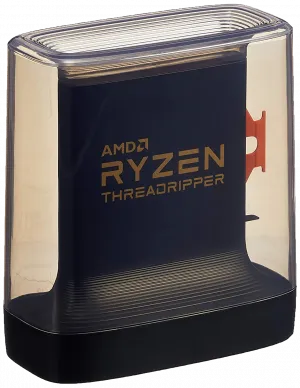

Boxed Processor
Product Family
AMD RyzenProcessors
Product Line
AMD RyzenThreadripperProcessors
# of CPU Cores
24
# of Threads
48
Max. Boost Clock
Up to 4.5GHz
Base Clock
3.8GHz
L1 Cache
1.5MB
L2 Cache
12MB
L3 Cache
128MB
Default TDP
280W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
sTRX4
Thermal Solution (PIB)
Not included
Max. Operating Temperature (Tjmax)
95C
Launch Date
11/25/2019
*OS Support
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
PCI ExpressVersion
PCIe 4.0
System Memory Type
DDR4
Memory Channels
4
System Memory Specification
Up to 3200MHz
Product IDs
Product ID Boxed
100-100000010WOF
Product ID Tray
100-000000010
Key Features
Supported Technologies
AMD “Zen” Core Architecture
AMD RyzenMaster Utility
